General Information
CFW-11 RB | 2-5
NOTE!
It is not necessary to add a current transformer (CT) for output short circuit protection to the ground
since each CFW-11 RB module has its own internal protection.
A
B
C
D
E
H
I
J
H
G
F
A - Keypad (HMI)
B - Control rack cover
C - CC11 control board
D - Flash memory module MMF-03
E - Control accessory module (refer to the Section 7.2
ACCESSORIES on page 7-2)
F - Bottom front cover
G - Heatsink fan
H - Mounting supports (for through the wall mounting)
I - Hoisting eye
J - Rear part of the converter (external part for flange mounting)

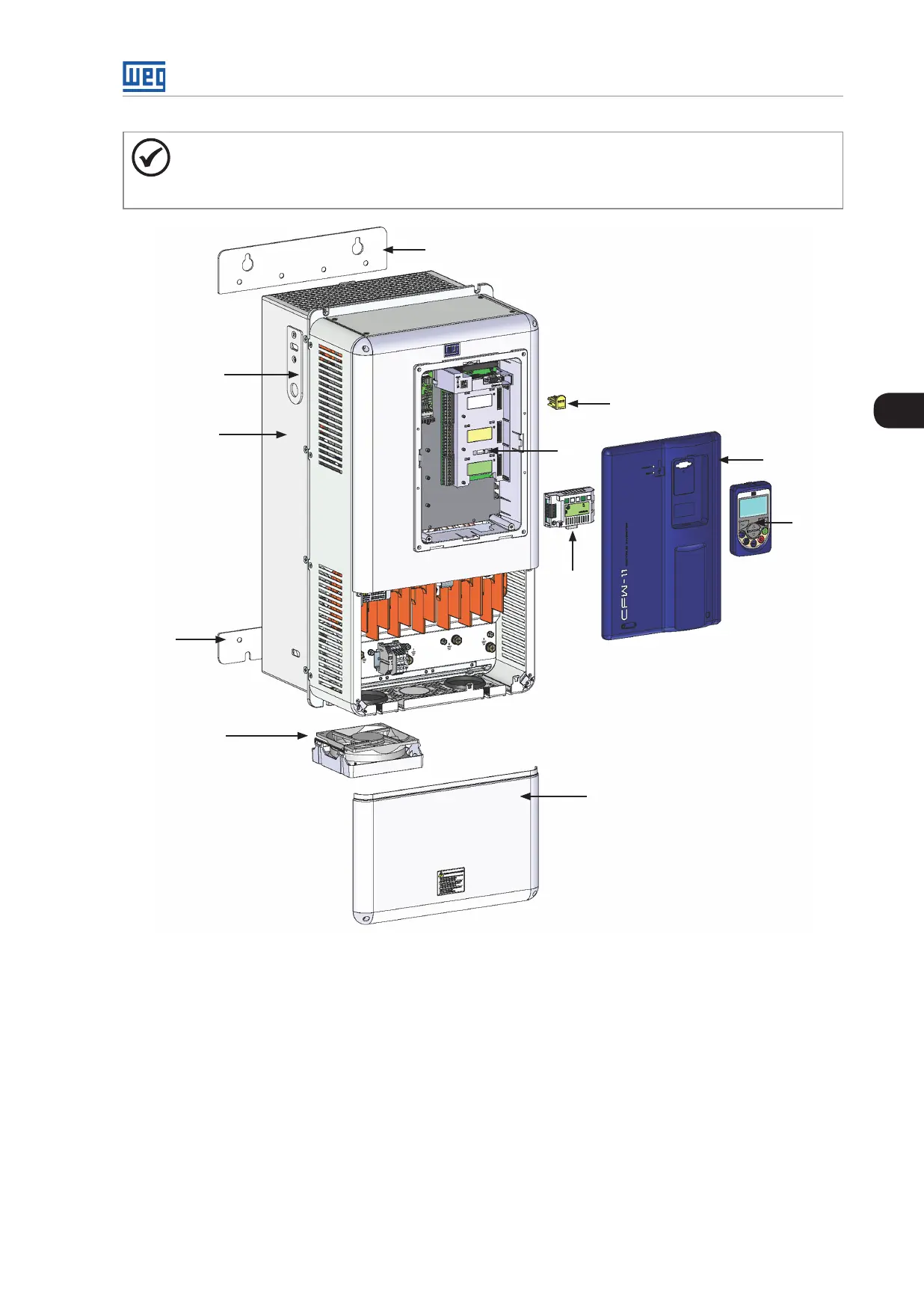

Figure 2.2: Main components of the CFW-11 RB - frame size E
