Keypad and Display
4
4-2 | CFW-11
The battery life expectancy is of approximately 10 years. When necessary, replace the battery by another of the
CR2032 type.
1 2 3
Cover
Cover for battery access
Press the cover and rotate it
counterclockwise
Remove the cover
4 5 6
Remove the battery with the
help of a screwdriver positioned
in the right side
HMI without the battery
Install the new battery positioning it rst at
the left side
7 8
Press the battery for its insertion
Put the cover back and rotate it clockwise

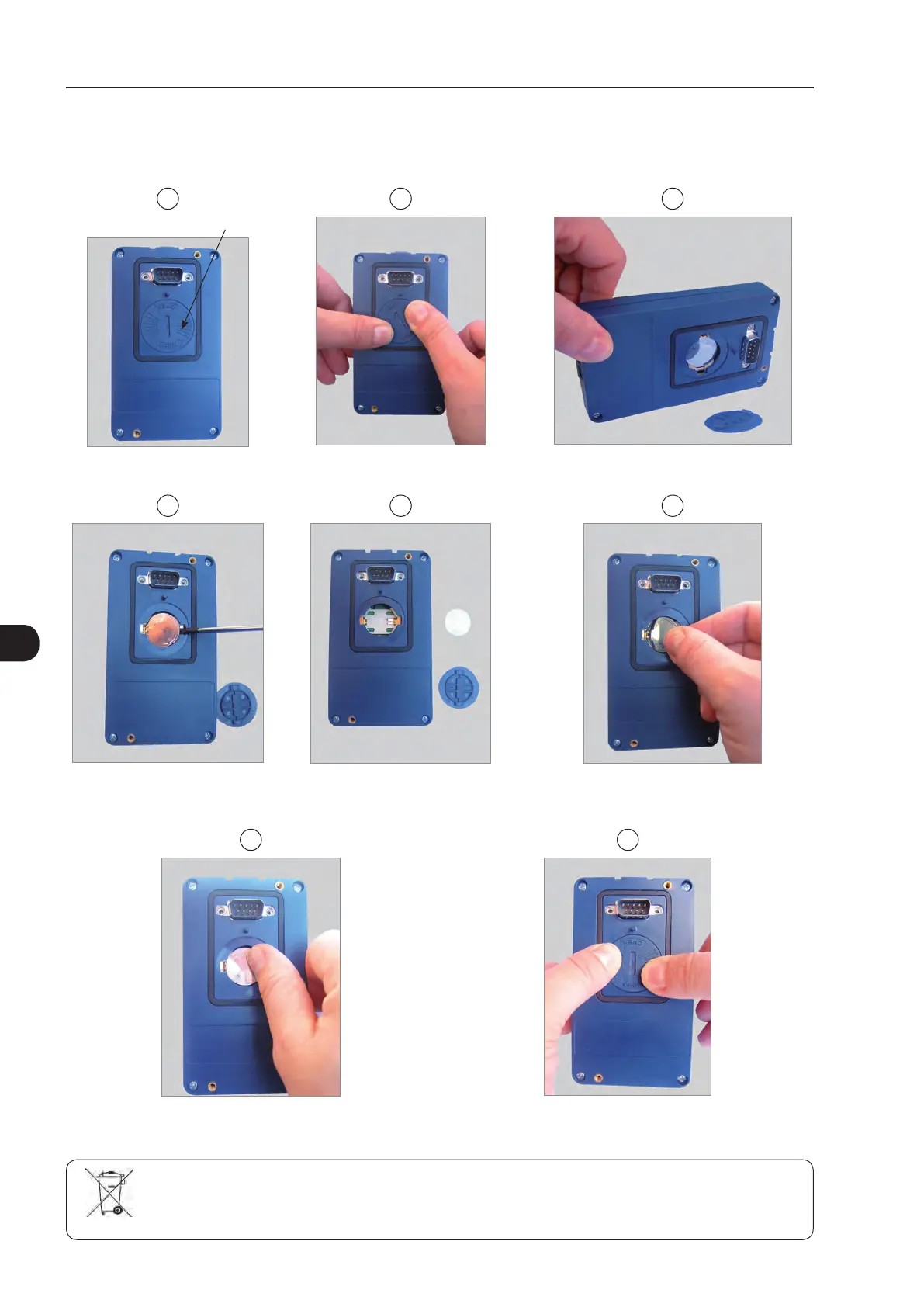

Figure 4.2 - HMI battery replacement
NOTE!
At the end of the battery useful life, please do not discard batteries in your waste container, but use
a battery disposal site.
