WEG CFW08 Vector inverter User Manual

48
INSTALLATION AND CONNECTION

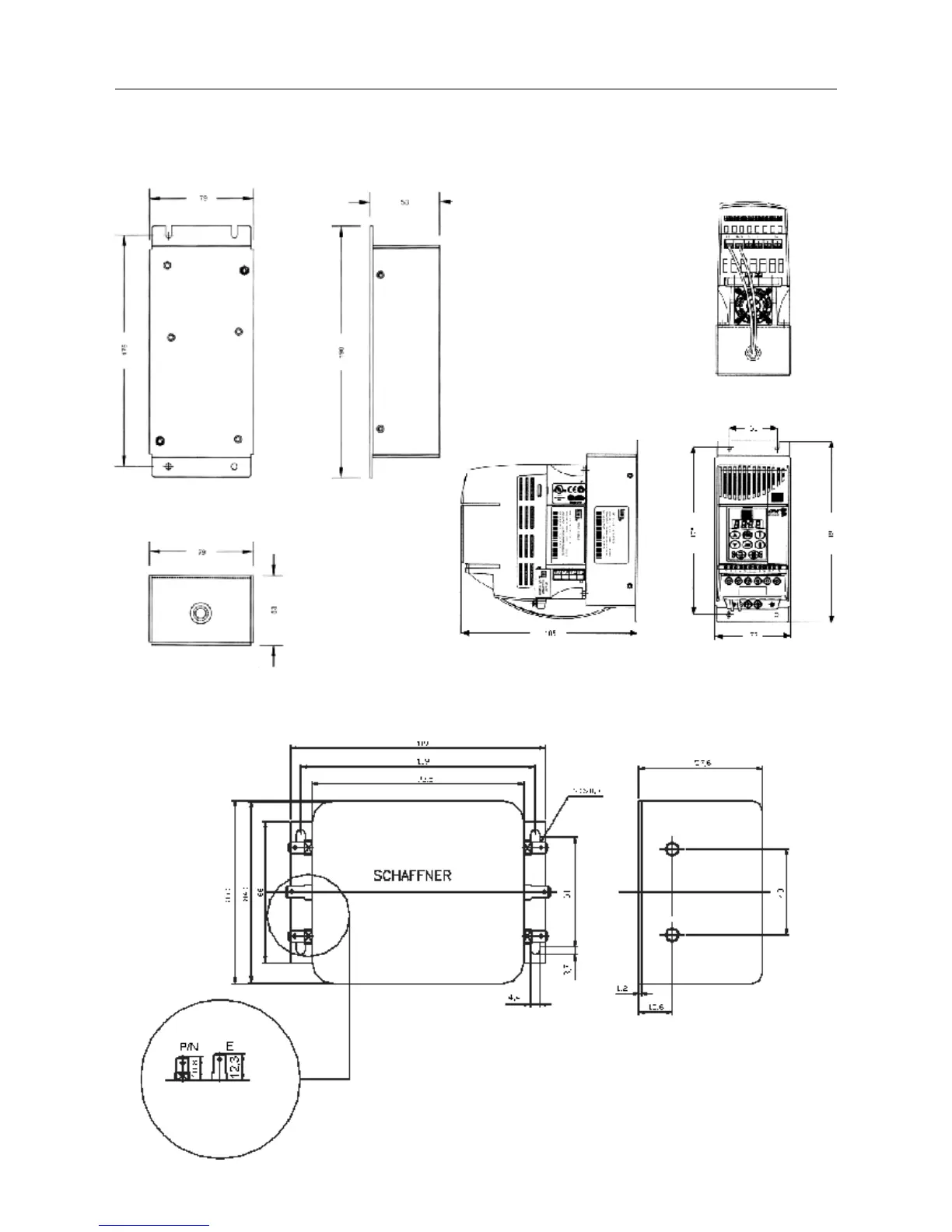

Figure 3.17 - FS6007-16-06 external filter drawing
Figure 3.16 - FEX1-CFW08 and FEX2-CFW08 footprint filter drawing
Front View Lateral Right View
Bottom View
Terminal block for
flexible and rigid cable
of 4mm
2
or AWG 10.
Max. torque: 0.8Nm
(a) Footprint Filter (b) Footprint Filter and Inverter
Bottom View
Front ViewLateral Right View
Type /05
Fast-on terminal 6.3 x 0.8mm

WEG CFW08 Vector inverter Specifications

General

Frequency Range	0 to 300 Hz
Overload Capacity	150% for 60 seconds
Protection Degree	IP20
Communication	RS485, Modbus RTU
Voltage	200 V to 240 V
Control Mode	Vector Control
Ambient Temperature	-10°C to 50°C
Input Frequency	50 Hz / 60 Hz
Output Voltage	0 to input voltage
Braking	Dynamic braking resistor (optional)
Protection Features	Overcurrent, overvoltage, undervoltage, overtemperature
Operating Temperature	-10°C to 50°C
Cooling Method	Forced air cooling (fan)
Humidity	5% to 90% non-condensing
