49
INSTALLATION AND CONNECTION

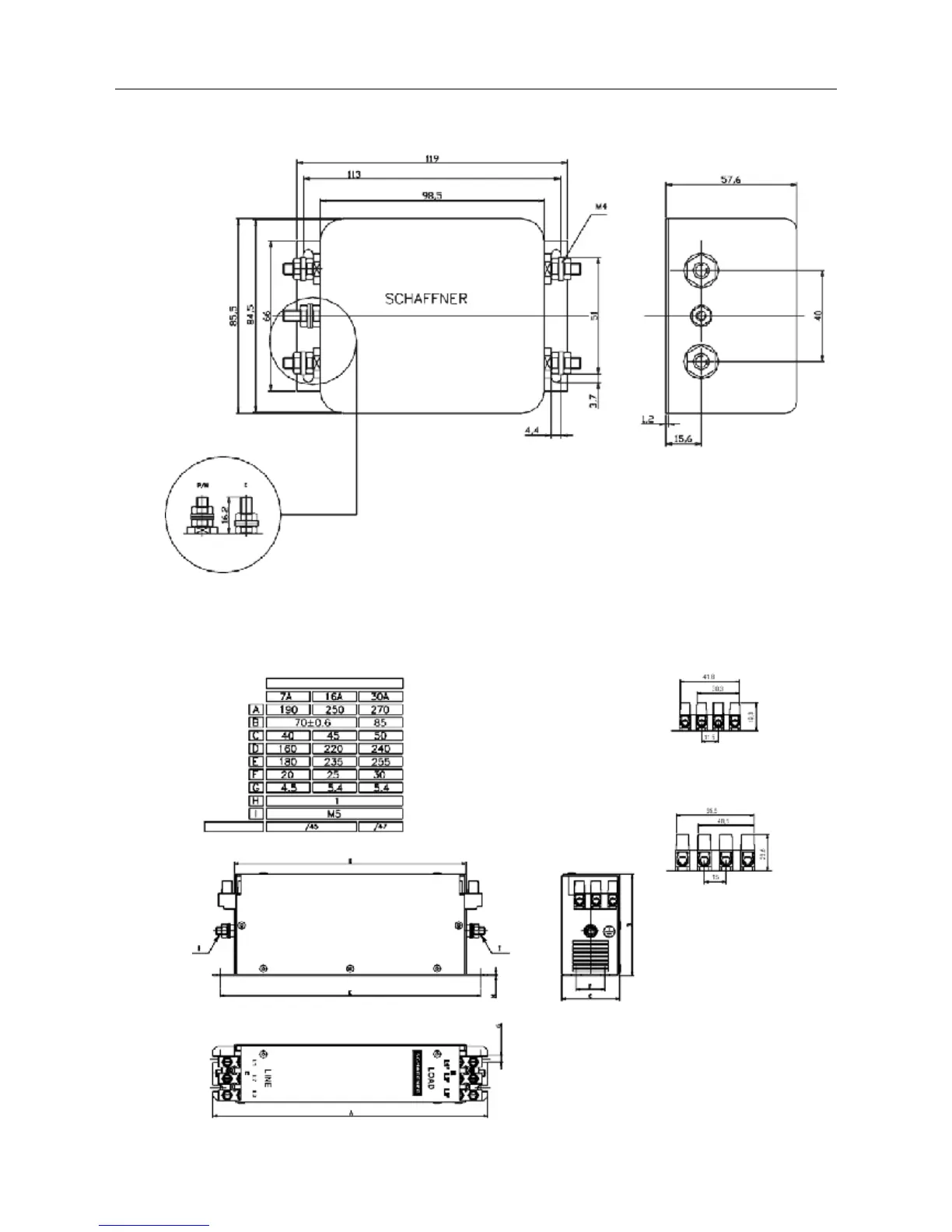

Figure 3.19 - FS3258-xx-xx external filter drawing
Type/45
Terminal block for 6mm
2
solid cable,
4mm
2
flexible cable AWG 12.
Top View
Side View
Connector
Rated Current
Type/47
Terminal block for 16mm
2
solid wires,
10mm
2
flexible wires AWG 8.
Mechanical Data
Front View
Figure 3.18 - FS6007-25-08 and FS6007-36-08 external filter drawing
Bolt type 08=M4
