Connectors
PLC300 | 3-1
3 CONNECTORS
a)
XC3 S1 XC6
XC4
XC1
XC8
XC7
XC2
XC1 – digital and analog inputs.
XC2 – digital, PWM and analog outputs.
XC3 – encoder RS-232 and RS-485 input.
XC4 – Ethernet.
XC5 – USB.
XC6 – CAN.
XC7 – SD card.
XC8 – Power input 24 Vdc.
S1 – Turn on/off RS-485 termination resistors.
b)
Battery
Back
display
Back
key
XC11
Slot1
XC12
Slot2
XC5
XC11 – expansion slot 1
XC12 – expansion slot 2

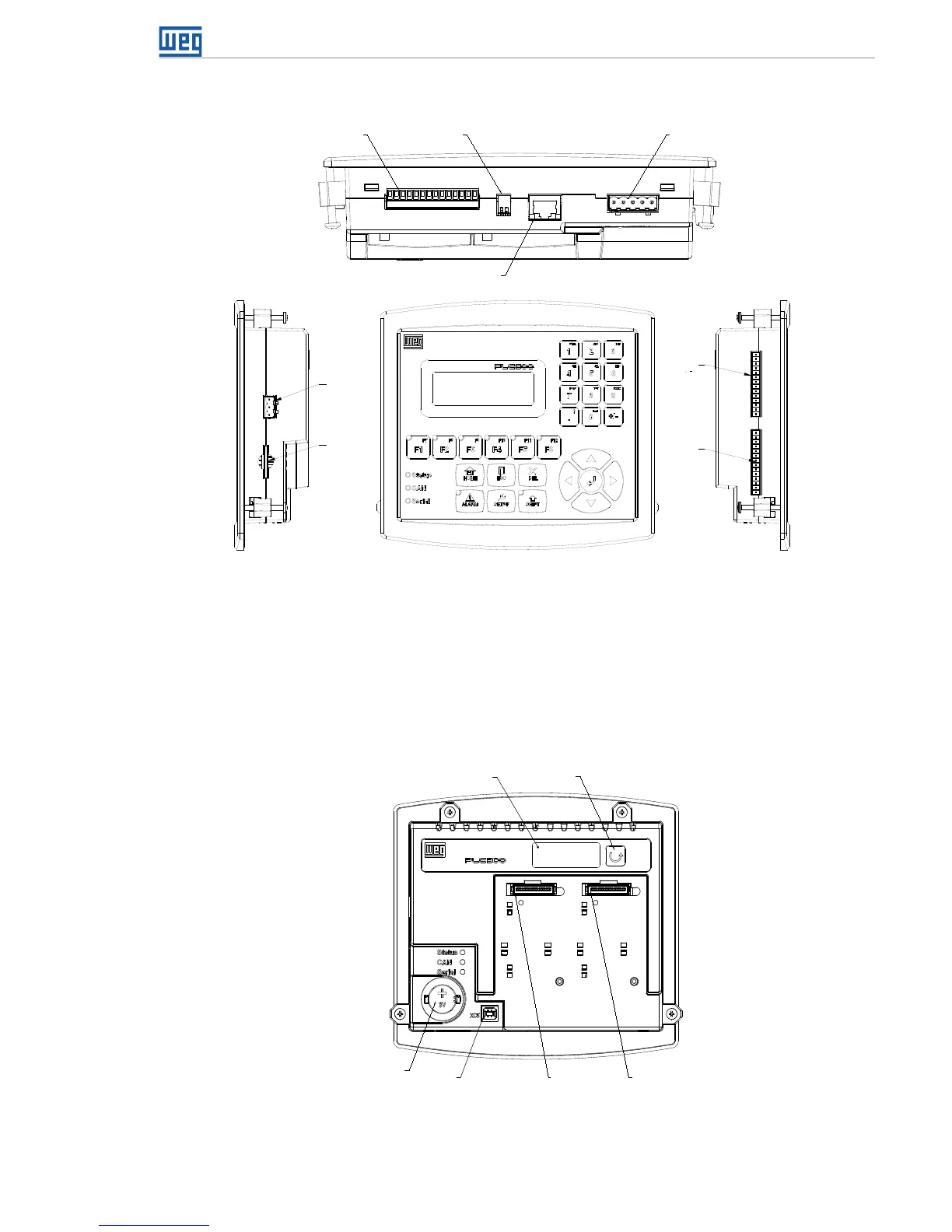

Figure 3.1 (a) and (b) - Position of the connectors
