Wegener iPump 562 - Signal Quality Screen; Current Quality Screen; Figure 3.22: Ipump 562 OSD Unit Status; Figure 3.23: Ipump 562 OSD Signal Quality Status

Operation
32 800092-01 Rev. A www.wegener.com

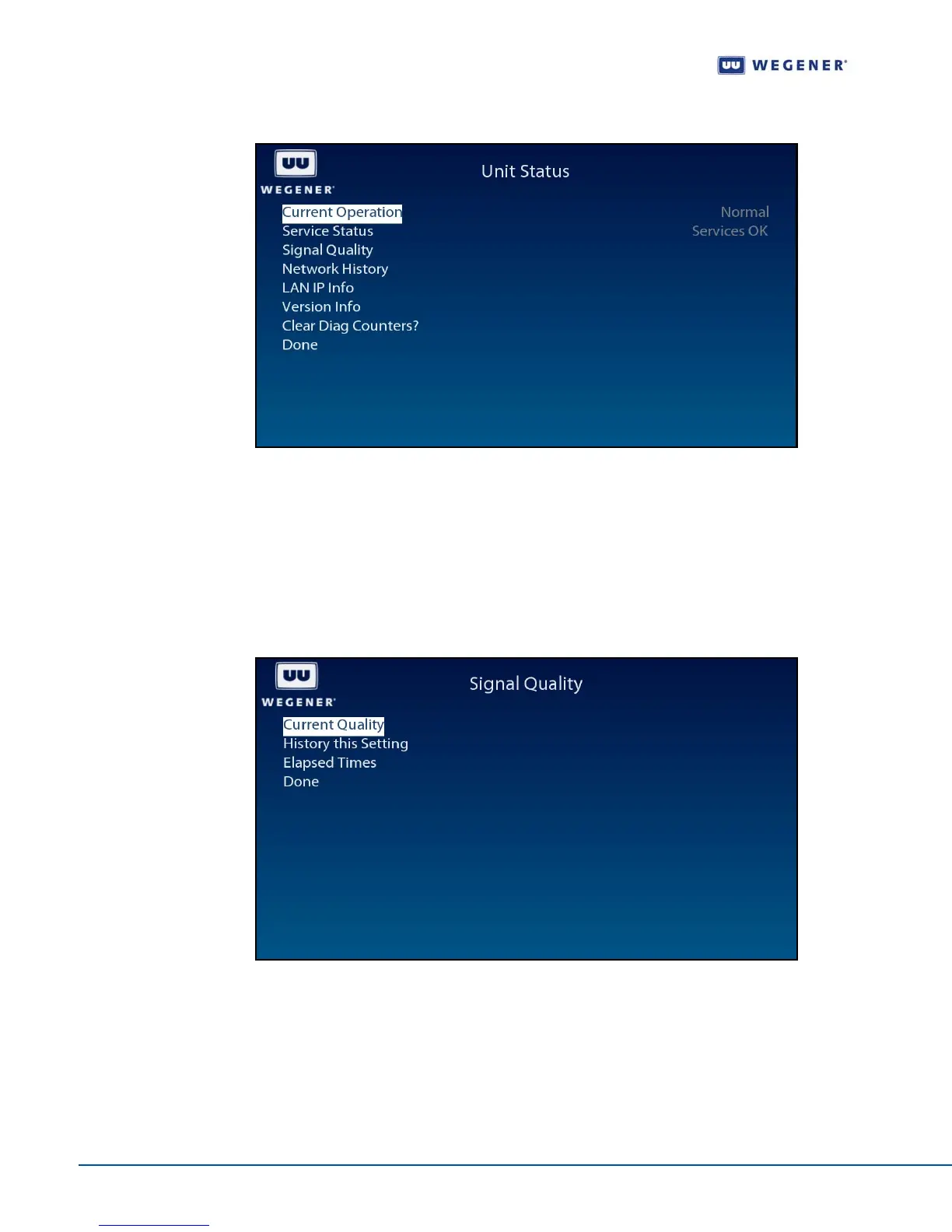

Figure 3.22: iPump 562 OSD Unit Status
Signal Quality screen
Use following steps to display the Signal Quality screen on the OSD menu:
1. Navigate to the Unit Status screen, see Unit Status screen on page 31.
2. Press the down arrow button to select Signal Quality Status.
3. View the details as shown in Figure 3.23.
Figure 3.23: iPump 562 OSD Signal Quality Status
Current Quality screen
Use following steps to display the Current Quality screen on the OSD menu:
1. Navigate to the Signal Quality screen, see Signal Quality screen on page 32.
