WEILER E1250
1-22
General Information
1
GENERATOR (Optional)
1. 9kW Generator - under cover
2. Generator Motor - under cover
3. Generator Flow Control Valve - used to set motor to
3600RPM.
4. Main Breaker - 30 Amp
5. Outlet Breakers - 20 Amp each
6. 110V Outlet
HYDRAULIC TANK
1. Hydraulic Return Filter - Charge Loop
2. Hydraulic Return Filter - Accessory Loop
3. Hydraulic Oil Fill Neck and Breather
4. Hydraulic Oil Level Sight Gauge - Located on the rear of the
tank, inside the pump door.

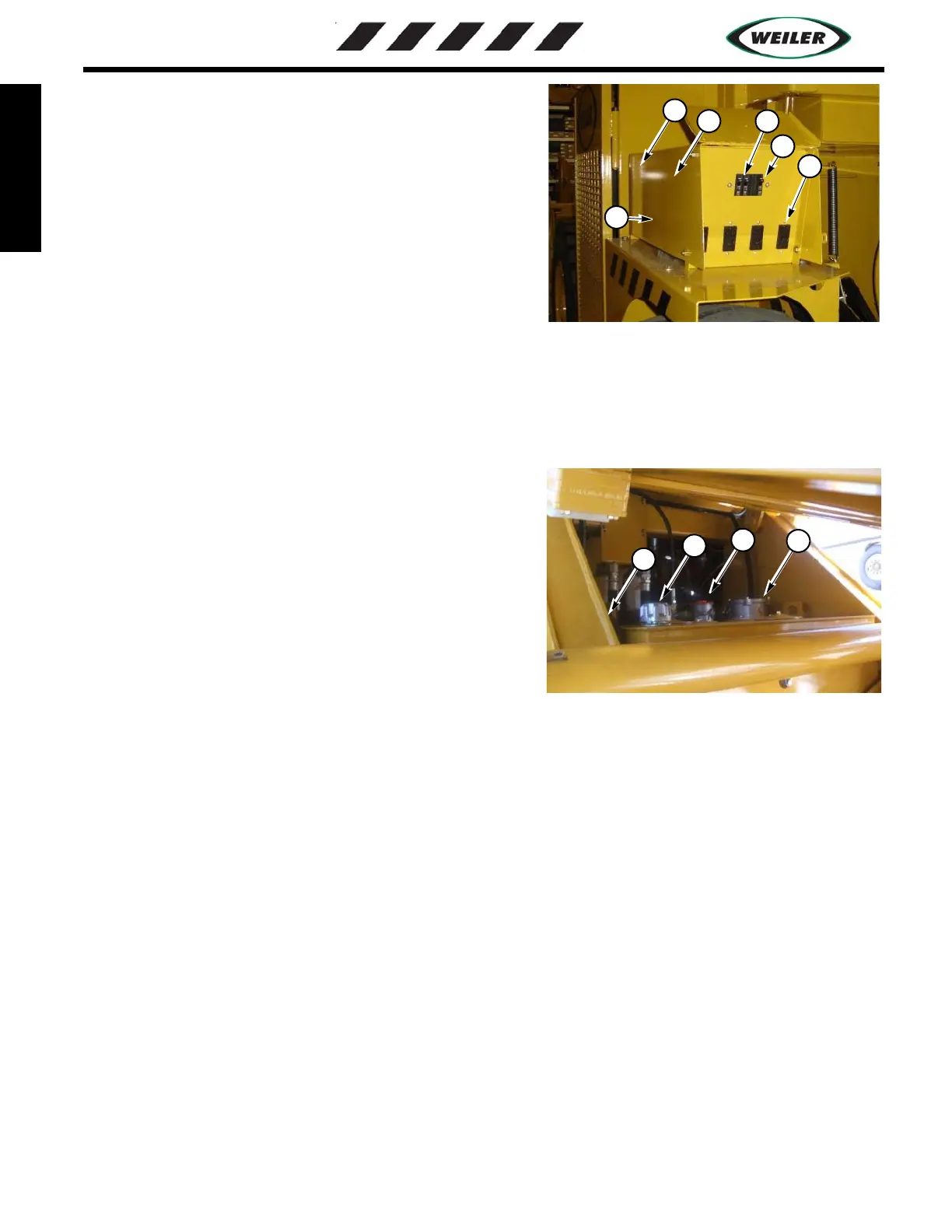

Generator Picture w/o cover
1
2
3
4
5
6
Hydraulic Tank
1
2
3
4
