Operation
2
WEILER E1250
LOADING CONVEYOR
In the event of a stalled loading conveyor use the following steps to remove material to free the slats.
1. Run the conveyor in reverse to remove material from the chute of the conveyor. It may be necessary to open the
conveyor clean out door to allow material to discharge from the chute onto the ground. If this does not free the
conveyor proceede to step 2.

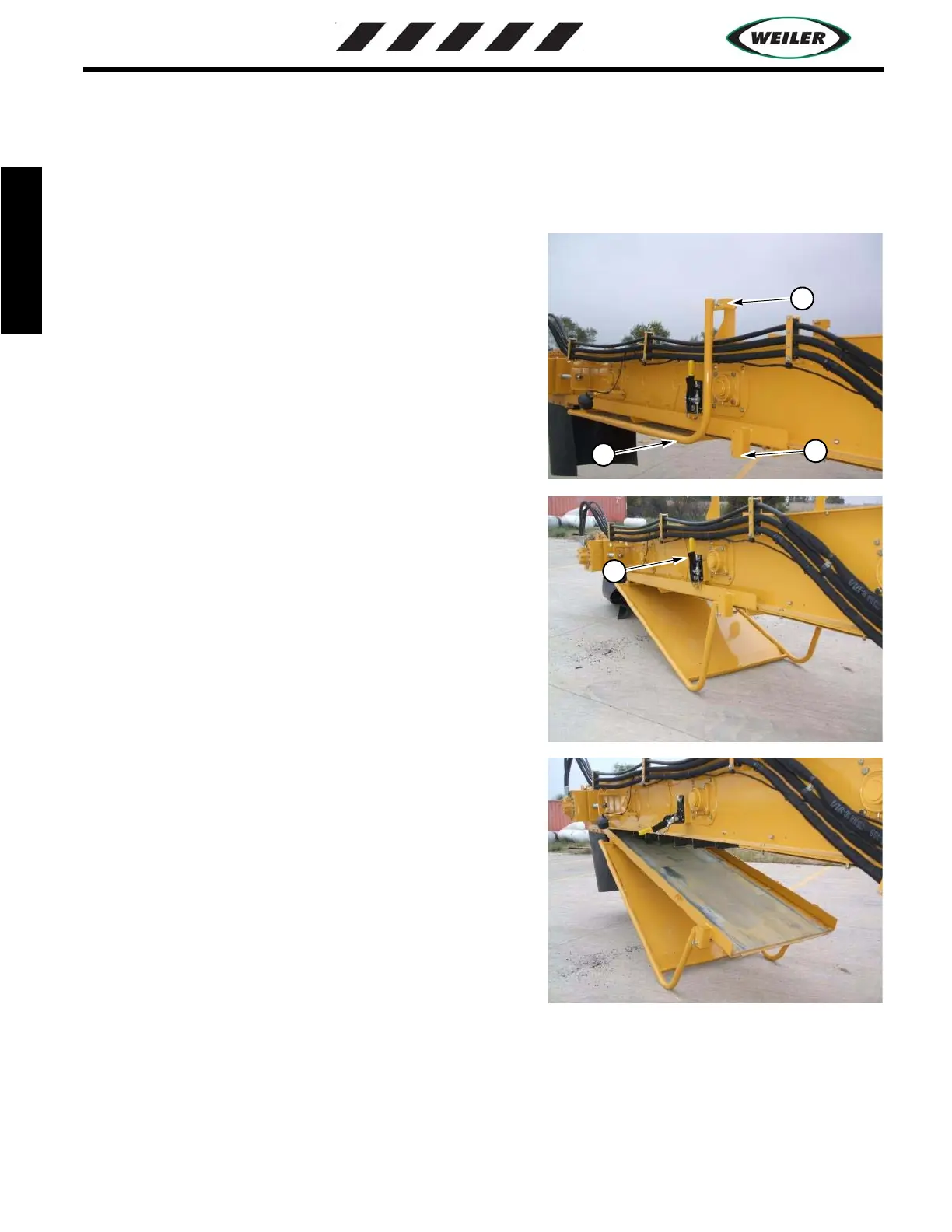

2. Open conveyor clean out door, as described in the following
steps.
a. Move the conveyor to a postition allowing the
cleanout door skid tubes (1) to be lowered to the
down position.
b. Lower the conveyor skid to the bottom set of holes
(2) and place pin (3) in each side.
c. Lower the conveyor until skid tubes rest on the
ground.
d. Release cleanout door latches (4).
e. Raise the conveyor until the cleanout door opens
enough to allow material to drop out.
3. Run the conveyor in the forward direction to move material out
of the cleanout door.
4. Shut off the engine and ground disconnect and clean the
material off of the drop out door to allow it to shut tightly. Be
certain to get all material cleaned off of the sealing edges or the
door will not fully shut.
