ROTARY INDEXING TABLE CONTROLLER
EF2...B
OPERATION / DESCRIPTION OF WEISS SOFTWARE | 8.3 Machine configuration
I/O configuration PROFINET EF1
With the EF1 compatible I/O configuration, the interfaces are compatible to the WEISS rotary indexing table control-
ler EF1.
➱ Inputs and outputs are assigned to the control functions which are defined as default.
➱ Individual assignments cannot be deleted or changed.
➱ The display of control functions is informative.

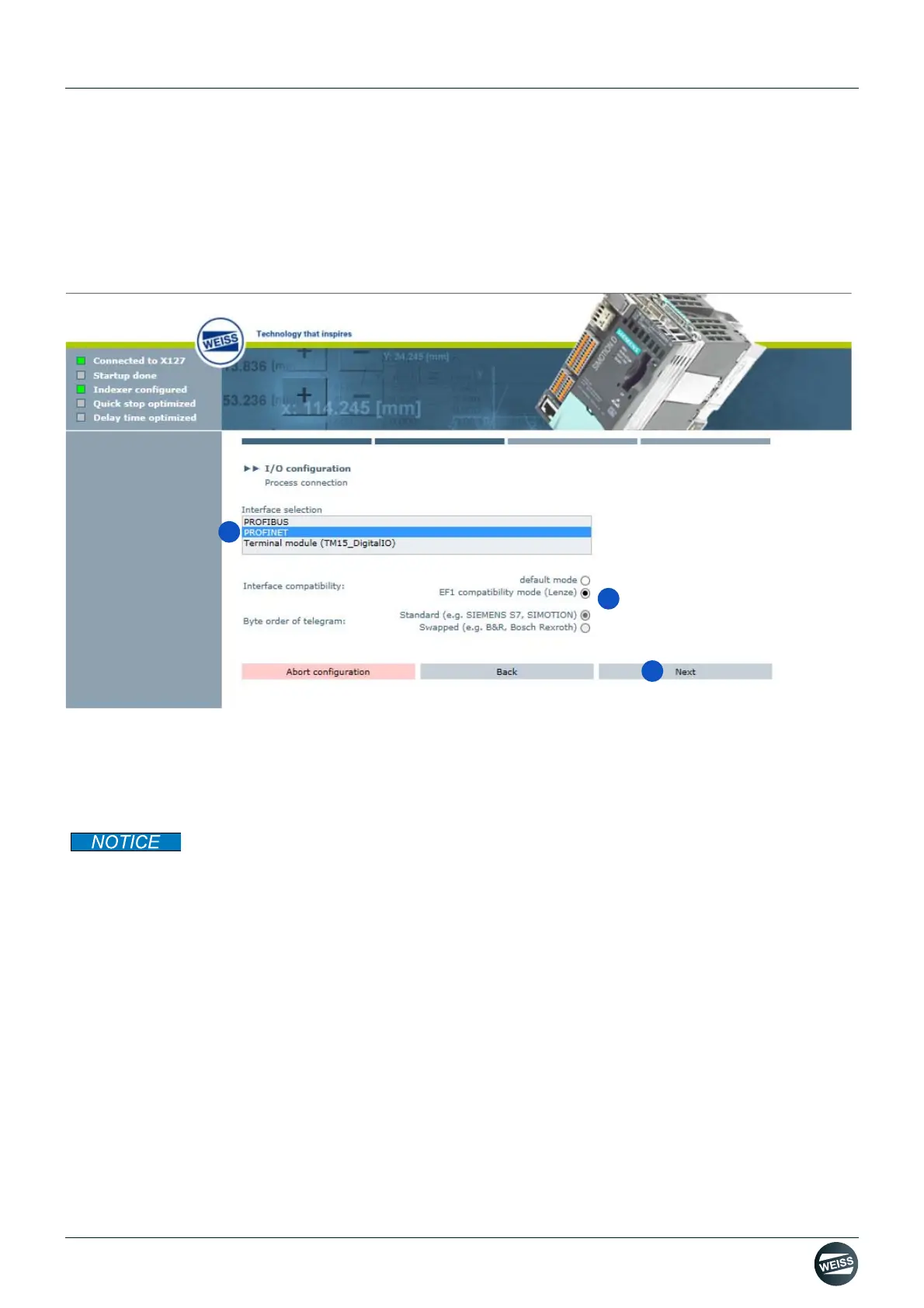

1. Select PROFINET interface.
2. Select EF1 compatibility mode.
3. Click the Next button.
➱ The window for entering the PROFINET settings is opened.
The station name has to match the name that was previously declared in the higher-level control-
ler!
Rules for assigning names:
• Only lowercase letters
• Letters a-z and numbers 0-9 are permitted
• Special characters are not allowed: !"§$%&/()=?`*'_:;#+<>|~[]{}
• Spaces are not allowed either
• The name can have a maximum total length of 240 characters
• Reserved names which cannot be used:
"port-xyz" or "port-xyz-abcde…"
• The engineering system replaces invalid characters with an "x".
