Manual R06-2016 119 / 172
ROTARY INDEXING TABLE CONTROLLER
EF2...B
OPERATION / DESCRIPTION OF WEISS SOFTWARE | 8.5 Operation and Monitoring
8.5.3 Manual operation

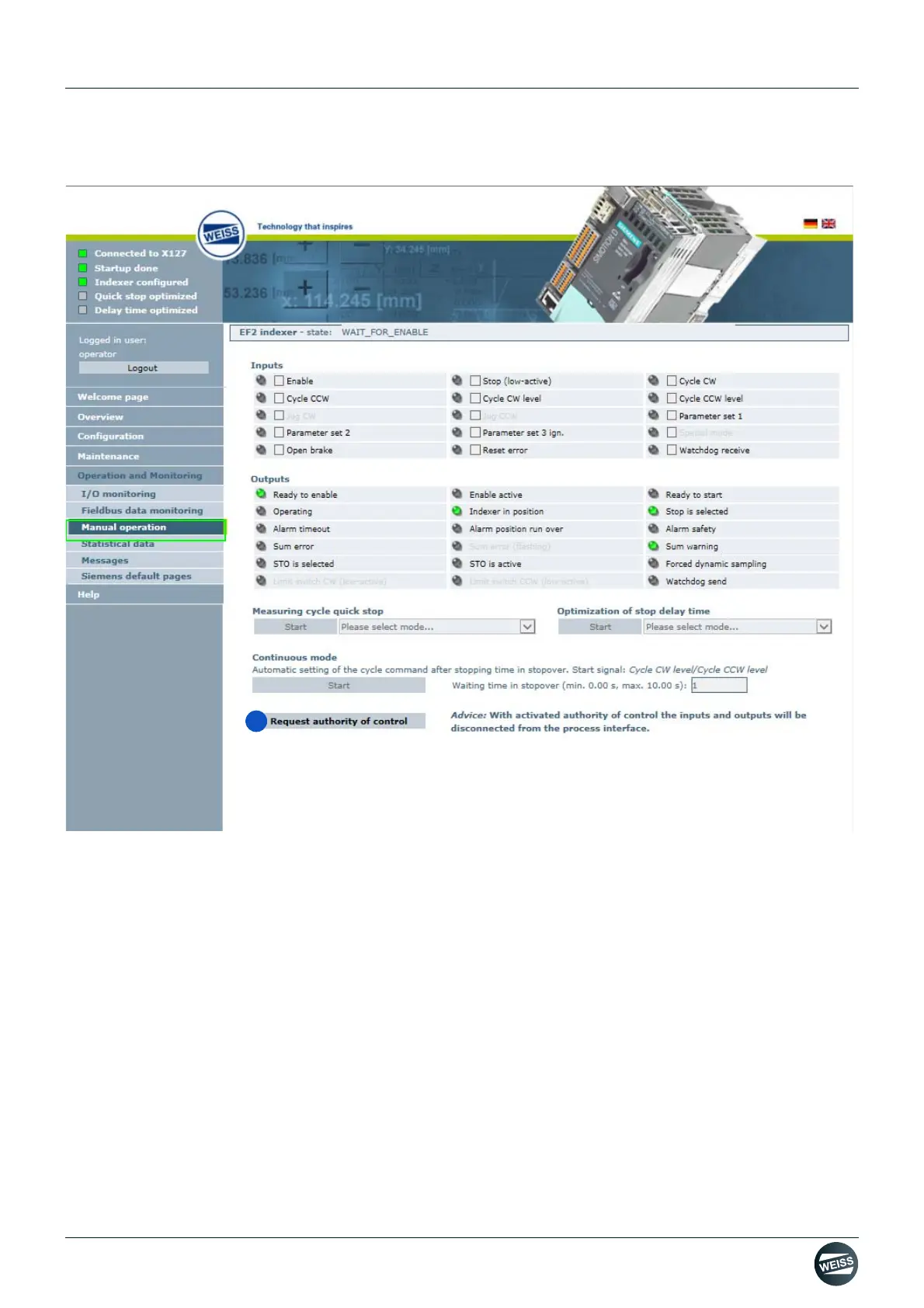

Fig. 70: Manual operation: Start screen
In the "Manual operation" section, a rotary indexing table - which is decoupled from a superordinate controller - can
be operated manually by the following actions:
• Setting inputs
• Measuring cycle quick stop
• Optimization of stop delay time
• Continuous mode
In order to operate a rotary indexing table manually, it is necessary to request authority of control (1).
"Authority of control active" is signalled by a black-yellow frame of the user screen.
