WEISS EF2 Series - Manual Operation: Measuring Cycle Quick Stop

Manual R06-2016122 / 172
ROTARY INDEXING TABLE CONTROLLER EF2...B
OPERATION / DESCRIPTION OF WEISS SOFTWARE | 8.5 Operation and Monitoring
8.5.3.3 Manual operation: Measuring cycle quick stop
 Condition for manual operation: The control authority has to be activated.
 The control authority of the browser window is indicated by the yellow and black frame around the input field.
 The Measuring cycle quick stop should always be carried out first and then the Optimization of stop delay time.

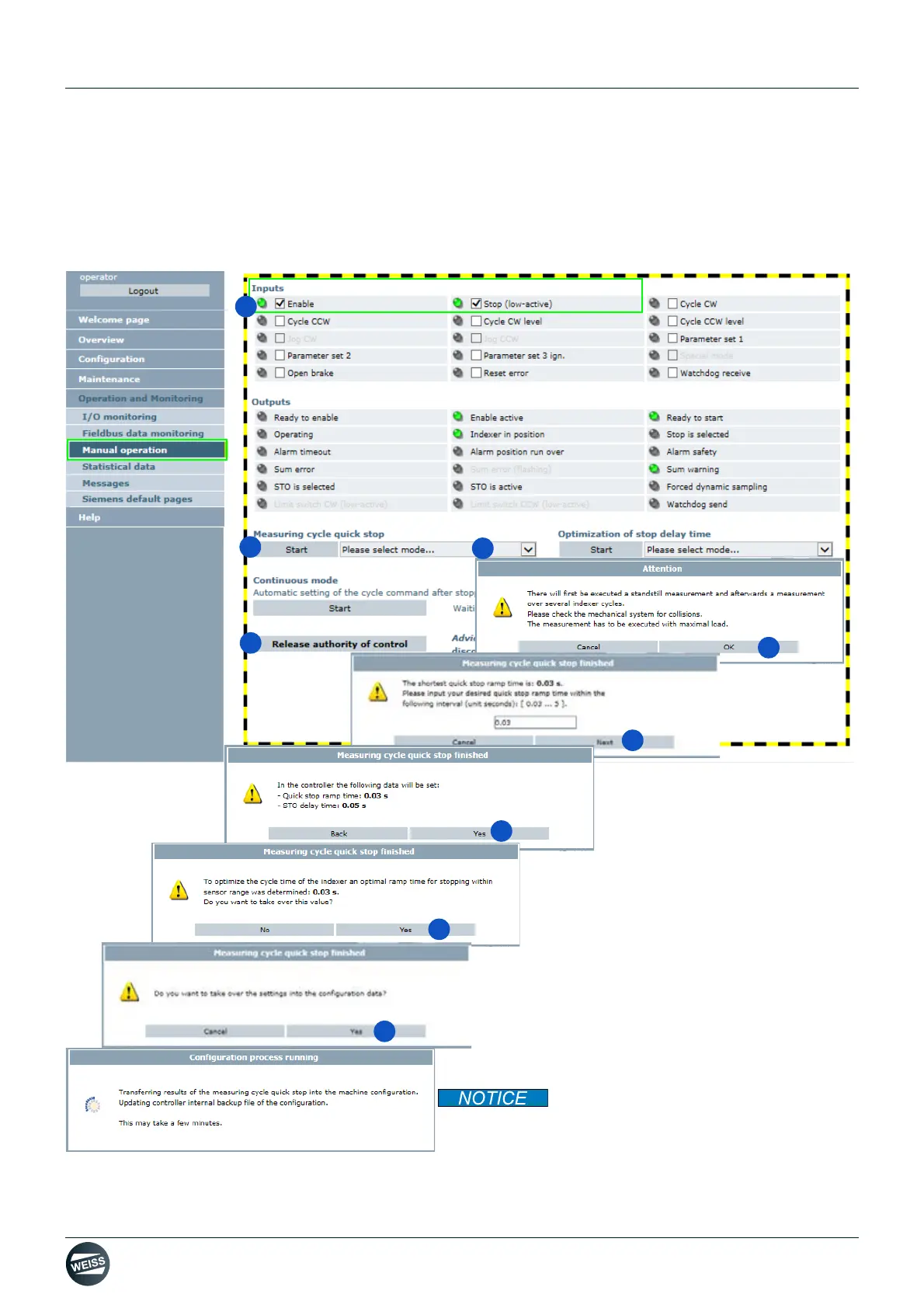

Fig. 73: Manual operation: Measuring cycle quick stop
5.
1.
4.
4.
4.
4.
4.
2.
3.
BEACHTE
The dialoges as displayed are valid for safety integrity SIL2
For safety integrity SIL3 other dialoges may be displayed
