Manual R06-201646 / 172
ROTARY INDEXING TABLE CONTROLLER EF2...B
FUNCTION AND SIGNAL DESCRIPTIONS | 4.6 Interface assignment TM15

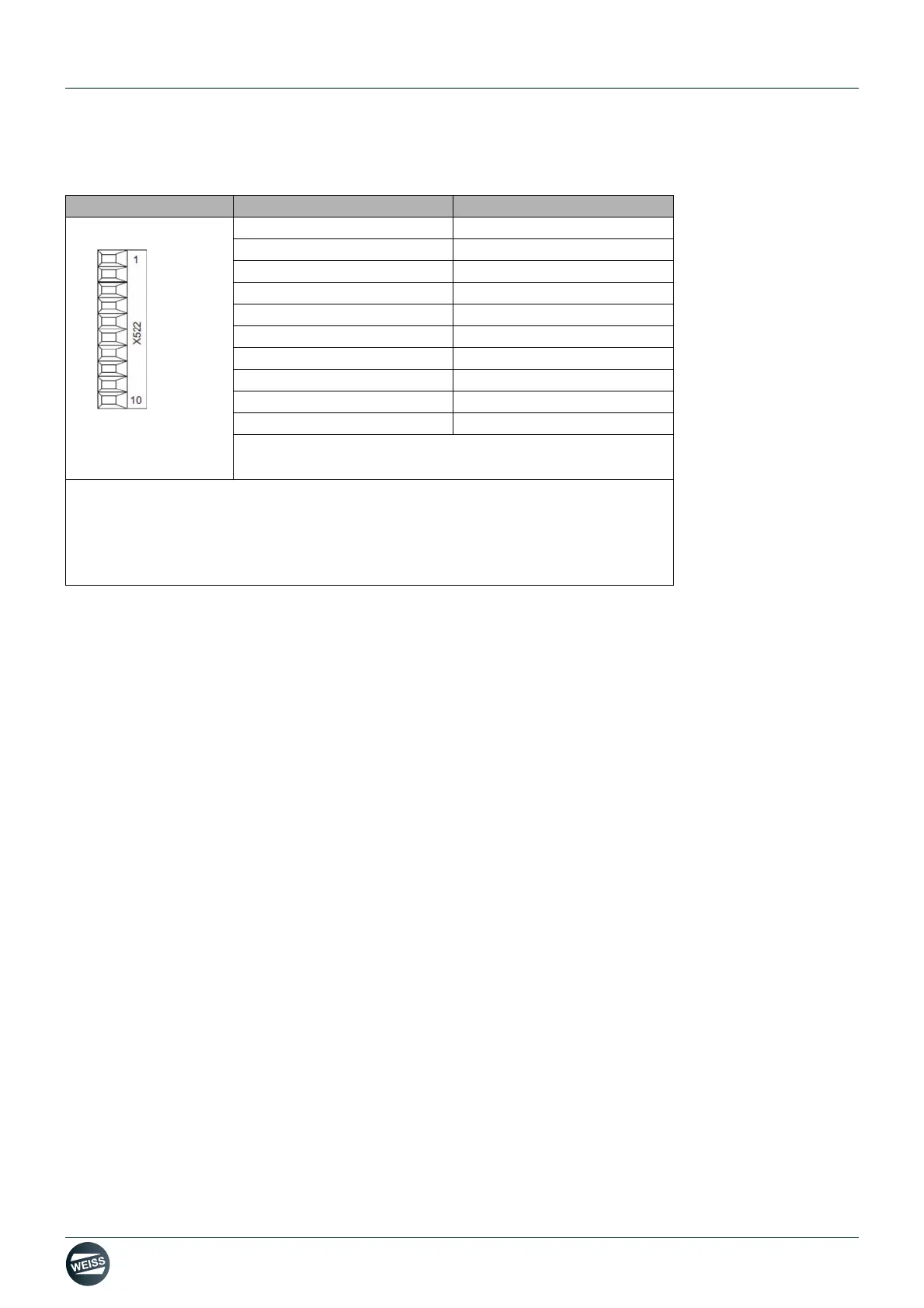

4.6.3 Interface X522
Representation Terminal Name
1 L3+
2DO 4
3DO 5
4DO 6
5DO 7
6DO 8
7DO 9
8DO 10
9DO 11
10 M3 (GND)
Screw terminal
Max. connectable cross-section: 1.5 mm
2
L3+: A 24 V DC power supply for DI/DO 16 to 23 (third potential group) must always be connected if at least
one DI/DO of the potential group is used as an output.
M3: A ground reference for DI/DO 16 to 23 (third potential group) must always be connected if at least one DI/
DO of the potential group is used as an output
.
DI/DO: Digital input / output
