WEISS EF2 Series User Manual

Manual R06-2016 85 / 172
ROTARY INDEXING TABLE CONTROLLER
EF2...B
OPERATION / DESCRIPTION OF WEISS SOFTWARE | 8.3 Machine configuration

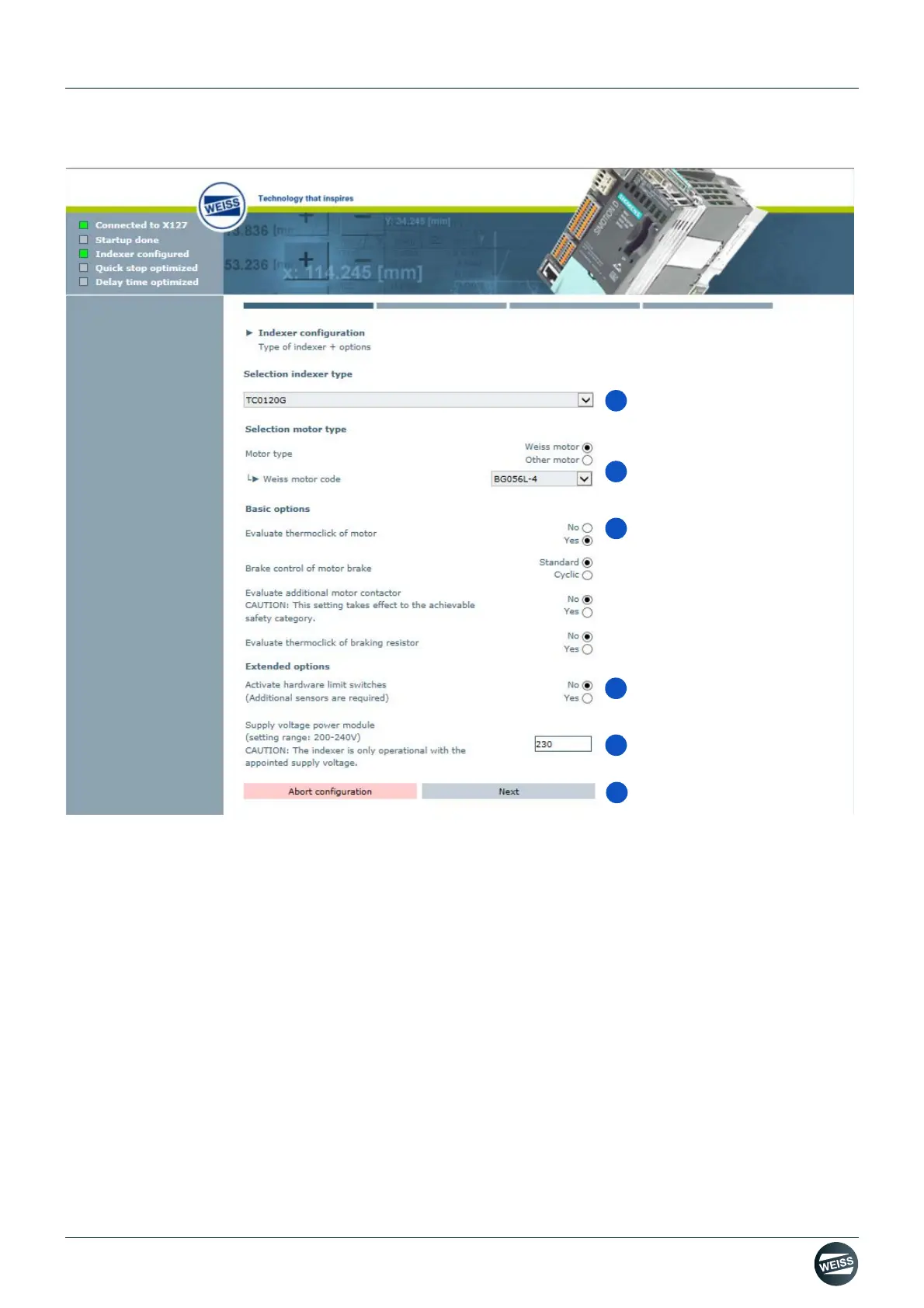

3. Select the type of indexer.
4. Select motor.
5. Select basic options.
6. Select extended options.
7. Input the supply voltage.
 The supply voltage of the power module must be input manually in the respective field.
8. Click the Next button.
➱ After the Next button has been clicked, a comment box appears.
 For a description of the comment box, refer to chapter 8.3.4.3 „Comment regarding indexer configuration data
file“ on page 88.
 By clicking on the Next button in the comment box, the indexer configuration is completed and the
start window for the I/O configuration is opened.
 (see chapter 8.3.5 „I/O configuration“ on page 89)
3.
4.
7.
5.
6.
8.
