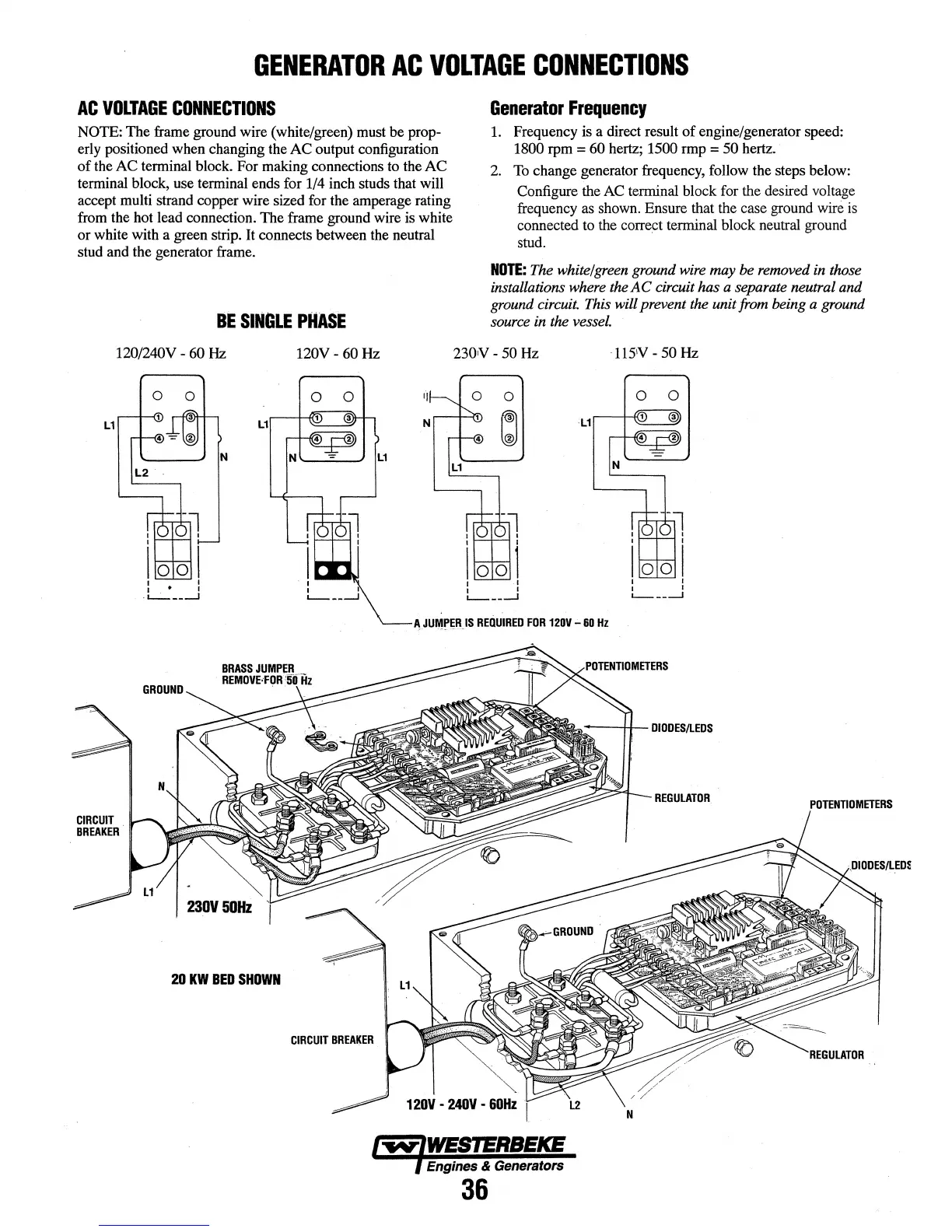

GENERATOR
AC
VOLTAGE
CONNECTIONS
AC
VOLTAGE
CONNECTIONS
NOTE:
The frame ground wire (white/green) must
be
prop-
erly positioned when changing the
AC
output configuration
of
the
AC
terminal block. For making connections to the
AC
terminal block, use terminal ends for 1/4 inch studs that will
accept multi strand copper wire sized for the amperage rating
from the hot lead connection. The frame ground wire is white
or
white with a green strip. It connects between the neutral
stud and the generator frame.
BE
SINGLE
PHASE
120/240V - 60 Hz
120V-
60Hz
0 0
0 0
,,
L1
Generator
Frequency
1.
Frequency is a direct result
of
engine/generator speed:
1800 rpm =
60
hertz; 1500 rmp =
50
hertz.
2.
To
change generator frequency, follow the steps below:
Configure the AC terminal block for the desired voltage
frequency as shown. Ensure that the case ground
wire
is
connected
to
the correct terminal block neutral ground
stud.
NOTE:
The
white/green ground
wire
may be removed in those
installations
where
the A C circuit has a separate neutral and
ground
circuit.
This will prevent
the
unit
from
being a ground
source
in the vessel.
230'V
-50
Hz
0
0 0
~
~
JUN!P~J'IIS
REQUIRED
FOR
120V-
60
Hz
20
KW
BED
SHOWN
CIRCUIT
BREAKER
