Westerbeke BCGB - Front Case;Oil Pump and Oil Pan

FRONT CASE lOlL PUMP AND OIL PAN
TIMING MARKS

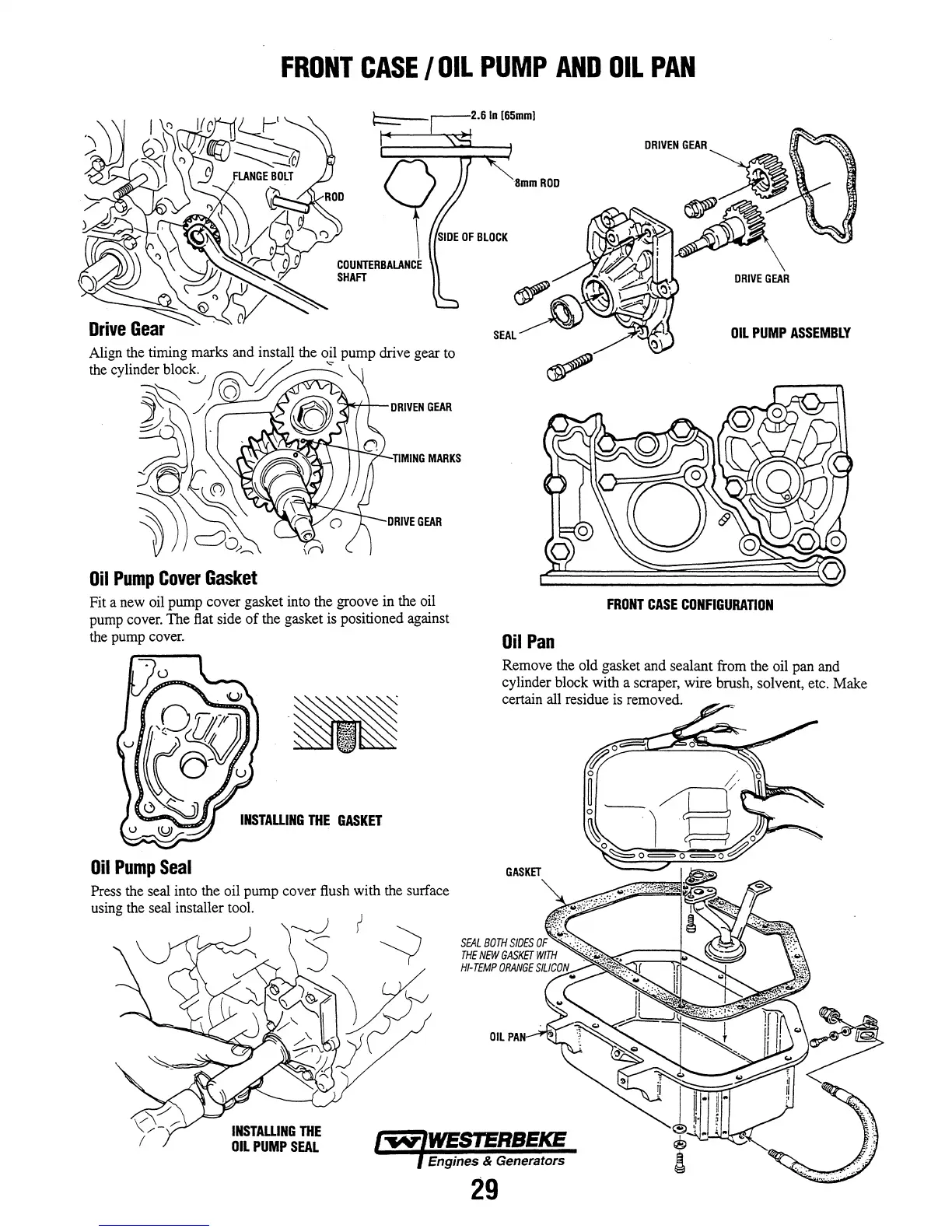

Oil Pump Cover Gasket
Fit a new oil pump cover gasket into the groove in the oil
pump cover. The flat side
of the gasket is positioned against
the pump cover.
Oil Pump Seal
Press the seal into the oil pump cover flush with the surface
using the seal installer tool.
INSTAUING THE
OIL PUMP SEAL
DRIVE GEAR
OIL PUMP ASSEMBLY
FRONT CASE CONFIGURATION
Oil Pan
Remove the old gasket and sealant from the oil pan and
cylinder block with a scraper, wire brush, solvent, etc. Make
certain all residue is removed.
OIL PAN
