Westerbeke BCGB - Front Case;Counterbalance Shaft and Oil Pan

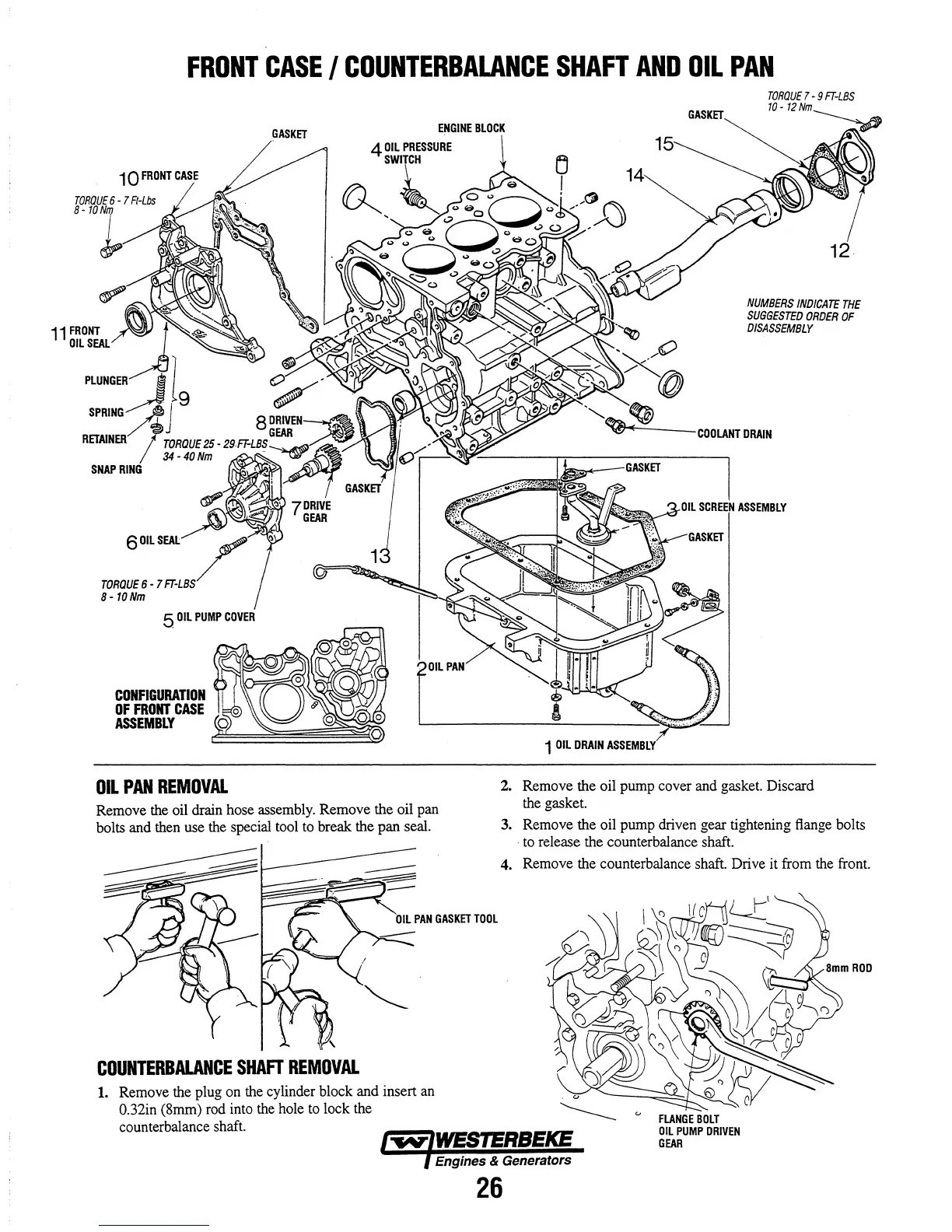

FRONT CASE I COUNTERBALANCE SHAFT AND OIL PAN
GASKET
ENGINE BLOCK
10 FRONT CASE
TORGUE 6 - 7 R-Lbs
'-1
5 OIL PUMP COVER
CONFIGURATION
OF FRONT CASE
ASSEMBLY
OIL PAN REMOVAL
Remove the oil drain hose assembly. Remove the oil pan
bolts and then use the special tool to break the pan seal.
OIL PAN GASKET TOOL
COUNTERBALANCE SHAFT REMOVAL
1. Remove the plug on the cylinder block and insert an
O.32in (Smm) rod into the hole to lock the
counterbalance shaft.
15
1 OIL DRAIN ASSEMBLY
NUMBERS INDICATE THE
SUGGESTED ORDER OF
DISASSEMBLY
COOLANT DRAIN
OIL SCREEN ASSEMBLY
2. Remove the oil pump cover and gasket. Discard
the gasket.
3. Remove the oil pump driven gear tightening flange bolts
. to release the counterbalance shaft.
4. Remove the counterbalance shaft. Drive it from the front.
FLANGE BOLT
OIL PUMP DRIVEN
GEAR
