WisyCom MFL - RX Link Status and Mode; RX Link Optical Power and Failsafe; RX Receiver Parameters

MFL User Manual
24

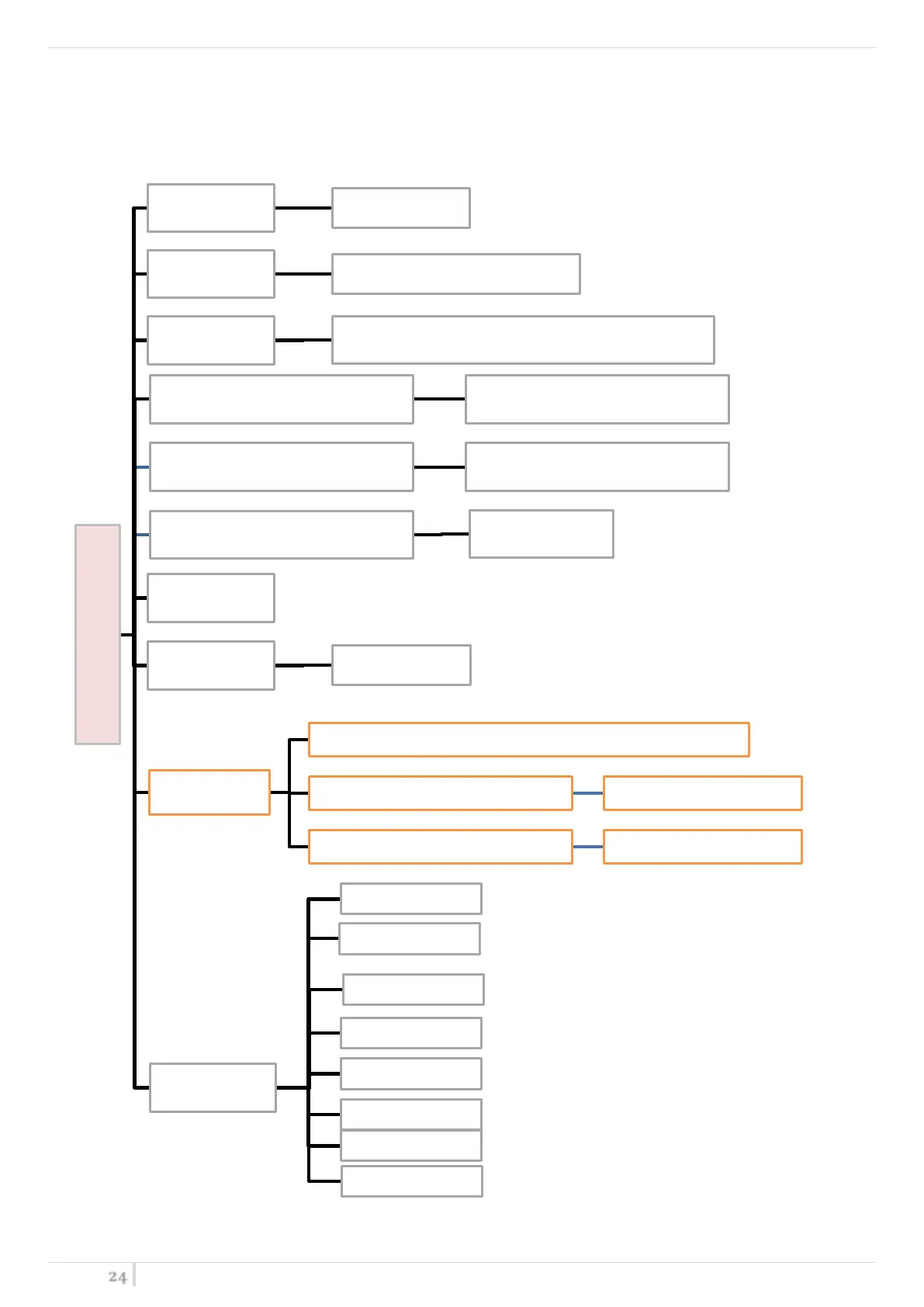

RX LINK Menu
Status ON/OFF
Mode
IFB / ANT / 1ifb / 2ifb / 3ifb / 4ifb
Gain
-18 ÷ 13.5 dB in ANT mode
-26 ÷ 5.5dB in IFB / 1ifb /2ifb / 3ifb / 4ifb mode
Booster (only IFB mode) enabled / disabled
Booster supply - / 12 V xx mA
Failsafe
enabled / disabled
Optical power
Optical pwr. corr.
ON / OFF
EXT_IFB amplifier
Selected amplifier: Custom / MPA4 / PAW ....
Custom amplifier gain -10 ÷ 40 dB (1 dB step)
Ext. amplifier list: MPA4 30dB, PAW 20dB
Receiver param
ID
Serial
RX optical power
Opt rx pwr limits
Temperature
Offset gain
Wavelength
Life time
