Wolf 30 - Cavity Component Removal and Installation; SMOKE CATALYST REMOVAL; SMOKE CATALYST INSTALLATION; BAKE TRAY ASSEMBLY REMOVAL

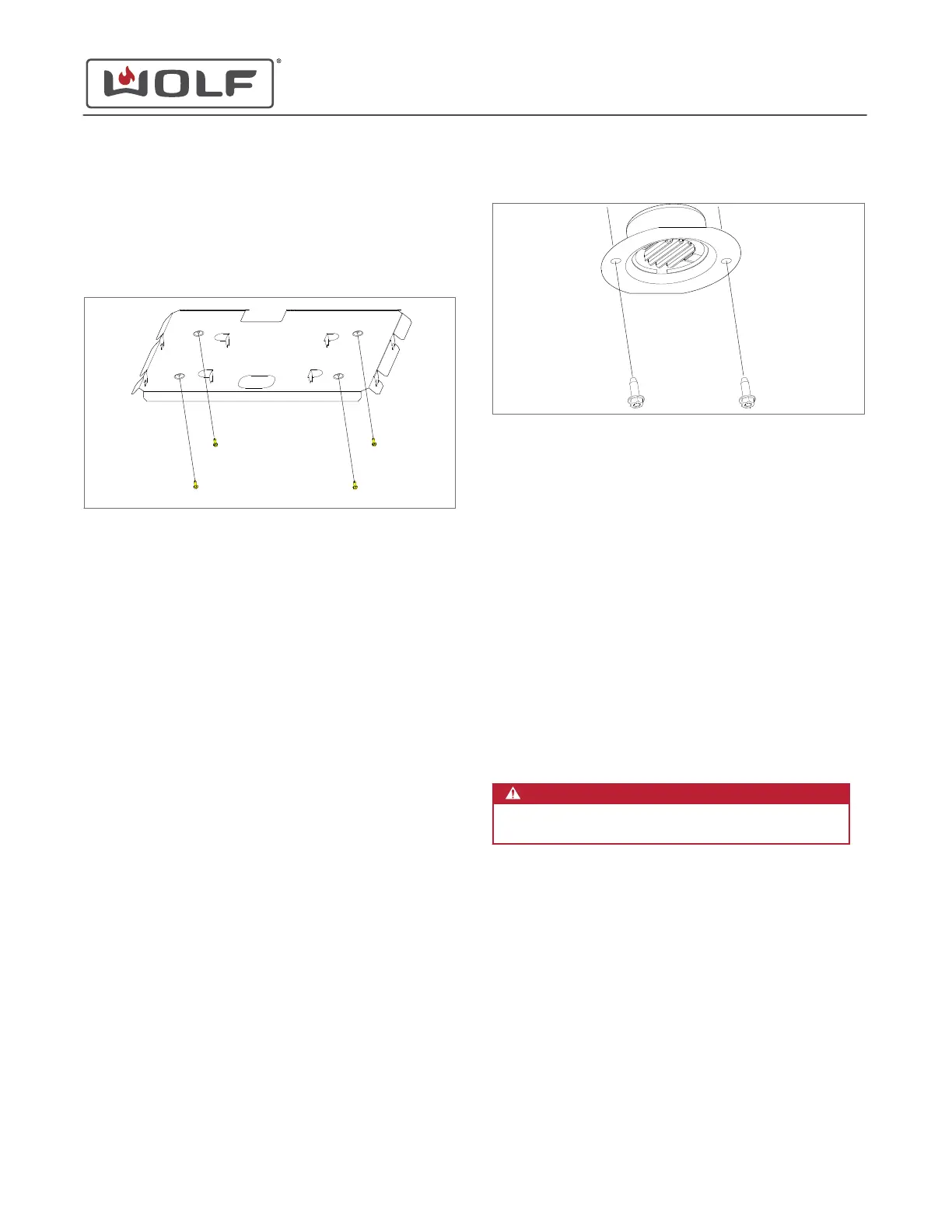

Remove the Broil Element Panel
1 Use a T-20 Torx bit to remove the mounting screws from the
broil element panel.
2 Pull the broil element panel down into the oven cavity.
3 Remove the broil element panel from the unit.
BROIL ELEMENT PANEL INSTALLATION
After installing the broil element, install:
1 Broil element
2 Oven door
Install the Broil Element Panel
1 Place the broil element panel into the oven cavity.
2 Use a T-20 Torx bit to install the mounting screws into the
broil element panel.
SMOKE CATALYST REMOVAL
To remove the smoke catalyst, first remove:
1
Oven door
2 Broil element
3 Broil element panel
Remove the Smoke Catalyst
1 Use a T-20 Torx bit to remove the mounting screws from the
smoke catalyst.
2 Pull the smoke catalyst down into the oven cavity.
3
Remove the smoke catalyst from the unit.
SMOKE CATALYST INSTALLATION
After installing the smoke catalyst, install:
1
Broil element panel
2 Broil element
3 Oven door
Install the Smoke Catalyst
1 Place the smoke catalyst into the oven cavity.
2 Use a T-20 Torx bit to install the mounting screws into the
smoke catalyst.
BAKE TRAY ASSEMBLY REMOVAL
WARNING
Disconnect the product from the power source
before starting this procedure.
To remove the bake tray assembly, first remove:
1
Oven door
2 Skirt
3 Cover collar
4 Gasket
30" and 36" Induction Range
Cavity Component Removal and Installation
Remove the Broil Element Panel (continued)
service.subzero.com
829191 REVA
62
