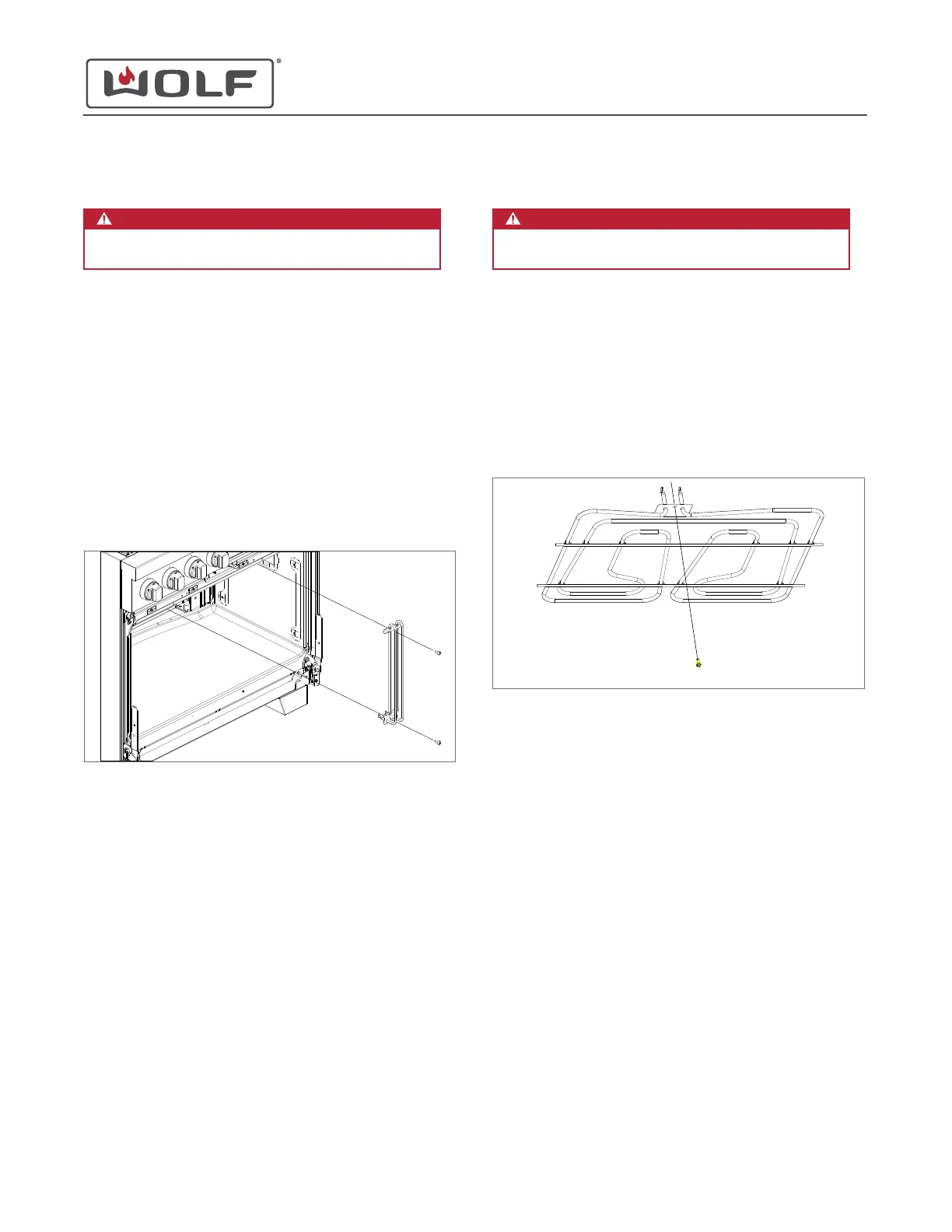

CONVECTION ELEMENT REMOVAL
WARNING
Disconnect the product from the power source
before starting this procedure.
To remove the convection element, first remove:
1
Oven door
2 Intake baffle
Remove the Convection Element
1 Use a T-20 Torx bit to remove the convection element
mounting screws.
2 Pull the convection element forward.
3 Disconnect the convection element wire connectors from
the unit harness.
4 Remove the convection element from the unit.
Dual Fuel unit shown
CONVECTION ELEMENT INSTALLATION
After installing the convection element, install:
1 Intake baffle
2 Oven door
Install the Convection Element
1 Connect the convection element wire connector to the unit
harness.
2 Place the convection element into the unit.
3 Use a T-20 Torx bit to install the convection element
mounting screws.
BROIL ELEMENT REMOVAL
WARNING
Disconnect the product from the power source
before starting this procedure.
To remove the broil element, first remove:
1
Oven door
Remove the Broil Element
1 Use a T-20 Torx bit to remove the the broil element.
2 Use needle-nose pliers to disconnect the wire connectors
from the broil element terminals.
3 Remove the broil element from the unit.
BROIL ELEMENT INSTALLATION
After installing the broil element, install:
1
Oven door
Install the Broil Element
1 Use needle-nose pliers to install the wire connectors onto
the broil element terminals.
2 Install the broil element into the oven cavity.
3 Use a T-20 Torx bit to install the mounting screw into the
broil element.
BROIL ELEMENT PANEL REMOVAL
To remove the broil element panel, first remove:
1
Oven door
2 Broil element
30" and 36" Induction Range
Cavity Component Removal and Installation
Convection Element Removal (continued)
