Rev AB Using the Tools Page 4-5
Wolke m600 touch Operator Manual
Printhead Setting
Navigate to Tools > Setup > Printhead (Figure 4-4).
Horizontal Print Density: Allows the user to set the print resolution. For
more information, refer “How to Adjust Print Resolution” on page 5-17.
Maximum Speed: Allows the user to set the print speed in millimeter per
second (mm/s).
Vertical Print Density: Allows the user to set the print resolution.
Printhead 1-4: Allows the user to set the product delay, direction of
product travel, print resolution, and print orientation. For more
information refer “How to Setup the Printhead Settings” on page 5-15.
Note: When printheads are grouped together, the parameters for the group are
matched together. The screen displays the number of groups. If four printheads are
grouped, the screen displays it as Printhead 1.

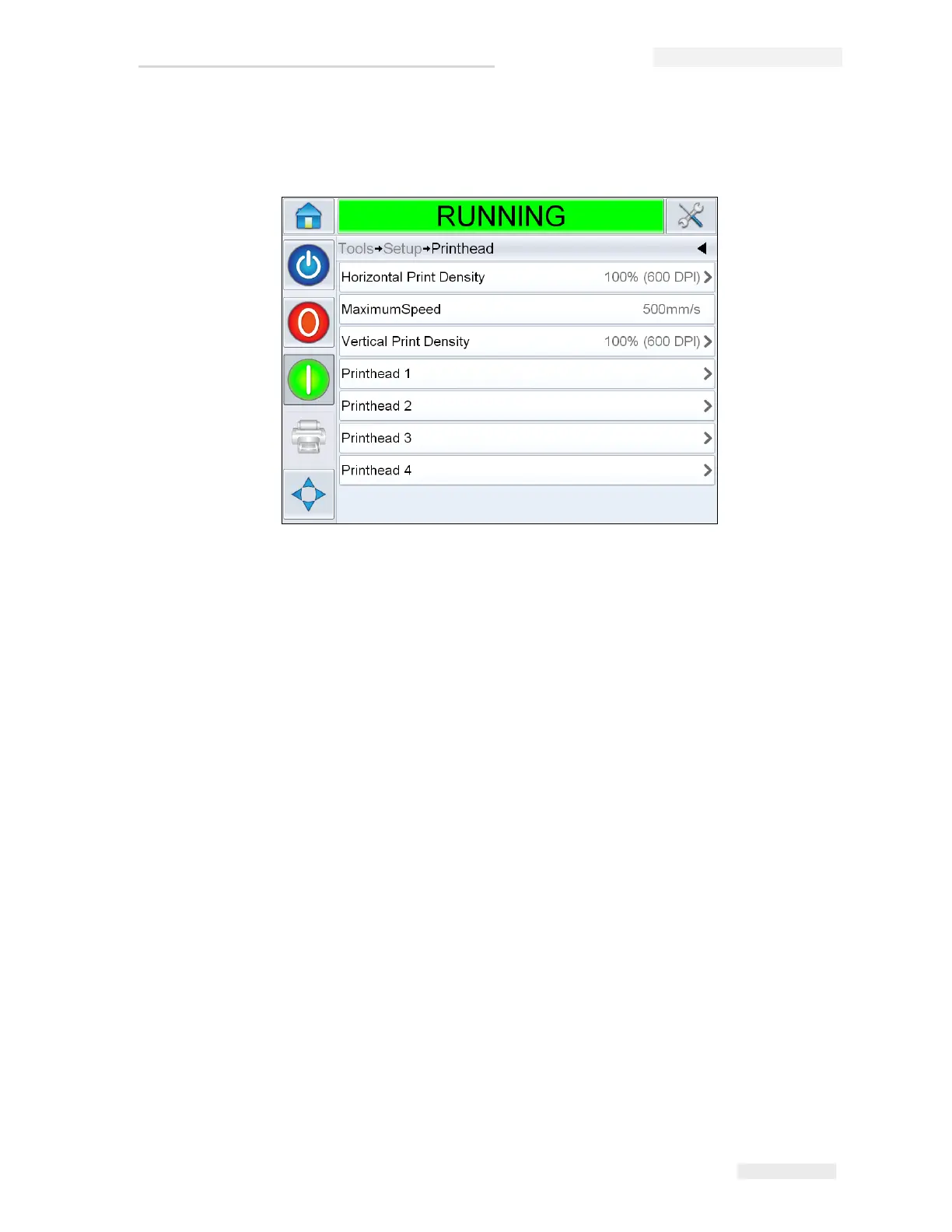

Figure 4-4: Printhead Setting
