• Line Select: If the Line Select is enabled on the controller, the user can
assign a job to the required line.
• Printer present: Confirms connections to printhead.
• Configurable Input 1-6: Shows the current configuration of the input.
• Printhead (1-4) Product Detect: Shows the sensor setting to detect the
product at printhead level.
• 48 Volts Supply: Displays the available voltage near the 48 V supply.
• 24 Volts Supply: Displays the available voltage near the 24 V supply.
• Printhead Volts: Displays the available Printhead voltage.
• Cartridge (1-4) Temperature: Displays the cartridge temperature
information.
• Printhead (1-4) Temperature: Displays the Printhead temperature
information.

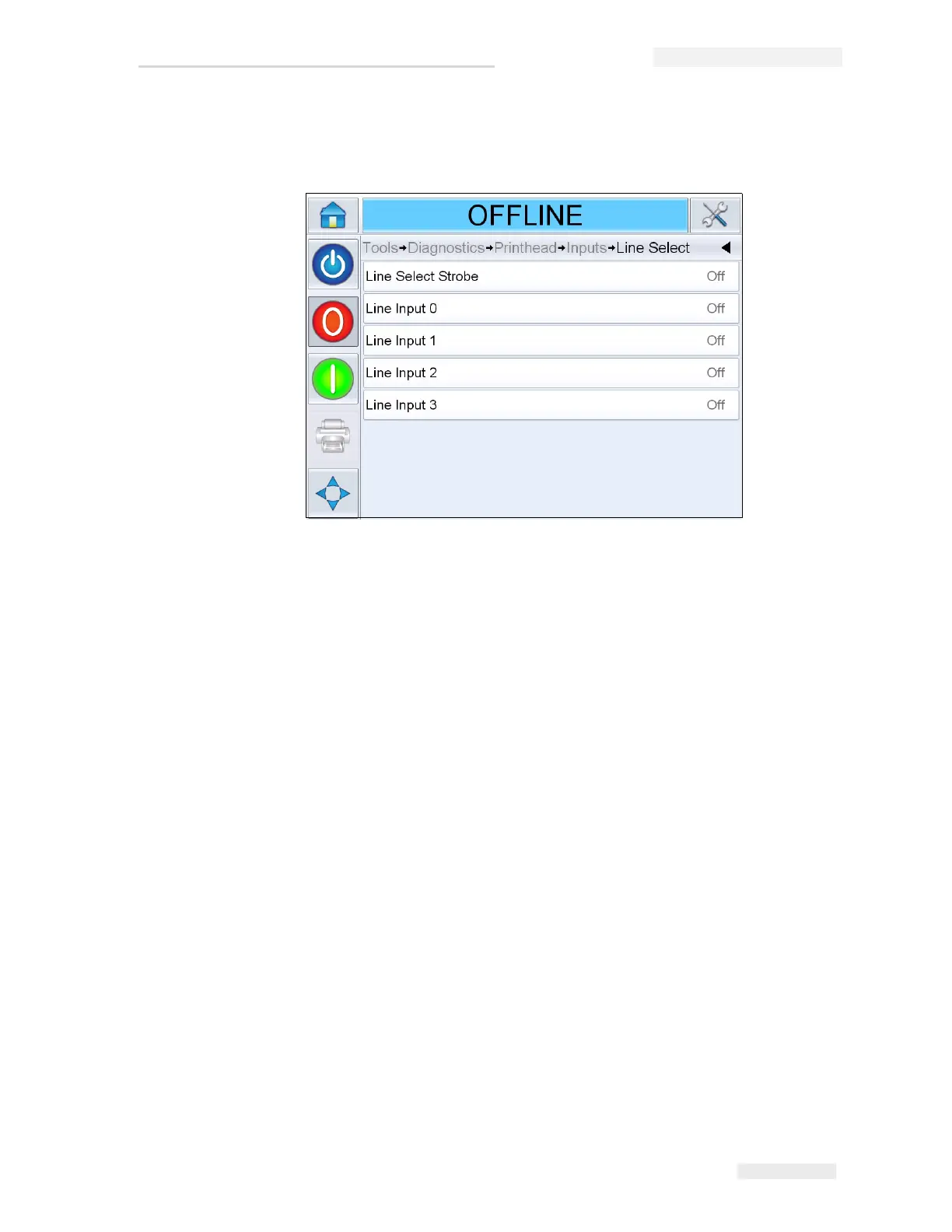

Figure 4-13: Input Line Select Page
To Next Page
