Installation
6720813171 (2015/04)14

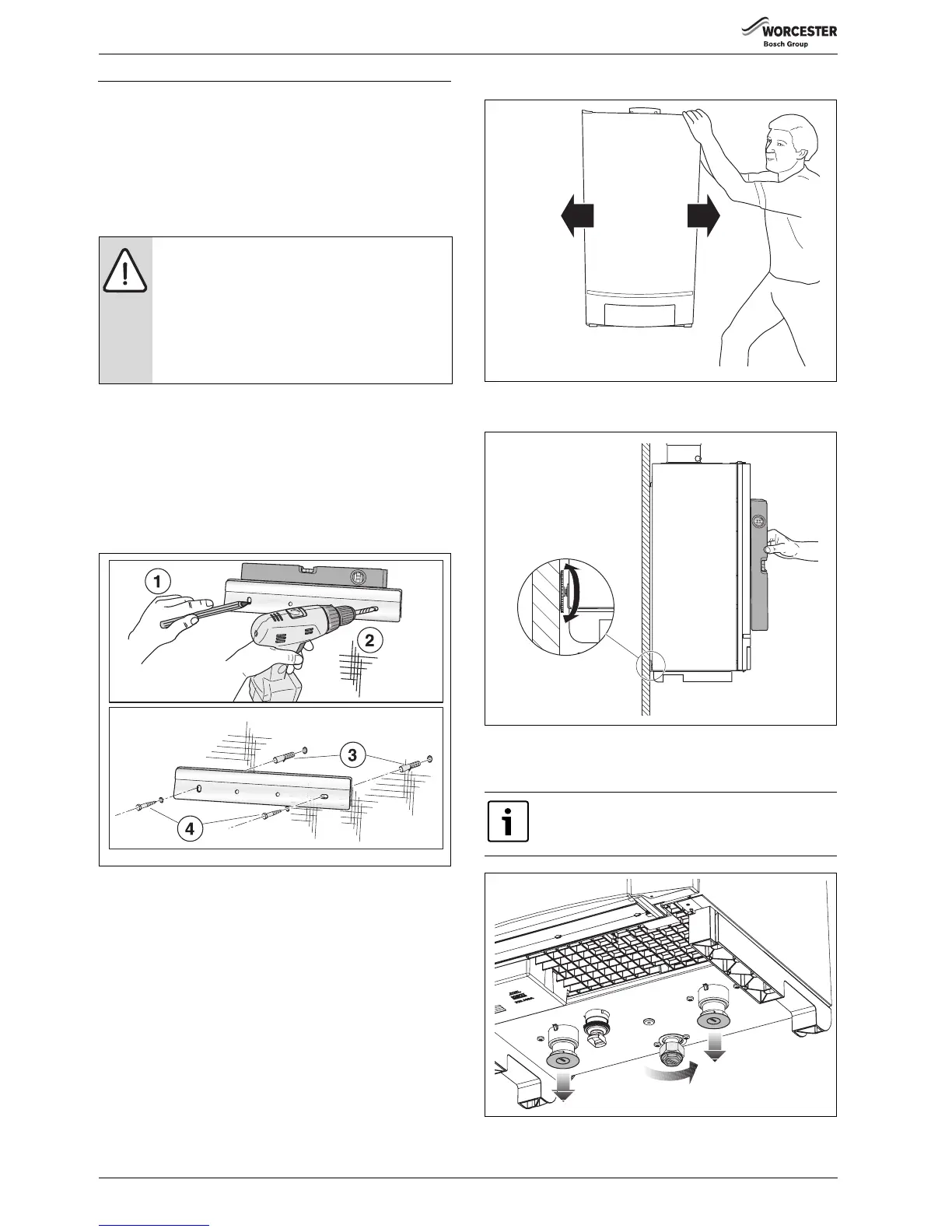

8Installation
This section explains how to install the boiler in a professional manner.
8.1 Installing the boiler
Observe the installation distances of the concentric flue gas system in
the separate flue gas system manual.
▶ Before starting installation check that the carrying capacity of the
wall is sufficient for the boiler weight.
▶ Remove the packaging and dispose of it in an environmentally
manner.
▶ Measure the installation height ( chapter 7 “Dimensions of boiler”,
page 12).
▶ Mark out both holes using the wall bracket (step 1) using a spirit
level.
▶ Drill 2 holes in the wall (step 2).
▶ Insert the 2 enclosed plugs in the drilled holes (step 3).
▶ Install the wall bracket, using the 2 enclosed screws (step 4).
Fig. 8 Installing the wall bracket
▶ With 2 people, lift the boiler by holding it by its back and by the
transport rail at its bottom and install it on the wall bracket ( fig. 3,
page 11).
▶ Slide the boiler into place ( fig. 9).
Fig. 9 Sliding the boiler
▶ Level the boiler using the set screw and a spirit level ( fig. 10).
Fig. 10 Aligning the boiler with the set screw
▶ Remove the protective covers from the bottom of the boiler
( fig. 11).
Fig. 11 Removing the covers
CAUTION: Damage to the installation.
▶ Do not remove the polystyrene foam bottom slab,
otherwise the connection injectors might be
damaged.
▶ Do not lift the boiler by holding it by the door over the
BC10 ( section 5.1).
▶ During installation work, cover the boiler and the flue
gas adapter to prevent site dirt from entering.
