BOILER LOCATION &
CLEARANCES
WARNING:
This appliance should not be installed where
there is a potential for excessive ground
water coverage.
This boiler is only suitable for installing
externally at a suitable location onto a fixed
permanent rigid surface capable of
supporting the boiler weight.
There must be a sufficient hard standing
around the appliance to allow for servicing.
The boiler must be installed on a flat level
surface to ensure that condensate does not
enter the primary heat exchanger.
Tarmac and wood hardstandings are not
recommended.

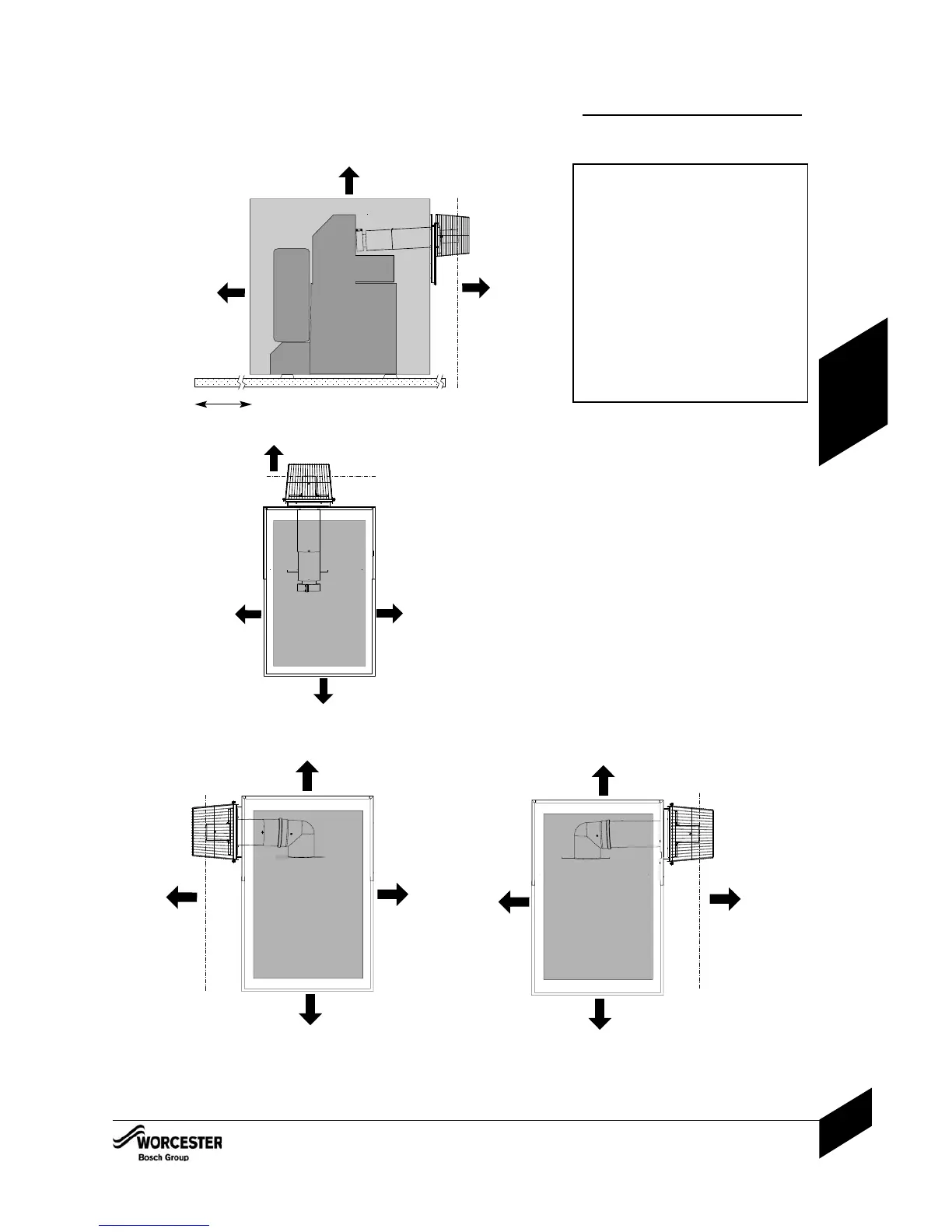

CLEARANCES: Min service & flue clearances
Above 600mm
Front 600mm
RH/LH clearance flue outlet on opposite side: 10mm
RH clearance flue outlet on rear: 45mm
LH clearance flue outlet on rear: 85mm
Rear clearance flue outlet on side: 50mm
Rear clearance flue outlet on rear: 2500mm
It is strongly recommended that the flue
terminal faces away from walls to reduce the
possibility of wetting occuring.
600mm
2500mm
600mm
BASE
FRONT
FRONT
2500mm
50mm
45mm85mm
600mm
10mm
2500mm
FRONT
FRONT
10mm
50mm
Plan
view
Plan
view
Plan
view
600mm min
