Worcester Greenstar Heatslave II External 12/18

PRE -
INSTALLATION

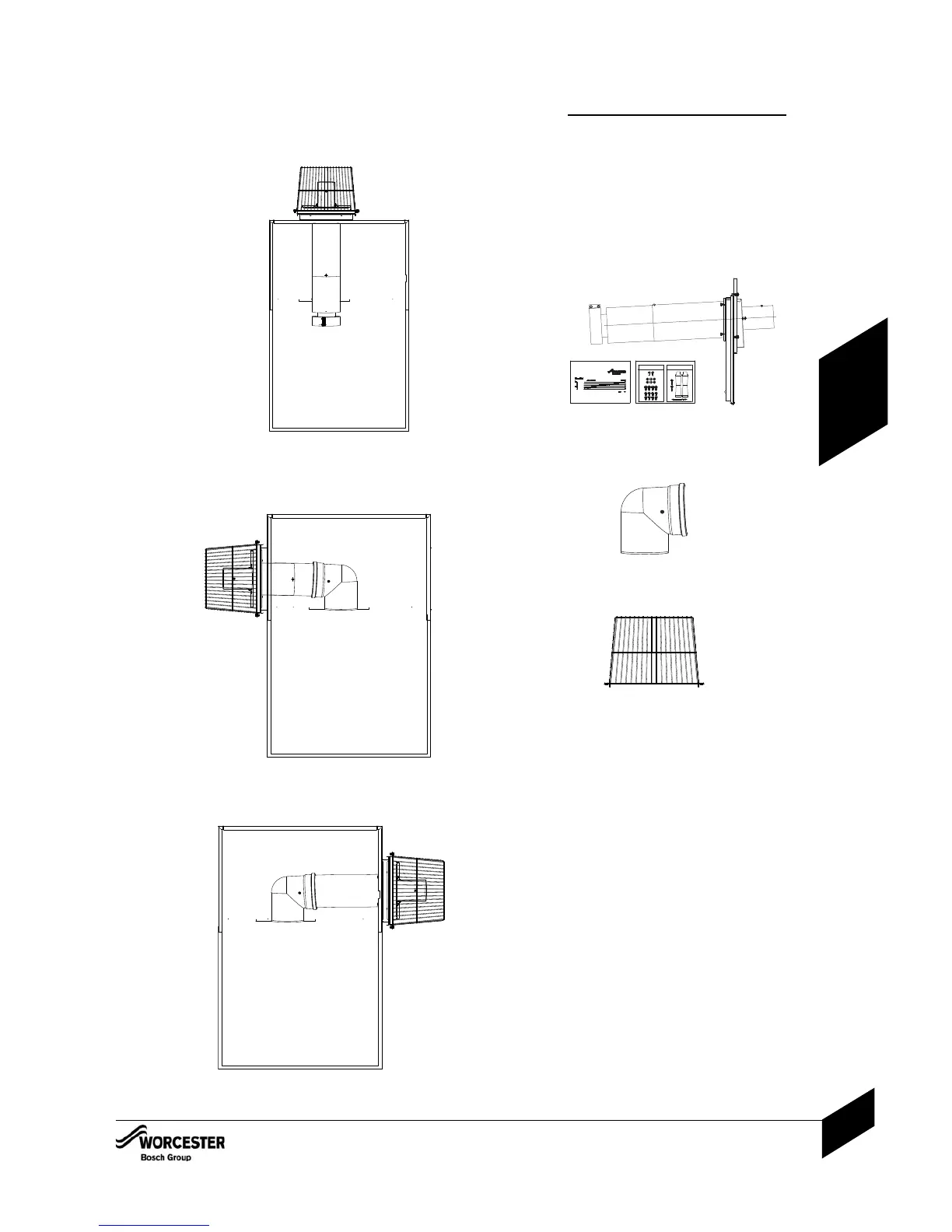

CABINET MOUNTED BALANCED
HORIZONTAL FLUE OPTIONS
INSTALLATION & SERVICING INSTRUCTIONS FOR GREENSTAR HEATSLAVE II EXTERNAL 12/18-18/25-25/32
6 720 805 210-01
21
CABINET MOUNTED BALANCED
HORIZONTAL FLUE OPTIONS
• The horizontal flue is fitted to the rear or
either side of the cabinet.
IMPORTANT:
It is strongly recommended that the flue
terminal faces away from walls to
minimise the occurance of wetting.
A - External horizontal flue kit (included)
B - 90° inline elbow 80/125mm
Part No. 7 716 190 034
C - Stainless steel terminal guard
Part No. 7 716 190 050
FRONT
FRONT
Plan
view
Plan
view
Plan
view
REAR FLUE OUTLET
A + C
LEFT HAND FLUE OUTLET
A + B + C
RIGHT HAND FLUE
OUTLET
A + B + C
