PLUME MANAGEMENT
INSTALLATION & SERVICING INSTRUCTIONS FOR GREENSTAR HEATSLAVE II EXTERNAL 12/18-18/25-25/32
6 720 805 210-01
20
PRE -
INSTALLATION
IMPORTANT: All horizontal sections must
rise away from the boiler by 52mm per
metre (3°) to allow the condensate to
drain back to the boiler.
Plume Management:

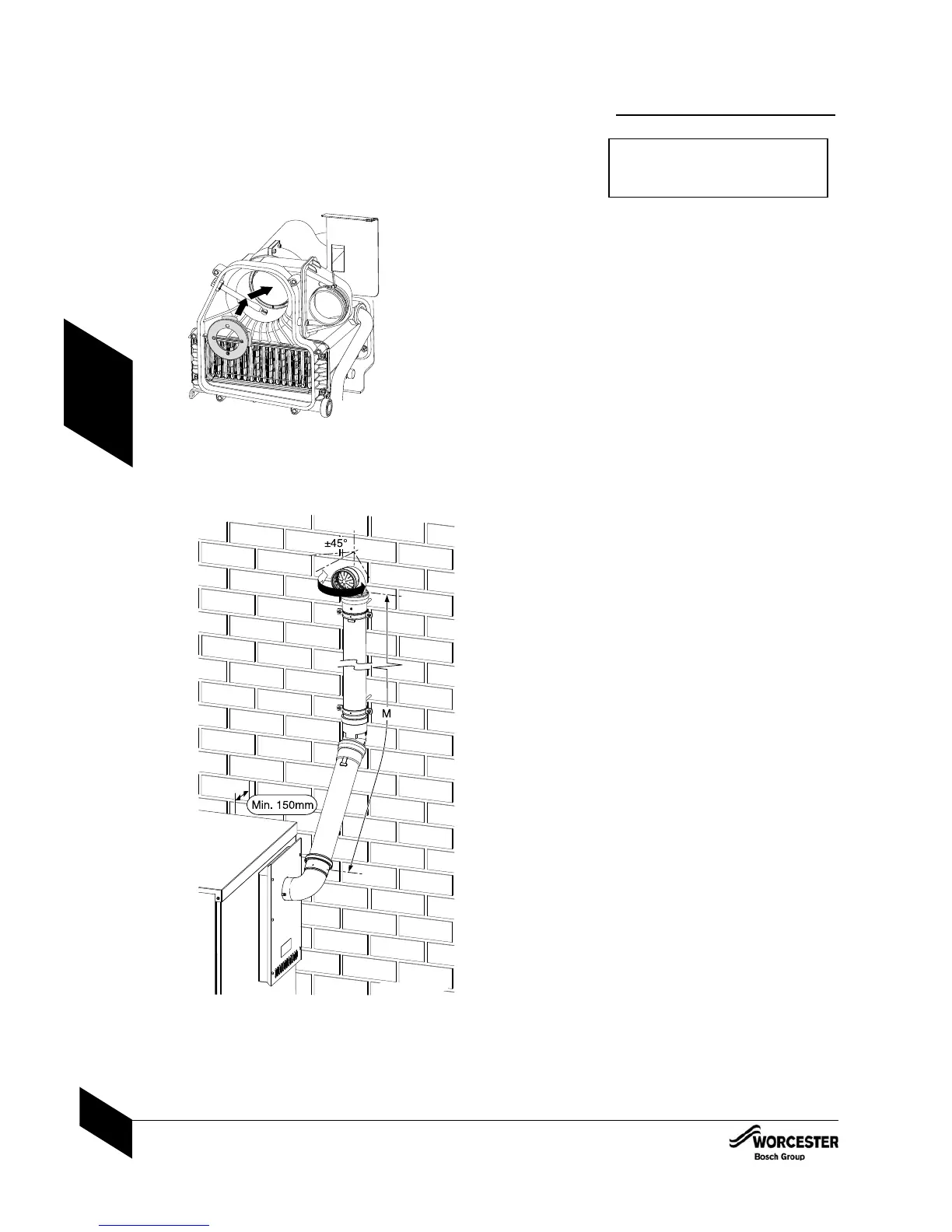

1. The flue damper can be fitted into the flue
system, however, if the system has already
been fitted the manifold access cover can be
removed and the damper inserted into the
flue inner tube. Take care not to damage the
Flue Overheat Thermostat Phial.
Plume lengths:
Greenstar Heatslave External II 12/18 & 18/25:
Maximum length of plume management system
M = 5000mm
Greenstar Heatslave External II 25/32:
Maximum length of plume management system
M = 4000mm
Additional bends:
The plume management system always
employs 2 bends, a maximum of 2 further
bends can be used in addition to the first bend
exiting the flue system and the terminal bend.
Adding bends to the plume management
system reduces the actual plume management
length. Each bend has an equivalent straight
lenght and must be factored into the overall
effective length:
90° bend is equivalent to 1000mm.
45° bend is equivalent to 500mm.
2.The system can exit the boiler from the left
and right and rear of the appliance but must
be supported by brackets to an adjacent wall
or permanent structure.
PLUME MANAGEMENT
1
2
