Hook the
retainer (K)
over the
end two
baffles

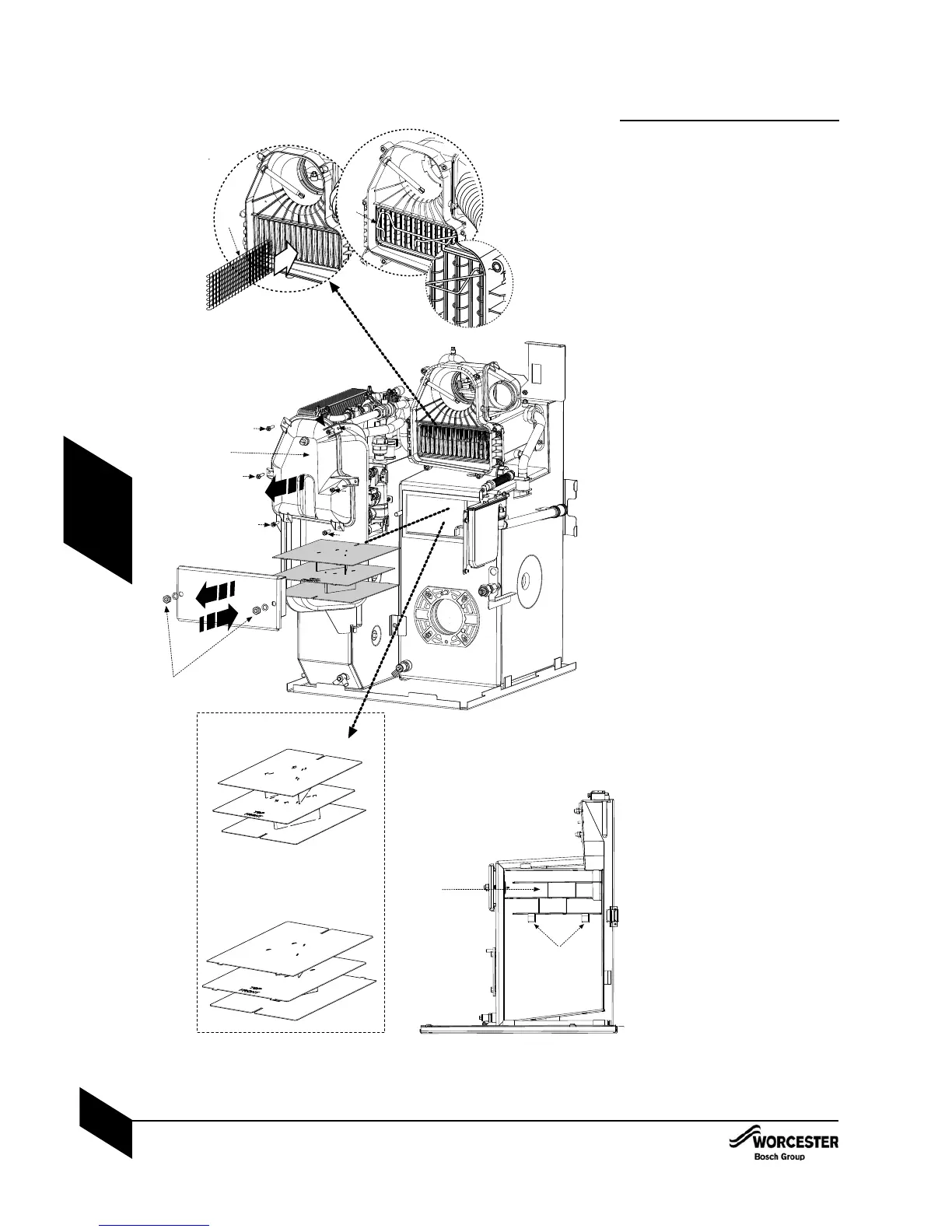

Combustion chamber:
14 Remove the retaining nuts and washers (B).
4 Remove combustion chamber/baffle access
door (A).
24 Ensure one piece baffle set (C) is
in the right location (D), correctly resting on
the baffle rests (F) on either side of the
combustion chamber and pushed securely
into place.
34 Refit combustion chamber door (A).
IMPORTANT: Secure with nuts and
washers (B) and tighten until the
chamber door is firmly secured, do not
over tighten the nuts.
44 Unscrew screws (G) and remove flue
manifold access cover (H).
54 Check that all the baffles ( J ) and baffle
retainer (K) are correctly fitted to the
secondary heat exchanger.
COMBUSTION CHAMBER
COMBUSTION CHAMBER
