Worcester Greenstar Heatslave II External 12/18

SHORT PARTS LIST
RIELLO RDB 2.2 - 25/32
INSTALLATION & SERVICING INSTRUCTIONS FOR GREENSTAR HEATSLAVE II EXTERNAL 12/18-18/25-25/32
6 720 805 210-01
52
SERVICING
& SPARES
7
8
11
15
16
17
13
12
14
2
34
5
6
9
10
1
18
19
20
22
21
24
23
26
25
28
27
29
30

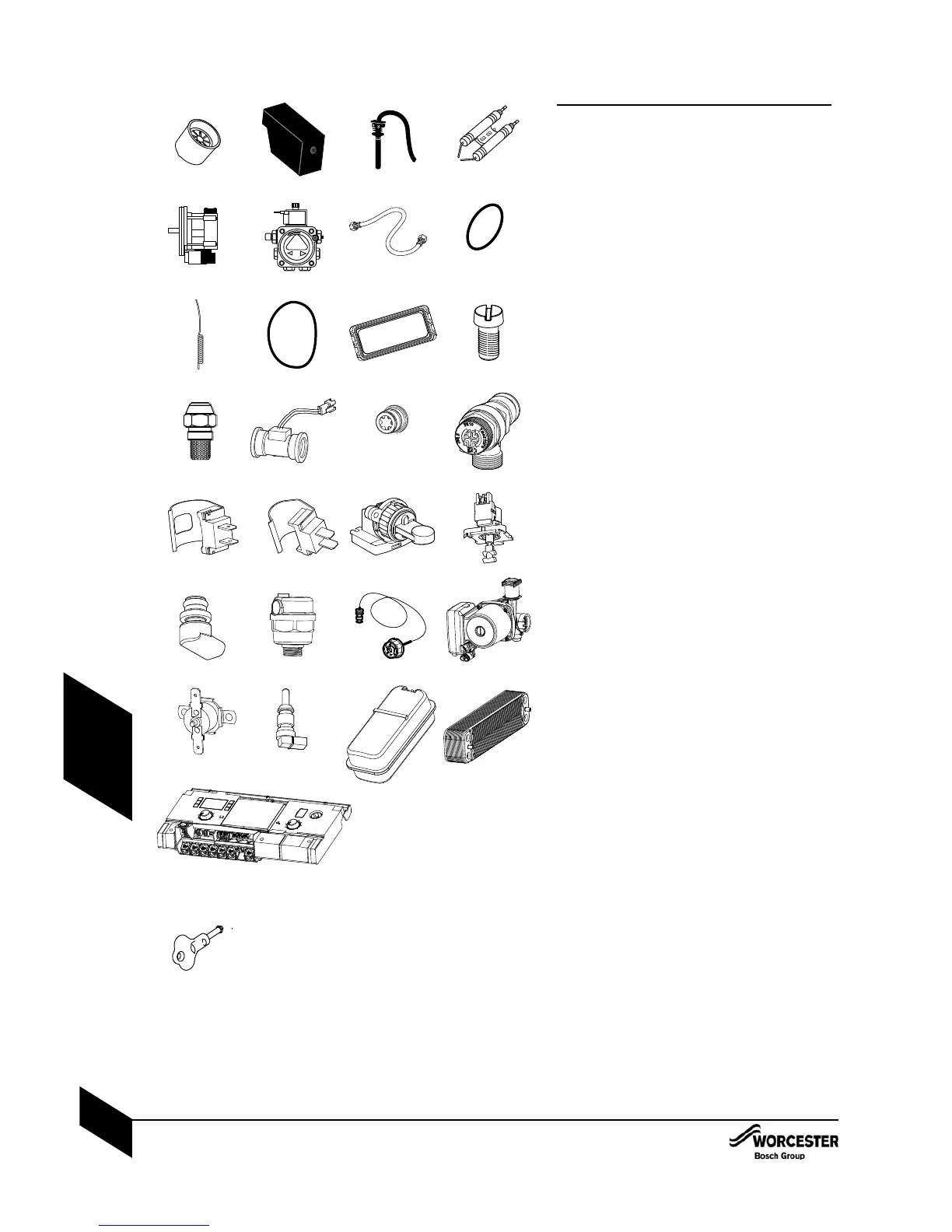

1 Combustion head - T2 SH 25/32 8 716 112 780 0
2 Control box MO535 MRF 8 718 682 250 0
3 Photocell 8 716 109 193 0
4 Ignition electrode 8 716 109 211 0
5 Motor 8 716 110 522 0
6 Oil pump - Riello RDB 8 718 689 342 0
7 Flexible oil hose kit 8 716 115 310 0
8 Burner 'O' ring 8 716 109 341 0
9 Manual reset flue thermostat 8 716 107 624 0
10 Manifold access cover seal 8 718 682 849 0
11 Secondary Heat Exchanger gasket 8 718 688 799 0
12 Flue sample point screw 8 718 682 081 0
13 Oil nozzle
0.75 80° ES (25 & 28.5kW output) 8 716 109 387 0
0.85 80° EH (32kW output) 8 716 156 644 0
14 Flow turbine 8 717 002 132 0
15 Flow regulator 25 litre (Grey) 8 718 681 198 0
16 Pressure releif valve 8 718 681 163 0
17 18mm Pipe NTC 8 718 688 801 0
18 15mm Pipe NTC 8 716 010 809 0
19 Diverter valve assembly 8 716 106 845 0
20 Diverter valve motor 8 718 682 839 0
21 DHW Pressure relief valve 8 717 401 029 0
22 Auto air vent 8 718 684 401 0
23 Pressure gauge 8 718 689 357 0
24 Pump assembly 25/32 8 718 690 009 0
25 Manual reset tank thermostat 8 718 690 548 0
26 Wet sensor 8 718 684 323 0
27 Expansion vessel 8 716 107 660 0
28 Plate heat exchanger 8 716 108 212 0
29 Control box 8 718 689 485 0
30 1/4 Turn cabinet key 8 716 114 013 0
SHORT PARTS LIST 25/32
