Worcester Greenstar Heatslave II External 12/18

SHORT PARTS LIST
RIELLO RDB 2.2 - 18/25
INSTALLATION & SERVICING INSTRUCTIONS FOR GREENSTAR HEATSLAVE II EXTERNAL 12/18-18/25-25/32
6 720 805 210-01
51
SERVICING
& SPARES
7
8
11
15
16
17
13
12
14
2
34
5
6
9
10
1
18
19
20
22
21
24
23
26
25
28
27
30
29
31

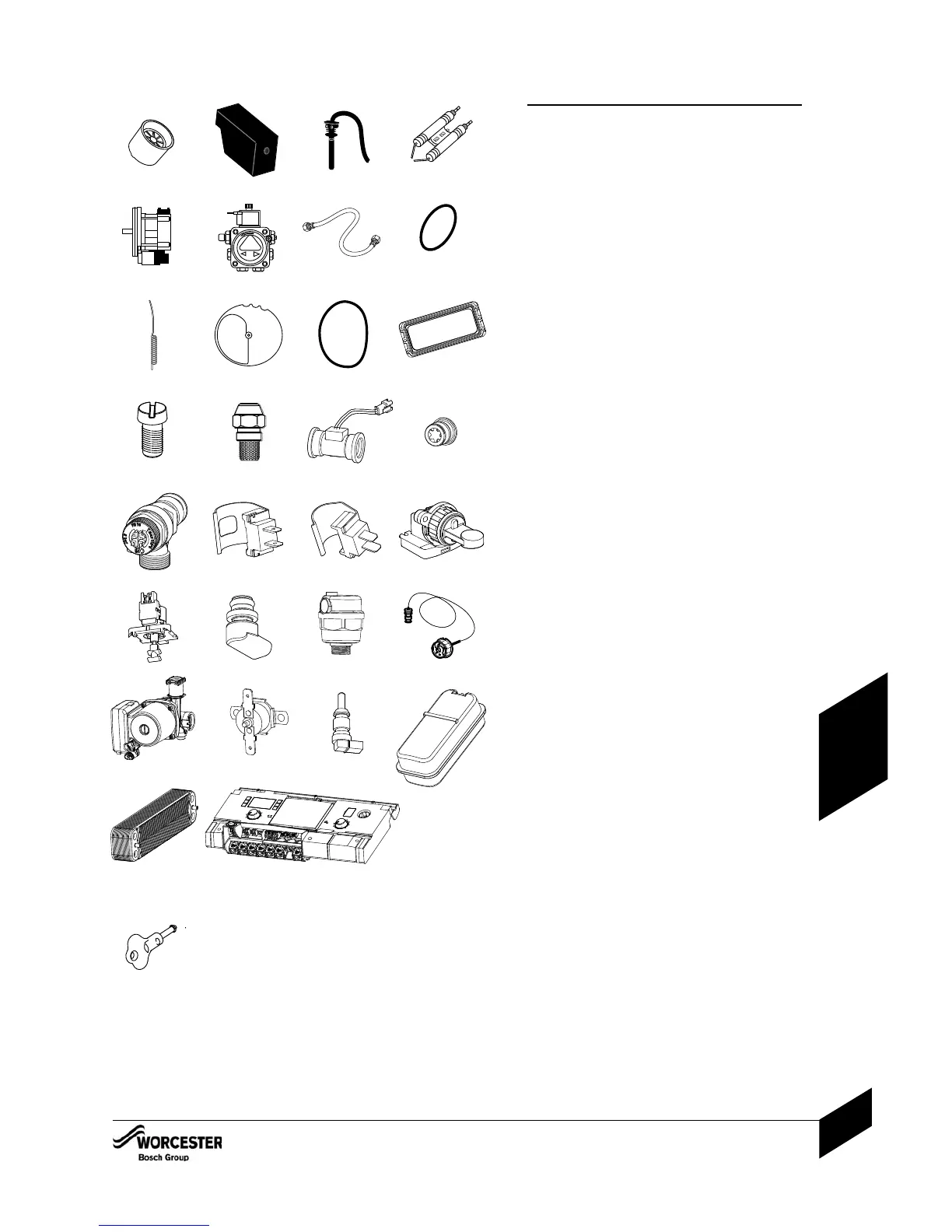

1 Combustion head - LD2SX 18/25 8 718 682 170 0
2 Control box MO535 MRF 8 718 682 250 0
3 Photocell 8 716 109 193 0
4 Ignition electrode 8 716 109 211 0
5 Motor 8 716 110 522 0
6 Oil pump - Riello RDB 8 718 689 342 0
7 Flexible oil hose kit 8 716 115 310 0
8 Burner 'O' ring 8 716 109 341 0
9 Manual reset flue thermostat 8 716 107 624 0
10 Air damper disc 18 21.5-25 8 718 690 458 0
11 Manifold access cover seal 8 716 107 536 0
12 Secondary Heat Exchanger gasket 8 747 009 725 0
13 Flue sample point screw 8 718 682 081 0
14 Oil nozzle
0.50 80° ES (18kW output) 8 716 156 671 0
0.60 60° ES (21.5kW output) 8 716 156 680 0
0.75 80° ES (25kW output) 8 716 109 387 0
15 Flow turbine 8 717 002 132 0
16 Flow regulator 20 litre (Beige) 8 717 002 135 0
17 Pressure releif valve 8 718 681 163 0
18 18mm Pipe NTC 8 718 688 801 0
19 15mm Pipe NTC 8 716 010 809 0
20 Diverter valve assembly 8 716 106 845 0
21 Diverter valve motor 8 718 682 839 0
22 DHW Pressure relief valve 8 717 401 029 0
23 Auto air vent 8 718 684 401 0
24 Pressure gauge 8 718 689 357 0
25 Pump assembly 12/18 & 18/25 8 718 682 790 0
26 Manual reset tank thermostat 8 718 690 548 0
27 Wet sensor 8 718 684 323 0
28 Expansion vessel 8 716 107 660 0
29 Plate heat exchanger 8 716 108 212 0
30 Control box 8 718 689 485 0
31 1/4 Turn cabinet key 8 716 114 013 0
SHORT PARTS LIST 18/25
