WTC 200 - Connectors Arrangement; Connectors Description

7

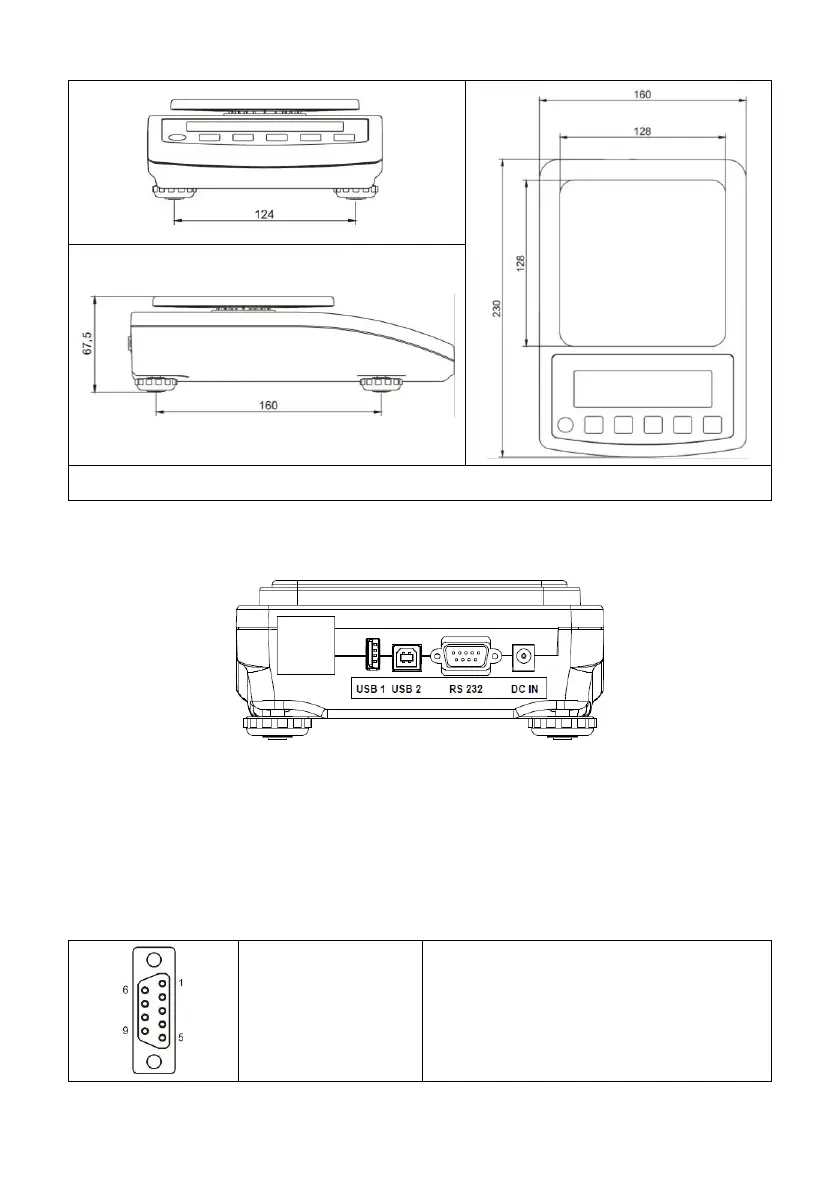

Figure 2. Dimensions of WTC 600, WTC 2000, WTC 3000 scale
4.2. Connectors Arrangement
Figure 3. Connectors view
DC IN – power supply socket
RS232 - RS232 connector
USB 2 - USB „device” connector
USB 1 - USB „host” connector
4.3. Connectors Description
Pin2 – RxD
Pin3 – TxD
Pin4 – 5VDC
Pin5 – GND
RS 232 connector DB9/M (male)
