Assembling the Mobile Station

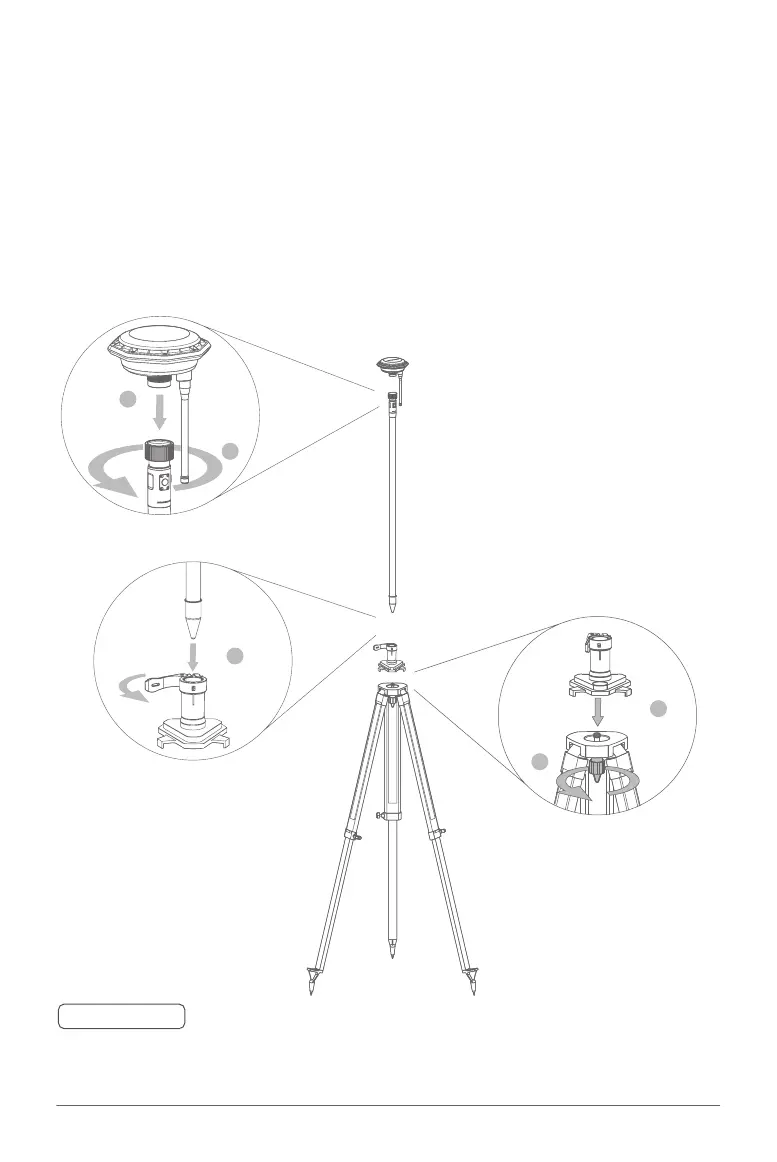

01. Connect the GNSS RTK Module to the top end of the extension rod.
02. Rotate the tightening ring to firmly secure the connection of the extension rod to the Module to
complete the assembly of Rover.
03. Place the Balance Plate on top of the Tripod as shown.
04. Tighten the fixing bolts on the Tripod to firmly secure the Balance plate.
05. Place the Rover assembled in Step 2 from top into the spacing hole and close the buckle to
complete the assembly of the Mobile Station.
2
1
5
4
3
🧷
IMPORTANT
Adjust the three retractable legs of the Tripod accordingly to ensure the bubble on the Balance Plate
is centred and level. Unlevelled RTK Mobile Station may lead Aircraft to behave erratically.
