Xantrex Freedom X 2000 User Manual

Side Panel
975-0822-01-01 9
Side Panel
1 2
4 3

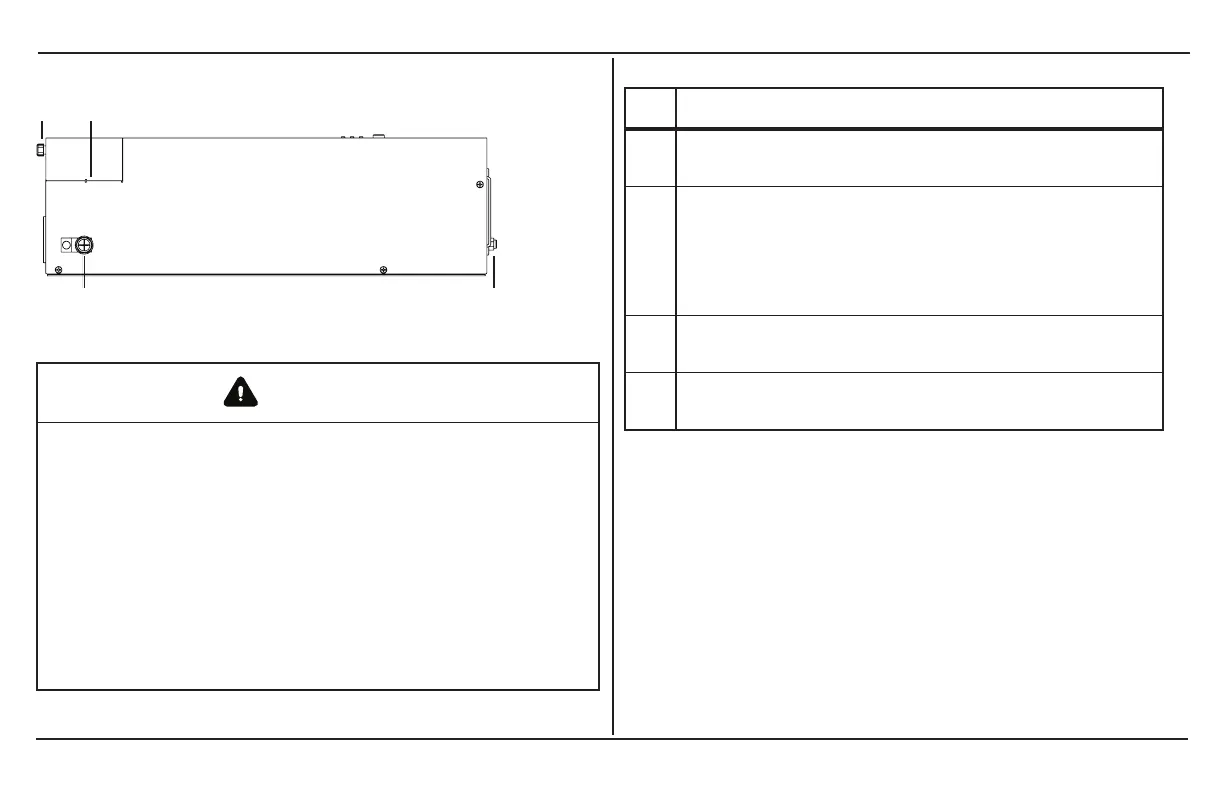

Figure 4 Side Panel
WARNING
ELECTRICAL SHOCK HAZARD
n Use a torque screwdriver to tighten the captive nut panel
screw to 0.56N-m torque to ensure a proper earth
connection and a required tool access to the wiring
compartment.
n Use a torque screwdriver to tighten the bolt on the DC
earth lug to a torque of 2.6 N-m of force.
n Apply an anti-corrosion compound to the copper wire prior
to connecting to the DC earth lug.
Failure to follow these instructions can result in death, serious
injury, or equipment damage.
Item Description
1
Captive nut panel screw holds the wiring compartment
cover in place. See WARNING above.
2
Wiring compartment cover protects the wiring
compartment from debris and keeps the cables secure.
Using the captive nut panel screw, the cover can be
opened and lifted out during wiring. See WARNING on the
left.
3
cReserved for future use. Supplementary protector
with reset button.
4
Earthing lug provides an earth path for the Freedom X
chassis to the DC system earth. See WARNING.
Table 3Side Panel Features

Xantrex Freedom X 2000 Specifications

General

Continuous Power	2000W
Surge Power	4000W
Input Voltage	12V DC
Output Voltage	120V AC
Output Frequency	60 Hz
Efficiency	90%
Waveform	Pure Sine Wave
Protections	Overload, Over Temperature, Short Circuit
