Xantrex Freedom X 2000 User Manual

Marine Installation
975-0822-01-01 39
Marine Installation
Figure 14 illustrates a typical marine installation with the following
components:
1 Equipment earth – Engine negative bus / DC earth bus
2 Freedom X
3 DC fuse/disconnect/DC circuit breaker
4
12V deep cycle battery bank (house) and protected by a DC fuse in the
positive cable
5 Battery isolator
6 DC alternator
7 To engine
8 Equipment earth – Engine negative bus / DC earth bus
9 Starting battery
10
AC load panel with branch circuit breakers (with downstream Type B
RCBOs) that supply only loads that run off the Freedom X
11
AC source panel that includes a max 30A (or a 15A if using a GFCI) circuit
breaker that supplies the Freedom X
12 Shore power – AC power supplied from a shore power connector
Not
shown
Drip shield (see next page)

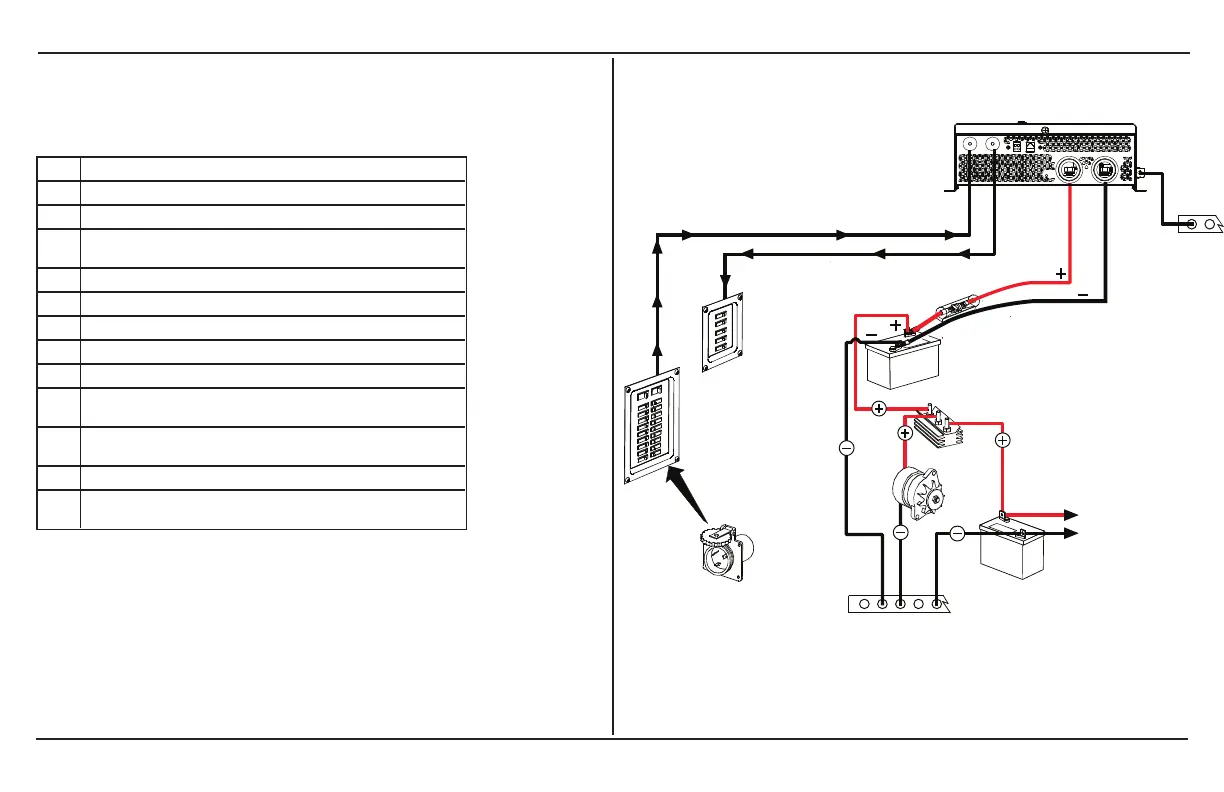

Figure 14 Typical Marine Installation
10
12
11
2
4
3
9
7
8
6
5
1

Xantrex Freedom X 2000 Specifications

General

Continuous Power	2000W
Surge Power	4000W
Input Voltage	12V DC
Output Voltage	120V AC
Output Frequency	60 Hz
Efficiency	90%
Waveform	Pure Sine Wave
Protections	Overload, Over Temperature, Short Circuit
