Freedom XDisplay Panel
42 Freedom X 2000 - 230V Owner's Guide
Freedom XDisplay Panel

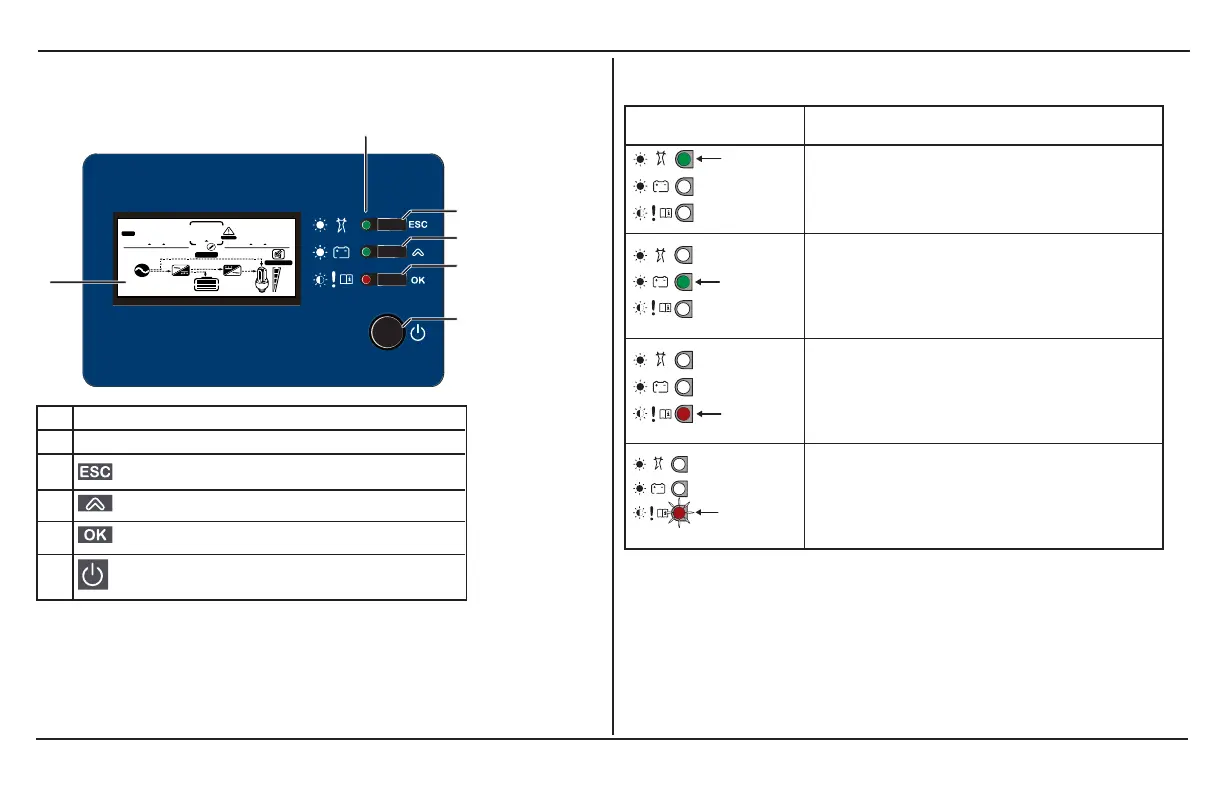

Figure 17 Display Panel
OUTPUTBATTLOAD
kW
100%
25%
Hz
VA
%
kW
Hz
VA
%
C
INPUTBATTTEMP
AC
BYPASS
ERROR
OVERLOAD
CHARGING
 

1
2
3
4
6
5
1 LCD screen
2 Status LED indicators
3
see "Function Buttons" on the facing page
4
see "Function Buttons" on the facing page
5
see "Function Buttons" on the facing page
6
see "Function Buttons" on the facing page
NOTE: Briefly pressing any function button activates backlight
illumination. After 60 s of inactivity, backlight illumination turns
off.
Status LED Indicators
Indicator Definition
Solid green. Indicates grid mode in which
shore power is available and passing
through to the loads.
Solid green. Indicates Battery mode
(Inverter mode) in which the inverter is
running and supplying power to the loads
from the battery.
Solid red. Indicates error or fault mode
and is accompanied by an error code
displayed on the LCD screen. For a list of
error codes, see Motor Loads on page 71.
Flashing red. Indicates a Warning
condition and is accompanied by an error
code and a sounding alarm. For a list of
error codes, see Motor Loads on page 71.

Xantrex Freedom X 2000 Specifications

General

Continuous Power	2000W
Surge Power	4000W
Input Voltage	12V DC
Output Voltage	120V AC
Output Frequency	60 Hz
Efficiency	90%
Waveform	Pure Sine Wave
Protections	Overload, Over Temperature, Short Circuit
