Xantrex Freedom X 2000 User Manual

Basic Installation Procedures
34 Freedom X 2000 - 230V Owner's Guide
Step 7: Connecting to Port(s) on the
Freedom X
Connecting to ACC Signal
With the ACC, the Freedom X can be wired to inhibit inverter
operation in the absence of a vehicle’s (or vessel's) +12VZ
ignition control signal. This feature can avoid unnecessary battery
drain that would otherwise occur if the inverter was operated
without a charging source such as the vehicle alternator.
1. Ensure that AC and DC power are both OFF.
2. Ensure the vehicle’s ignition is turned to OFF position. It is
highly recommended to remove battery power by
disconnecting the vehicle's battery cables. Refer to the
vehicle’s user manual for proper instructions on how to
disconnect the battery cables.
3. Locate the vehicle's ignition control wire from the vehicle’s
ignition circuit. This wire must be fused appropriately at no
more than 5A. Refer to the vehicle’s user manual for
guidance.
4. Locate the ACC input (ignition signal input) terminal on the
right side of the connector. The left terminal is not used at
this time. See Figure 13

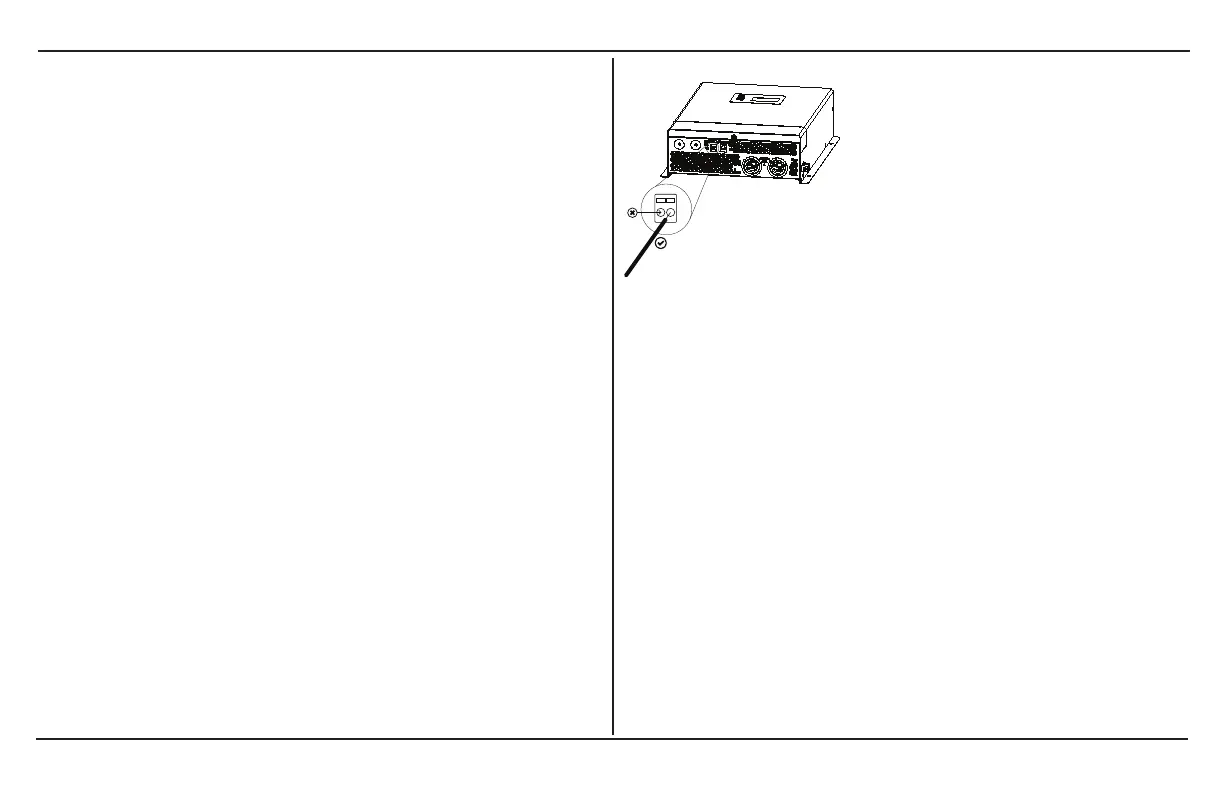

Figure 13 Ignition signal (ACC) input terminal
5. Using a 3mm slot long neck screwdriver, push into the
rectangular slot to release the spring clamp.
6. Insert the ignition control wire into the round ACC input
terminal slot.
7. Pull the screwdriver out to engage the spring clamp and
secure the wire to the terminal.

Xantrex Freedom X 2000 Specifications

General

Continuous Power	2000W
Surge Power	4000W
Input Voltage	12V DC
Output Voltage	120V AC
Output Frequency	60 Hz
Efficiency	90%
Waveform	Pure Sine Wave
Protections	Overload, Over Temperature, Short Circuit
