Basic Installation Procedures
975-0822-01-01 35
Description of Ignition Control Features
For information about the features and instructions on changing
the ignition control features, see Operation on page 41.
Ignition Auto-
on (ATO)
This setting allows the inverter to operate
(Battery mode) automatically when an
ignition control wire is connected to the
ACC input and a valid ignition signal is
constantly detected. The inverter works in
tandem with the vehicle’s ignition circuit.
Ignition Lock-
out (LOt)
This setting allows the inverter to operate
(Battery mode) when an ignition control
wire is connected to the ACC input
terminal and a valid ignition signal is
constantly detected.
When enabled, you have to manually
press the Power button on the display
panel to operate the inverter.
Off (OFF)
To completely disable the ignition control
features do the following:
Set Ignition Control to Off (OFF) using the
Select buttons on the Display panel.
Table 9Ignition Control Features
Connecting to the Remote Port
The Freedom X can accommodate the Freedom X Remote Panel
with cable (PN: 808-0817-01) (sold separately; comes with 7.6m-
cable) or the Freedom X Remote Panel unit (PN: 808-0817) (sold
separately; unit only without cable).

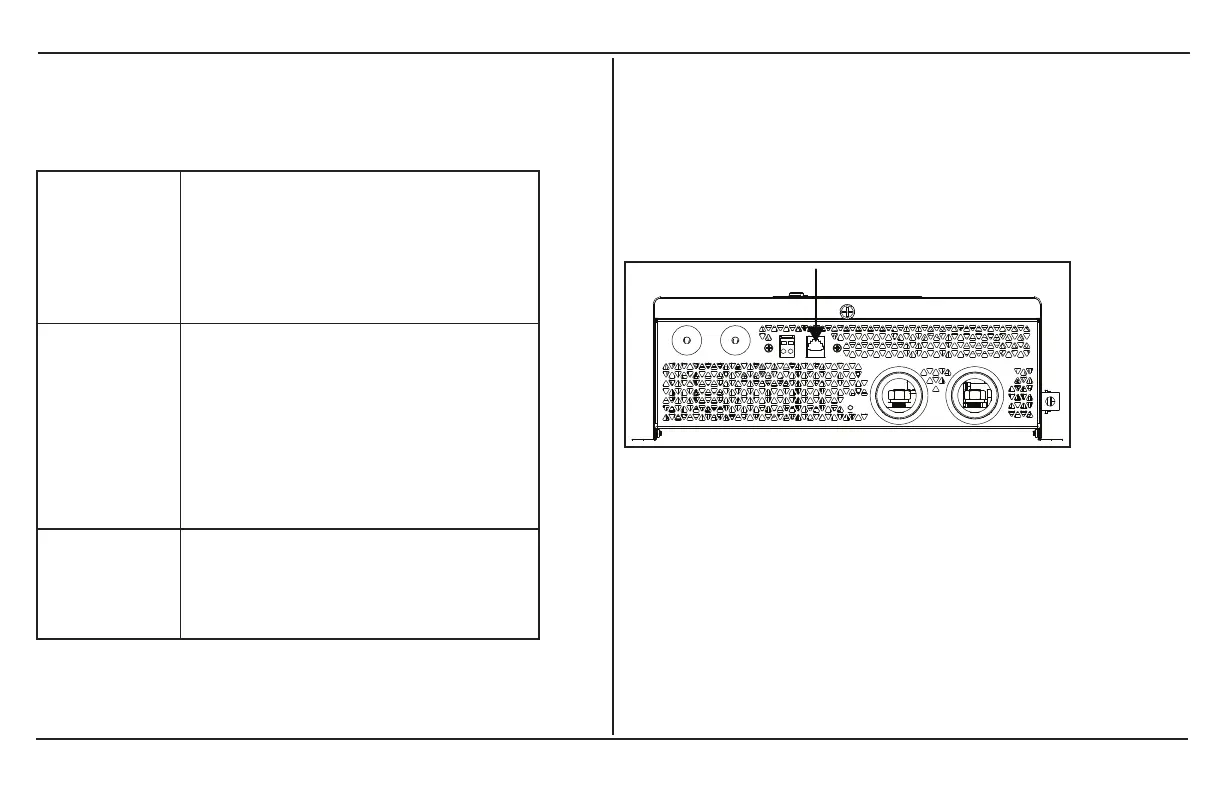

To connect the remote panel to the remote port:
n Plug the remote panel unit's cable connector to the RJ12
Remote port on the unit.
NOTE: When the remote panel is connected, turn the inverter’s
Power button to to Standby (up position). This allows the remote
panel to control the inverter’s power status.
