Display Panel
8 Freedom X 2000 - 230V Owner's Guide
Display Panel
OUTPUTBATTLOAD
kW
100%
25%
Hz
VA
%
kW
Hz
VA
%
C
INPUTBATTTEMP
AC
BYPASS
ERROR
OVERLOAD
CHARGING
888 888
88
1
2 3 4
5

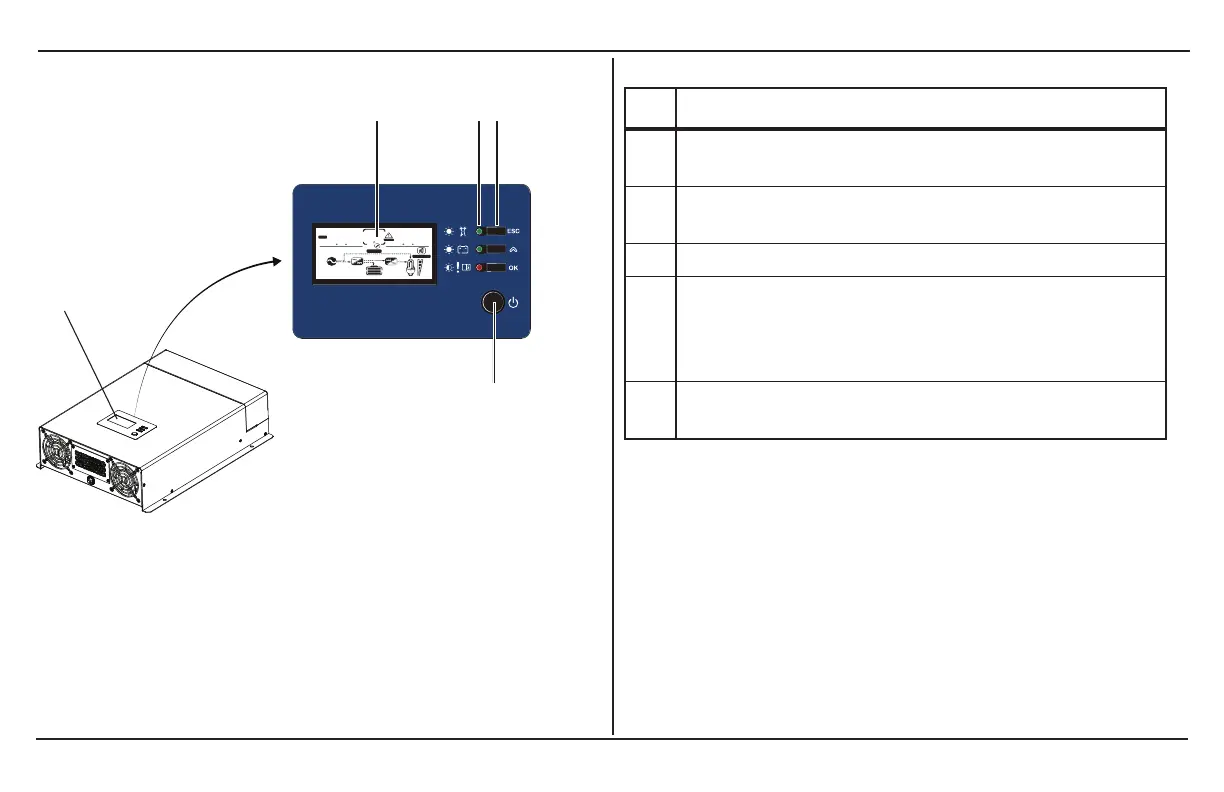

Figure 3 Display Panel
Item Description
1
Display panel displays status information on the screen. It
is comprised of a display screen, LEDs, and buttons.
2
Multi-function LCD screen shows status information and
error codes.
3 Status LEDs indicate the mode of operation.
4
Three function buttons change status information
displayed on the screen. Also, changes inverter settings.
See Freedom XDisplay Panel on page 42 for detailed
information on the panel’s buttons.
5
Power[Standby]button is pressed for turning on the unit.
The inverter turns on for the loads automatically.
Table 2Display Panel Features
