Xantrex Freedom X 2000 User Manual

AC and DC Panel
6 Freedom X 2000 - 230V Owner's Guide
AC and DC Panel
6
321
7
14 13
12
13
8
11
910
4
5
5
12
15

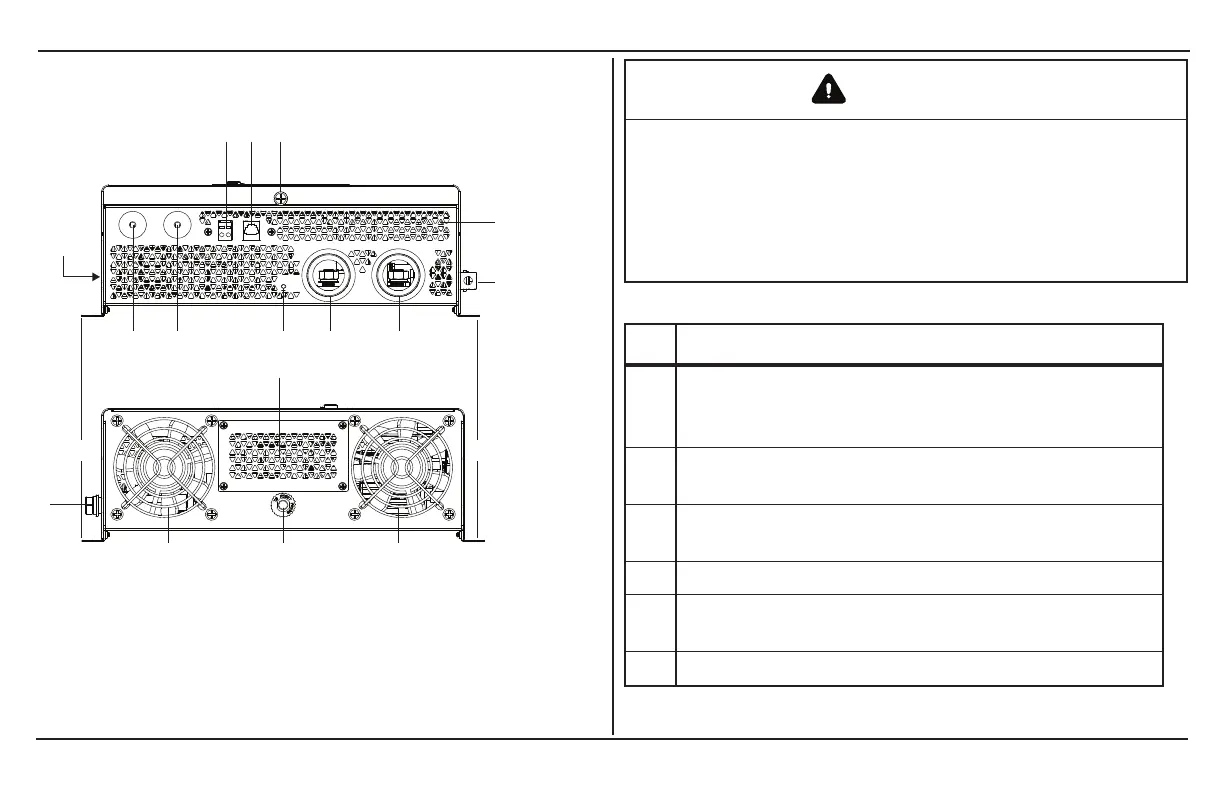

Figure 2 AC and DC Panel
WARNING
ELECTRICAL SHOCK HAZARD
Use a torque screwdriver to tighten the captive nut panel screw to
0.56N-m torque of force to ensure a proper earth connection and a
required tool access to the wiring compartment.
Failure to follow these instructions can result in death, serious
injury, or equipment damage.
Item Description
1
ACC input terminal for connecting ignition control wiring.
Ignition Control Switch (ACC) for connecting [ON (|)] and
disconnecting [OFF (O)] the ignition signal.
2
Remote port allows you to connect an accessory remote
control/display device.
3
Captive nut panel screw holds the wiring compartment
cover in place. See WARNING above.
4 Ventilation grille (openings) must not be obstructed.
5
Earthing lug provides an earth path for the Freedom X
chassis to the DC system earth. See WARNING.
6 DC terminal opening for routing (–) negative DC cable.
Table 1AC and DC Panel Features

Xantrex Freedom X 2000 Specifications

General

Continuous Power	2000W
Surge Power	4000W
Input Voltage	12V DC
Output Voltage	120V AC
Output Frequency	60 Hz
Efficiency	90%
Waveform	Pure Sine Wave
Protections	Overload, Over Temperature, Short Circuit
