Marine Installation
40 Freedom X 2000 - 230V Owner's Guide
Drip Shield Installation
The drip shields help to protect the unit from dripping or splashing
liquids, which will cause a shock hazard when moisture comes in
contact with electrical circuits in the unit. The drip shields are
especially useful in marine installations where water from
condensation, rain, or sea may come into contact with the
Freedom X.
WARNING
ELECTRICAL SHOCK HAZARD
Place this unit in normally dry areas only. Operating the unit under
wet conditions may expose you to a shock hazard. Installing drip
shields may not entirely protect you from this hazard. Do not
operate the unit when it is wet.
Failure to follow these instructions can result in death, serious
injury, or equipment damage.
You may purchase the drip shield set by contacting customer
support. When ordering, mention part number 808-1050.

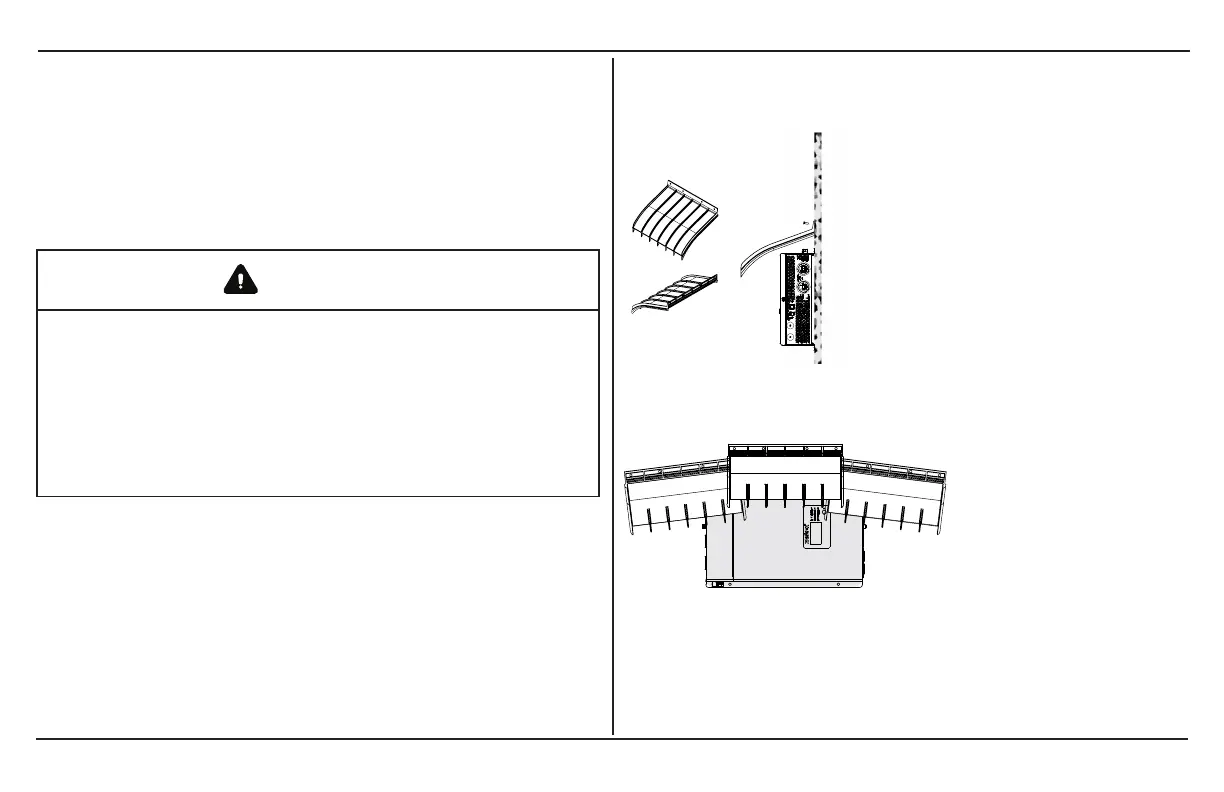

Figure 15 Drip shields
To install the drip shields:
1. Gather the four screws needed
to fasten a single drip shield to a
wall.
2. Locate an appropriate setting for
the drip shields above the
Freedom X making sure you
cover the entire width of the unit.
You can overlay the shields as
shown in Figure 16 .
3. Fasten the screws through the
holes in the drip shield into the
wall. See Figure 15 .
Figure 16 Typical Drip Shield Placement on a Freedom X

Xantrex Freedom X 2000 Specifications

General

Continuous Power	2000W
Surge Power	4000W
Input Voltage	12V DC
Output Voltage	120V AC
Output Frequency	60 Hz
Efficiency	90%
Waveform	Pure Sine Wave
Protections	Overload, Over Temperature, Short Circuit
