Xantrex Freedom X 2000 User Manual

Freedom XDisplay Panel
975-0822-01-01 43
Function Buttons
Button Definition
Return to default screen or exit setting mode.
Scroll to next screen or next selection.
Press and hold for 3s to scroll back one step.
To enter the Configuration mode or to confirm the
setting.
Turns on inverter operation or to Standby.
LCD Screen
The LCD Screen changes depending on the operating mode of the
inverter.

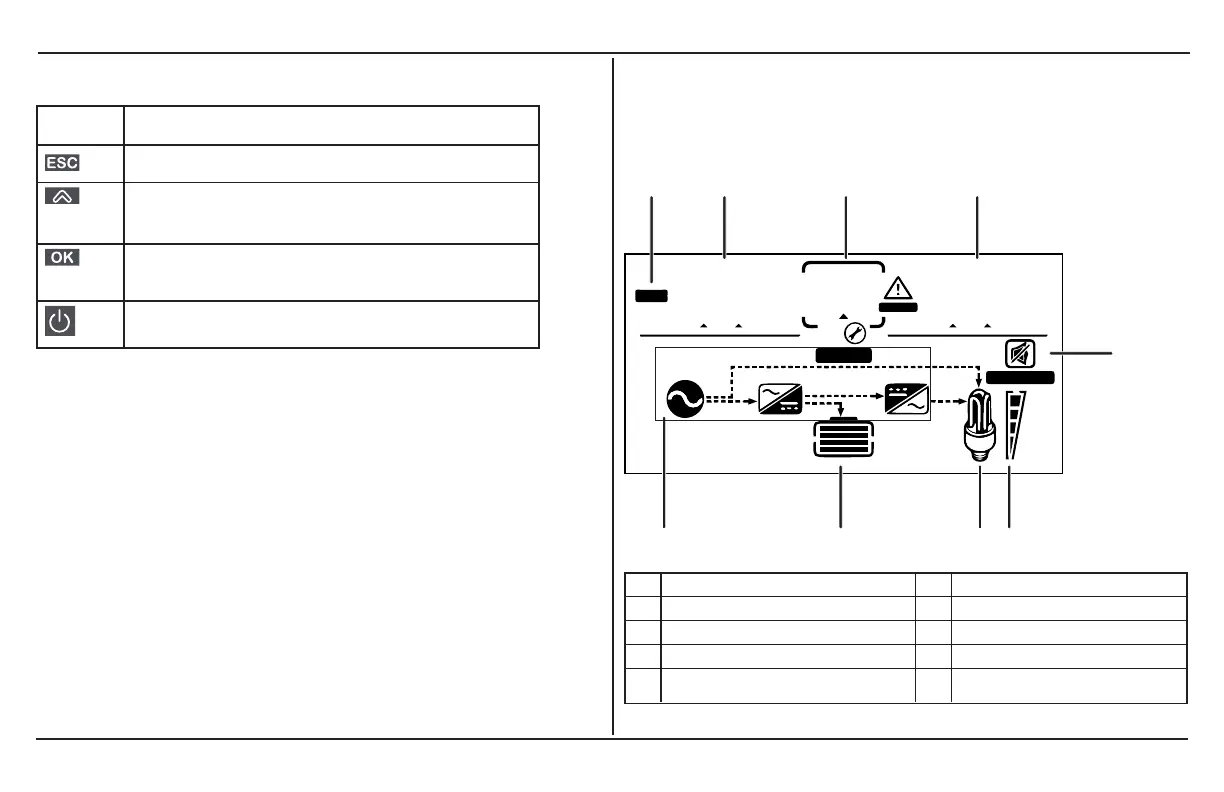

Figure 18 Parts of the LCD Screen
OUTPUTBATTLOAD
kW
100%
25%
Hz
VA
%
kW
Hz
VA
%
C
INPUTBATTTEMP
AC
BYPASS
ERROR
OVERLOAD
CHARGING
 

1
5
2 3 4
6789
1 AC IN or AC OUT indicator 6 load power level indicator
2 left part of LCD display 7 load indicator
3 middle part of LCD display 8 battery level indicator
4 right part of LCD display 9 mode indicator
5 alarm off indicator

Xantrex Freedom X 2000 Specifications

General

Continuous Power	2000W
Surge Power	4000W
Input Voltage	12V DC
Output Voltage	120V AC
Output Frequency	60 Hz
Efficiency	90%
Waveform	Pure Sine Wave
Protections	Overload, Over Temperature, Short Circuit
