Basic Installation Procedures
34 Freedom XC Owner's Guide

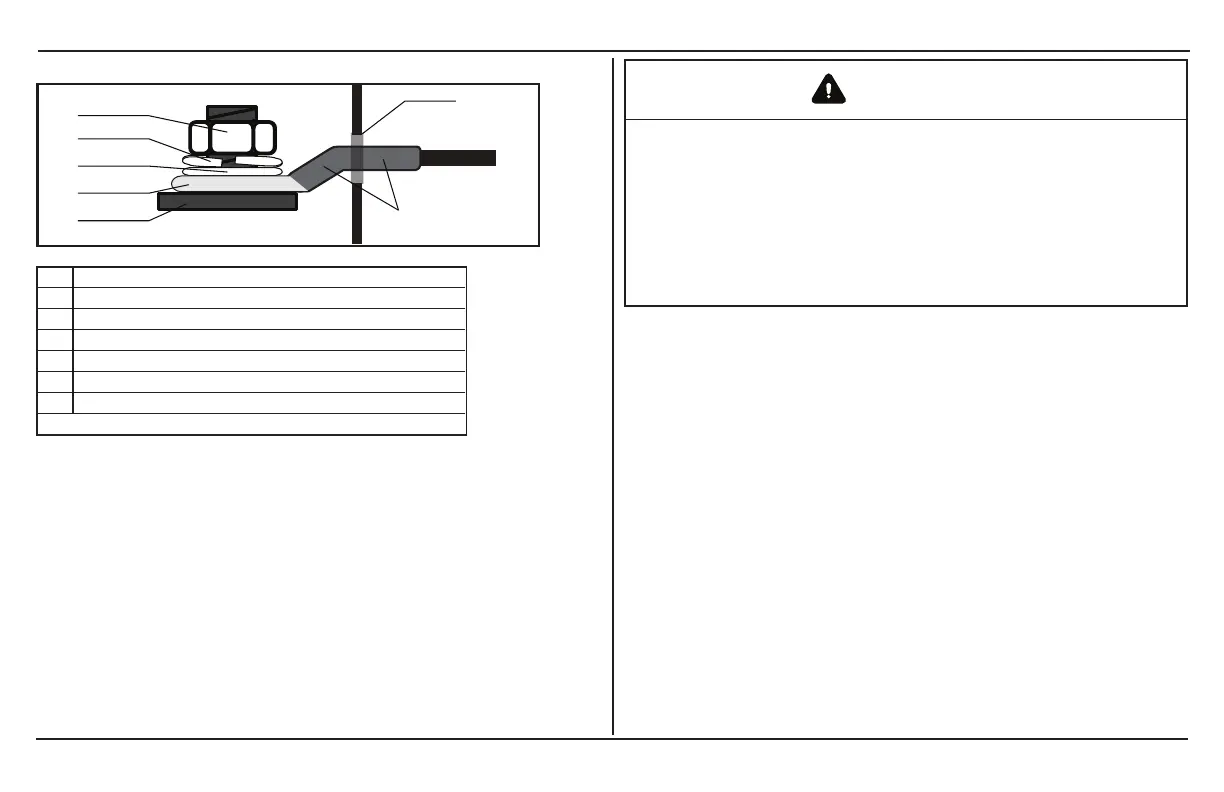

Figure 11 DC Cable Connections
1 DC terminal bolt nut
2 lock washer
3 flat washer
4 cable ring lug
5 DC terminal
6 DC knockout hole
7 DC cable with heat shrink insulation covering the lug stem
NOTE: The DC cable lug stem must be fully insulated with the heat shrink.
12. Before proceeding, double check that the cable you have
just installed connects the positive DC terminal of the
inverter/charger to the disconnect/battery selector switch,
fuse holder, and that the other end of the fuse holder is
connected to the positive terminal of the battery.
WARNING
FIRE HAZARD
Do not complete the next step if flammable fumes are present.
Explosion or fire may result if the disconnect/battery selector switch
is not in the off position. Thoroughly ventilate the battery
compartment before making this connection.
Failure to follow these instructions can result in death, serious
injury, or equipment damage.
13. Route the negative cable through the right side strain relief
clamp and connect the cable from the negative post of the
battery to the negative DC terminal of the inverter/charger.
14. Fasten the DC terminal nut (set aside earlier) to the terminal
bolt. Tighten the nut to a torque of 8–9 N-m(71–80 in-lb ) of
force. Do not overtighten. Make the connection snug enough
so the cable lug does not move around on the DC terminal.
Center it through the DC knockout hole and do not let it
touch the edge.
To Next Page
