Xerox 7800 User Manual

Maintenance
224 Xerox
®
WorkCentre
®
7800/7800i Series Color Multifunction Printer
User Guide

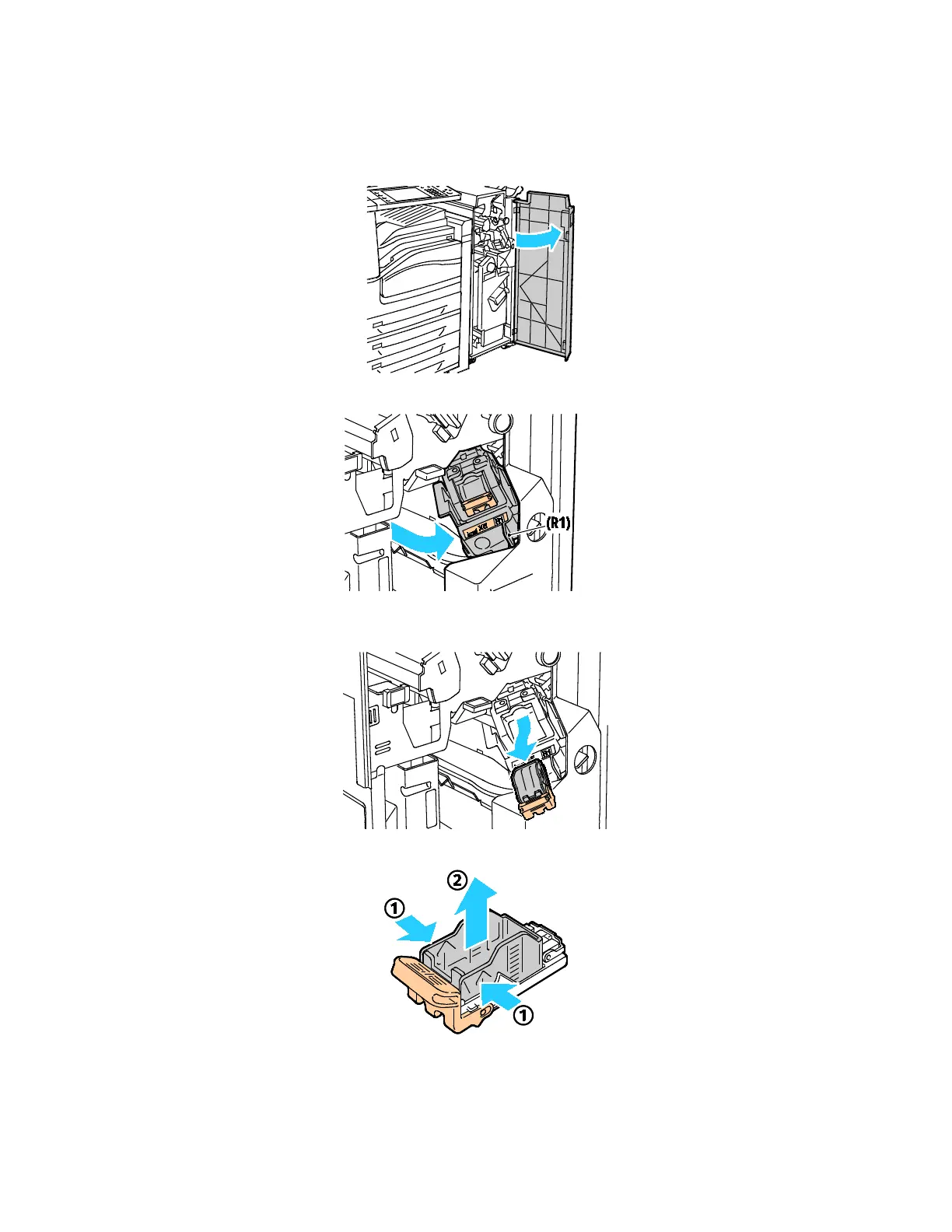

Replacing Staples in the Main Stapler of the Professional Finisher
1. Open the front door of the finisher.
2. Hold the staple cartridge unit by orange lever R1 and push it to the right.
3. Grip the staple cartridge by the orange tabs and pull it firmly toward you to remove it. Check inside
the finisher for any loose staples and remove them.
4. Pinch both sides of the staple case (1) and remove the staple case from the cartridge (2).

Xerox 7800 Specifications

General

Maximum Print Resolution	1200 x 2400 dpi
Duplex Printing	Yes
Fax Speed	33.6 Kbps
Functions	Print, Copy, Scan, Fax
Connectivity	Ethernet, USB
Display	Color touch screen
