Xerox 7800 User Manual

Troubleshooting
256 Xerox
®
WorkCentre
®
7800/7800i Series Color Multifunction Printer
User Guide

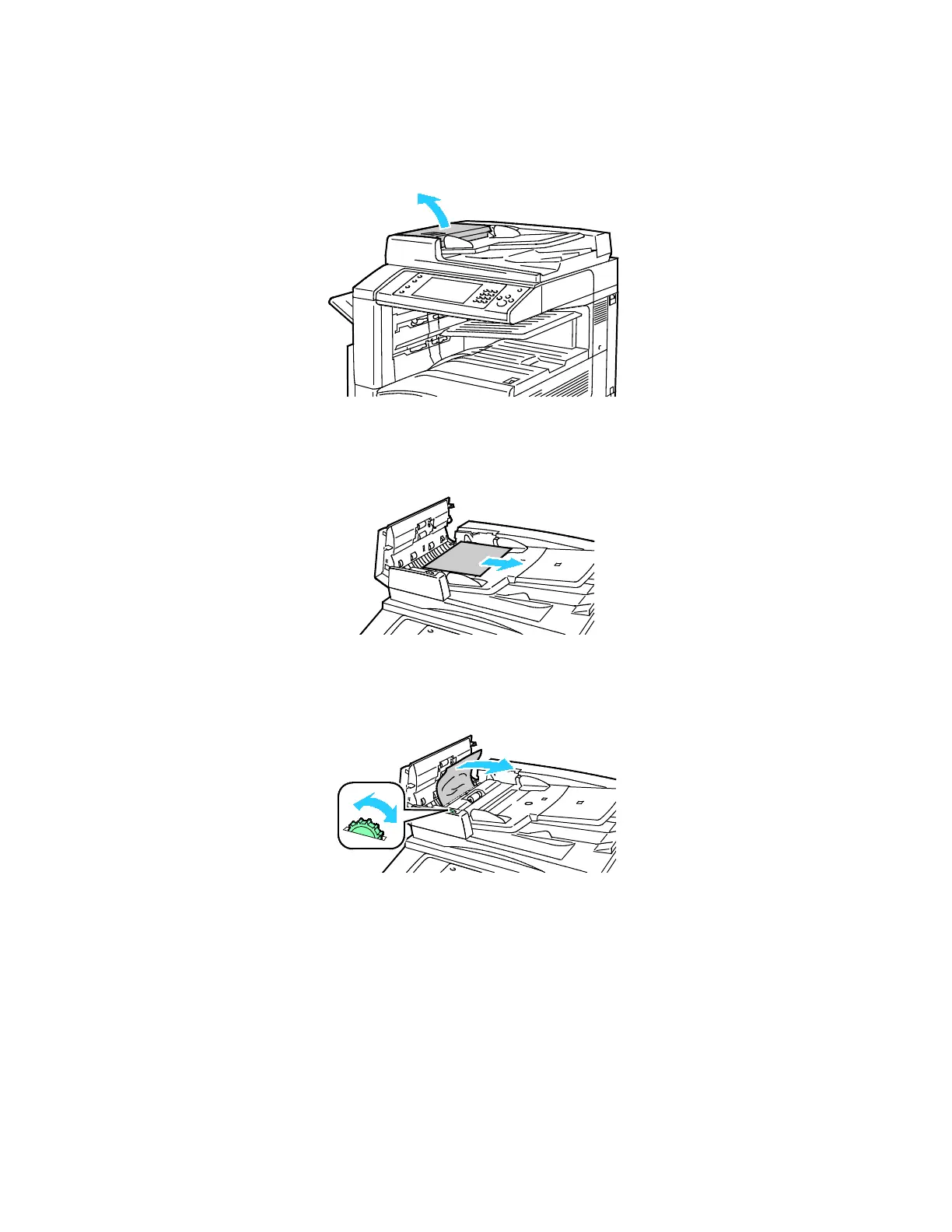

Clearing Jams in the Document Feeder
1. Lift the lever and open the top cover of the document feeder as shown.
2. If the original is not caught in the entry to the document feeder, pull it straight out in the direction
shown.
3. If the message on the control panel instructs you to turn the green wheel, turn it in the direction
shown. Turning the green wheel moves the original out of the feeder.
4. If the message instructs you to open the inner cover, lift the lever with the green tab to open the
inner cover.

Xerox 7800 Specifications

General

Maximum Print Resolution	1200 x 2400 dpi
Duplex Printing	Yes
Fax Speed	33.6 Kbps
Functions	Print, Copy, Scan, Fax
Connectivity	Ethernet, USB
Display	Color touch screen
