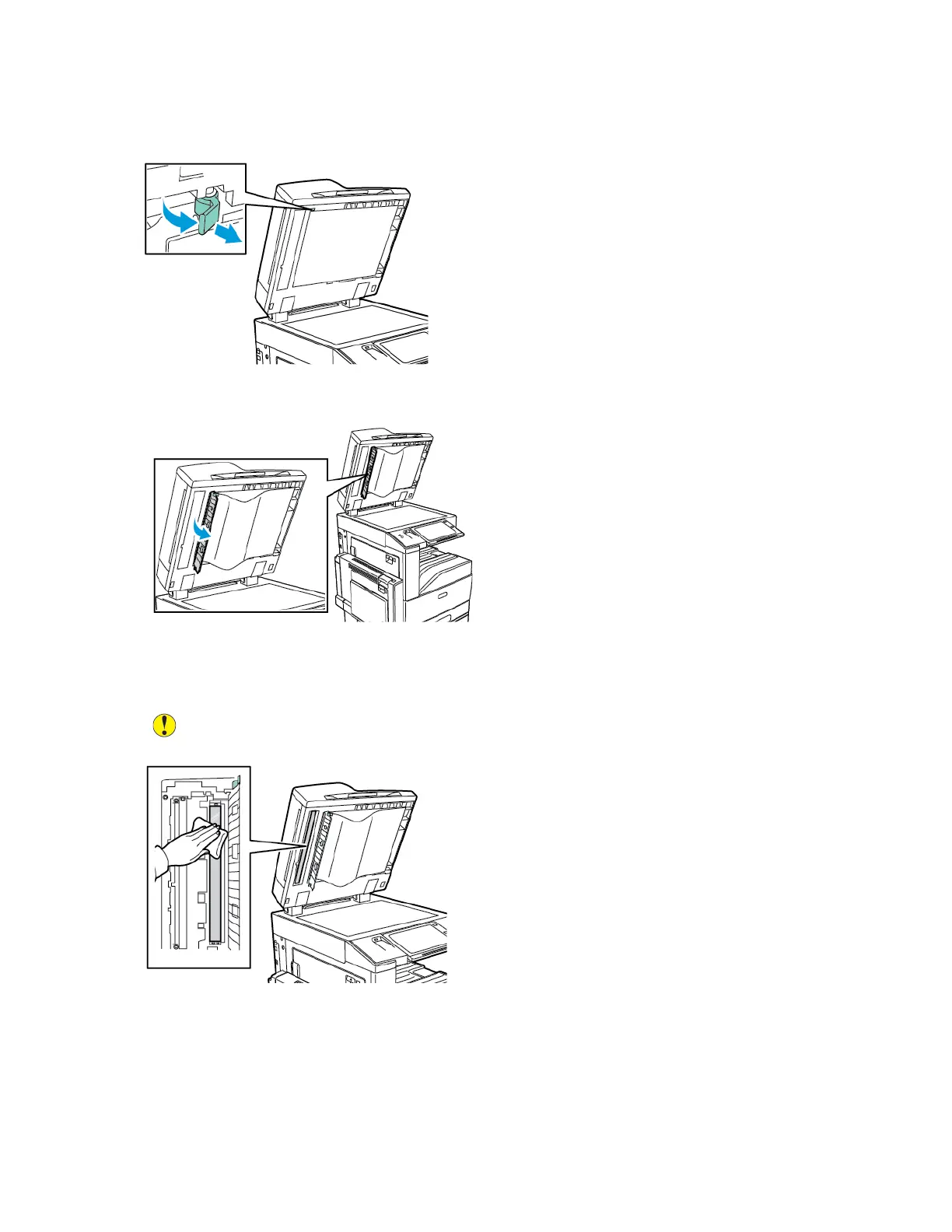

1. To access the second-side scanning lens assembly, lower the lever under the left side of the
document cover.
2. To separate the left end of the document cover from the lens assembly, continue to lower the
lever.
3. Using a soft cloth moistened with water, wipe the mirrored glass, metal strip, both sides of the
white-plastic strip, and the rollers. If dirt is difficult to remove, moisten a soft cloth with a small
amount of neutral detergent. Then wipe the parts dry with a soft cloth.
Caution: To prevent damage to the film around the glass, do not press heavily on the
mirrored glass.
214
Xerox
®
EC8036/EC8056 Color Multifunction Printer
User Guide
Maintenance
