4-10 12/04 FaxCentre F110

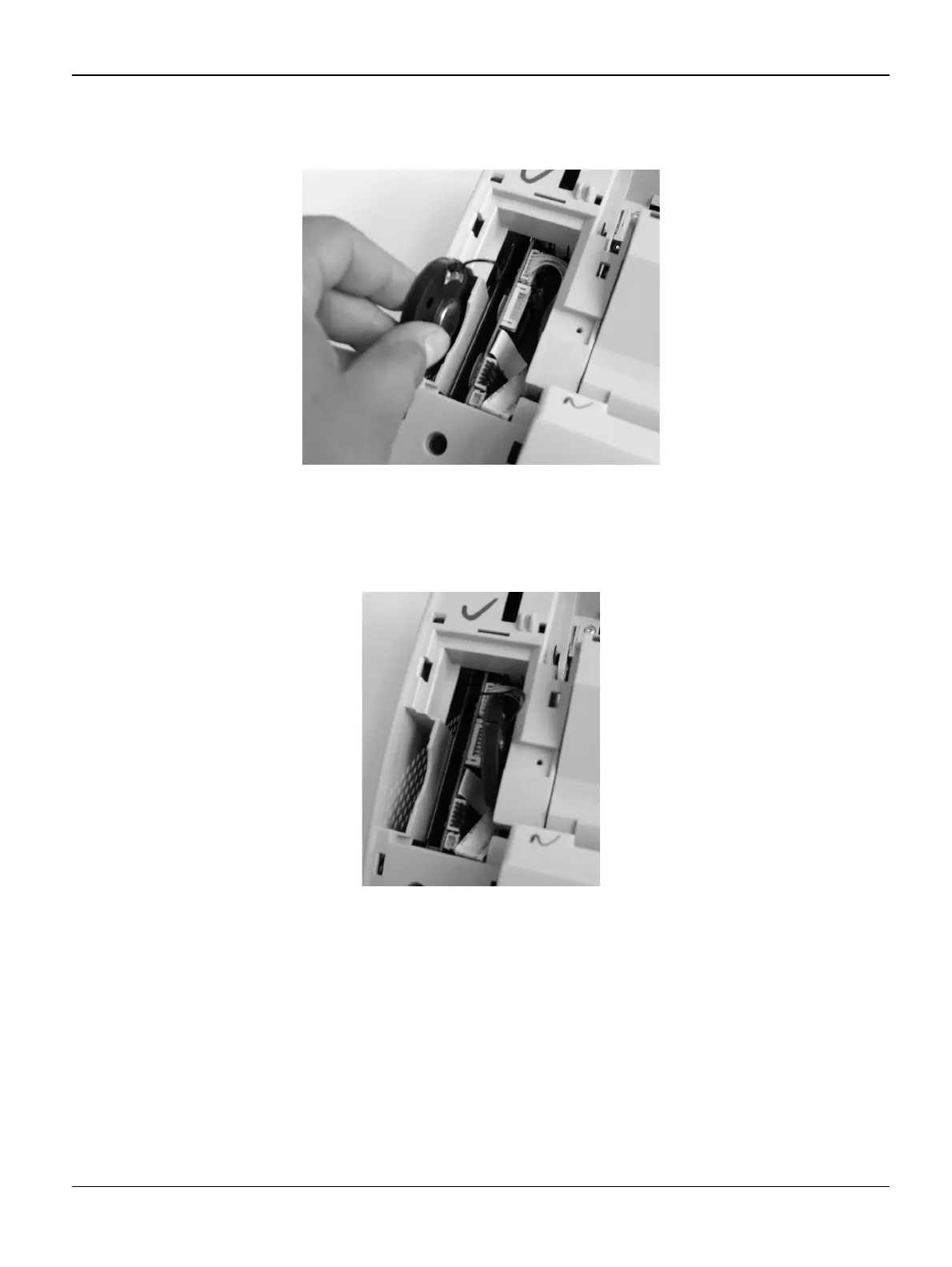

2. Lift the Loudspeaker and put it on the side of the Main board.

Figure 5

3. Disconnect the cables from the top of the main board.

4. Lift up the Main housing.

Figure 6
