System Overview
3-9
EP Process

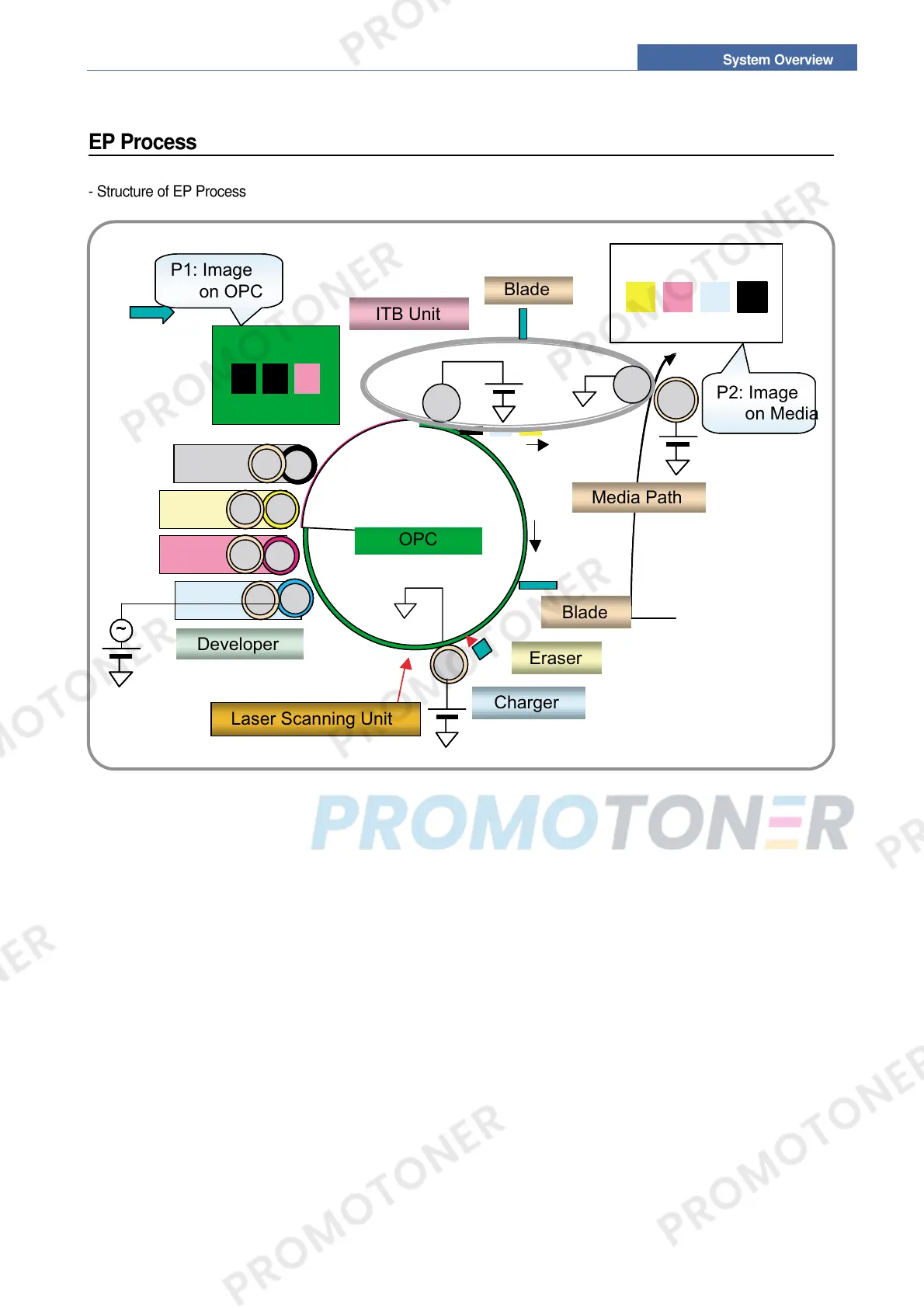

- Structure of EP Process
Charger
Developer
Laser Scanning Unit
OPC
ITB Unit
Eraser
Blade
Blade
Media Path
P2: Image
on Media
P1: Image
on OPC
~
Charger
Developer
Laser Scanning Unit
OPC
ITB Unit
Eraser
Blade
Blade
Media Path
P2: Image
on Media
P1: Image
on OPC
~~
