Xerox Phaser 6110 Service Documentation

Disassembly and Reassembly

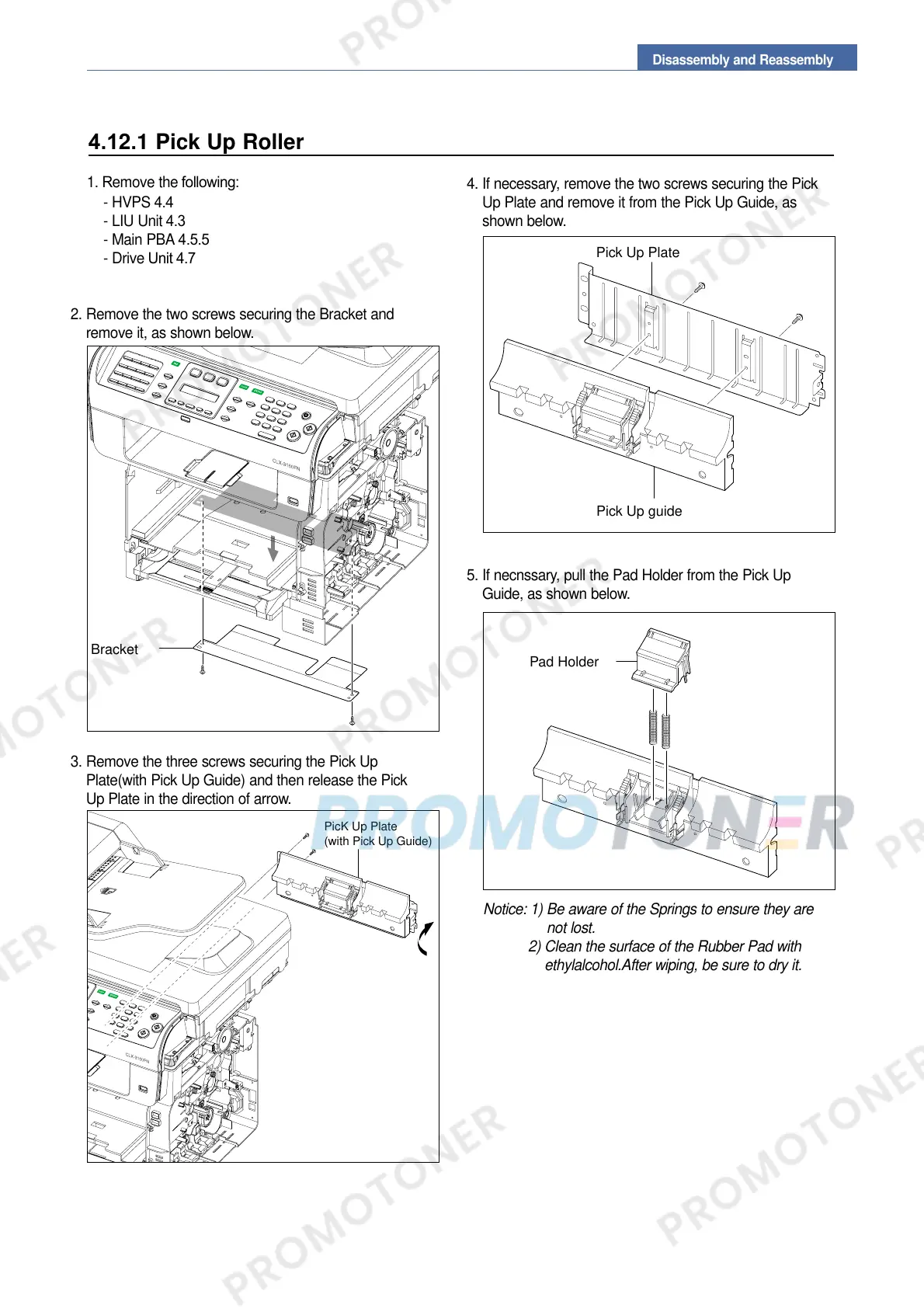

4.12.1 Pick Up Roller
1. Remove the following:
- HVPS 4.4
- LIU Unit 4.3
- Main PBA 4.5.5
- Drive Unit 4.7
2. Remove the two screws securing the Bracket and
remove it, as shown below.
3. Remove the three screws securing the Pick Up
Plate(with Pick Up Guide) and then release the Pick
Up Plate in the direction of arrow.
4. If necessary, remove the two screws securing the Pick
Up Plate and remove it from the Pick Up Guide, as
shown below.
5. If necnssary, pull the Pad Holder from the Pick Up
Guide, as shown below.
Notice: 1) Be aware of the Springs to ensure they are
not lost.
2) Clean the surface of the Rubber Pad with
ethylalcohol.After wiping, be sure to dry it.
Bracket
PicK Up Plate
(with Pick Up Guide)
Pick Up guide
Pick Up Plate
Pad Holder

Xerox Phaser 6110 Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	2400 x 600 DPI
Time to first page (black, normal)	14 s
Time to first page (color, normal)	26 s
Print speed (black, normal quality, A4/US Letter)	17 ppm
Print speed (color, normal quality, A4/US Letter)	4 ppm
Internal memory	32 MB
Maximum internal memory	- MB
Sound power level (standby)	26 dB
Sound pressure level (printing)	47 dB
Total input capacity	150 sheets
Total output capacity	100 sheets
Maximum duty cycle	24200 pages per month
Maximum print size	216 x 356 mm
Media weight (tray 1)	60 - 163 g/sm2
Paper tray media types	Card stock, Envelopes, Plain paper, Transparencies
Non-ISO print media sizes	Folio (media size), Letter (media size)
ISO A-series sizes (A0...A9)	A4, A5
Maximum ISO A-series paper size	A4
Network ready	No
Power requirements	110 - 220 V, 50/60 Hz
Compatible operating systems	Windows 2000/XP/Vista Mac OS 10.3 - 10.4 Linux: Redhat 7.1 Mandrake 8.0 SuSE 7.1 Caldera Open Linux 3.1 Turbo Linux 7.0 Slackware 8.1
Acoustic power emissions (active, print, copy or scan)	34/56 dB
Sustainability certificates	ENERGY STAR
Power consumption (standby)	17 W
Power consumption (printing)	300 W
Display	-
Certification	FCC, CE, CB
Operating temperature (T-T)	10 - 32 °C
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Dimensions (WxDxH)	390 x 344 x 265 mm
