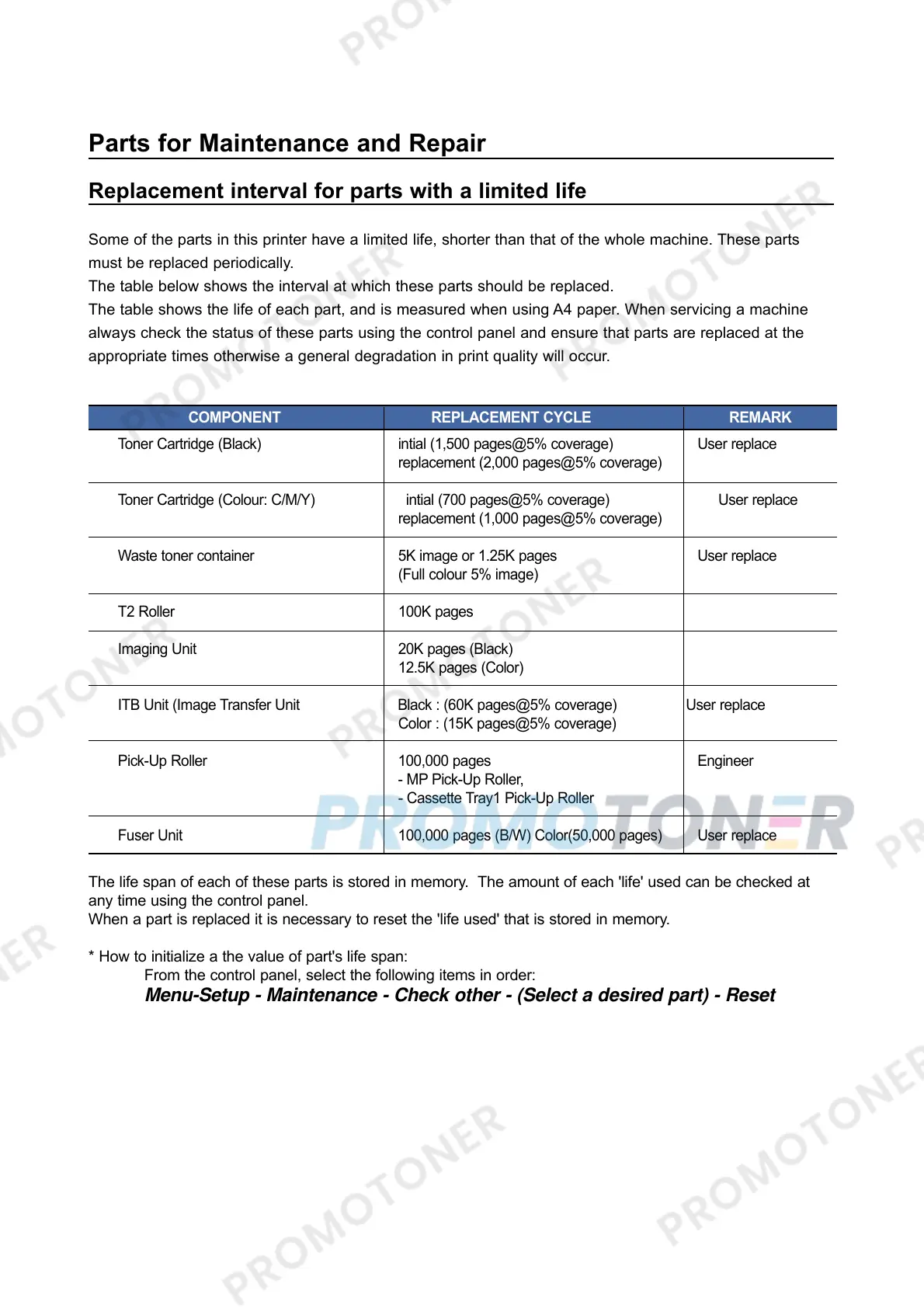

Xerox Phaser 6110 Service Documentation

Parts for Maintenance and Repair
Replacement interval for parts with a limited life
Some of the parts in this printer have a limited life, shorter than that of the whole machine. These parts
must be replaced periodically.
The table below shows the interval at which these parts should be replaced.
The table shows the life of each part, and is measured when using A4 paper. When servicing a machine
always check the status of these parts using the control panel and ensure that parts are replaced at the
appropriate times otherwise a general degradation in print quality will occur.
The life span of each of these parts is stored in memory. The amount of each 'life' used can be checked at
any time using the control panel.
When a part is replaced it is necessary to reset the 'life used' that is stored in memory.
* How to initialize a the value of part's life span:
From the control panel, select the following items in order:
Menu-Setup - Maintenance - Check other - (Select a desired part) - Reset
COMPONENT REPLACEMENT CYCLE REMARK
Toner Cartridge (Black) intial (1,500 pages@5% coverage) User replace
replacement (2,000 pages@5% coverage)
Toner Cartridge (Colour: C/M/Y) intial (700 pages@5% coverage) User replace
replacement (1,000 pages@5% coverage)
Waste toner container 5K image or 1.25K pages User replace
(Full colour 5% image)
T2 Roller 100K pages
Imaging Unit 20K pages (Black)
12.5K pages (Color)
ITB Unit (Image Transfer Unit Black : (60K pages@5% coverage) User replace
Color : (15K pages@5% coverage)
Pick-Up Roller 100,000 pages Engineer
- MP Pick-Up Roller,
- Cassette Tray1 Pick-Up Roller
Fuser Unit 100,000 pages (B/W) Color(50,000 pages) User replace

Xerox Phaser 6110 Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	2400 x 600 DPI
Time to first page (black, normal)	14 s
Time to first page (color, normal)	26 s
Print speed (black, normal quality, A4/US Letter)	17 ppm
Print speed (color, normal quality, A4/US Letter)	4 ppm
Internal memory	32 MB
Maximum internal memory	- MB
Sound power level (standby)	26 dB
Sound pressure level (printing)	47 dB
Total input capacity	150 sheets
Total output capacity	100 sheets
Maximum duty cycle	24200 pages per month
Maximum print size	216 x 356 mm
Media weight (tray 1)	60 - 163 g/sm2
Paper tray media types	Card stock, Envelopes, Plain paper, Transparencies
Non-ISO print media sizes	Folio (media size), Letter (media size)
ISO A-series sizes (A0...A9)	A4, A5
Maximum ISO A-series paper size	A4
Network ready	No
Power requirements	110 - 220 V, 50/60 Hz
Compatible operating systems	Windows 2000/XP/Vista Mac OS 10.3 - 10.4 Linux: Redhat 7.1 Mandrake 8.0 SuSE 7.1 Caldera Open Linux 3.1 Turbo Linux 7.0 Slackware 8.1
Acoustic power emissions (active, print, copy or scan)	34/56 dB
Sustainability certificates	ENERGY STAR
Power consumption (standby)	17 W
Power consumption (printing)	300 W
Display	-
Certification	FCC, CE, CB
Operating temperature (T-T)	10 - 32 °C
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Dimensions (WxDxH)	390 x 344 x 265 mm
