Disassembly and Reassembly

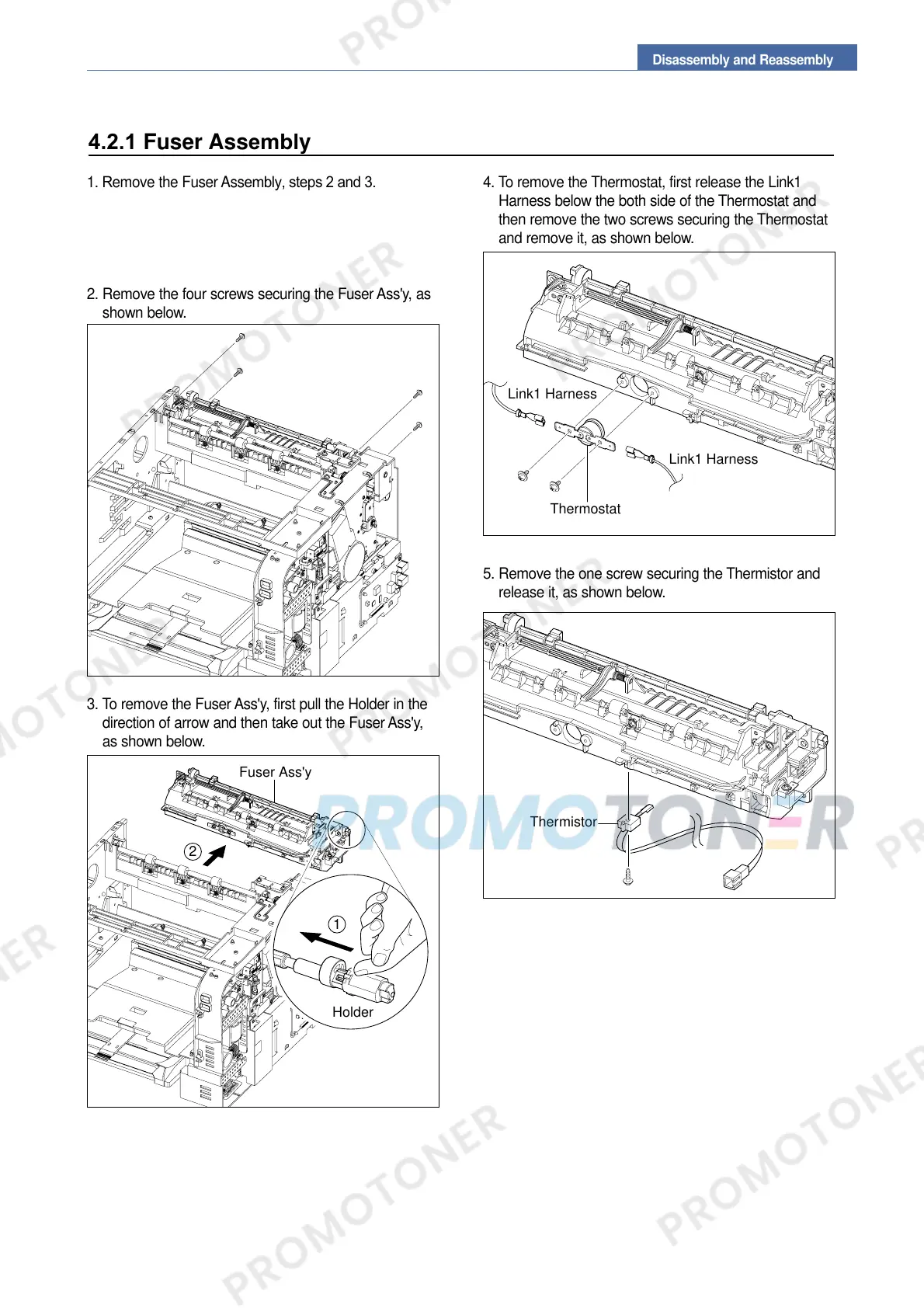

4.2.1 Fuser Assembly
1. Remove the Fuser Assembly, steps 2 and 3.
2. Remove the four screws securing the Fuser Ass'y, as
shown below.
3. To remove the Fuser Ass'y, first pull the Holder in the
direction of arrow and then take out the Fuser Ass'y,
as shown below.
4. To remove the Thermostat, first release the Link1
Harness below the both side of the Thermostat and
then remove the two screws securing the Thermostat
and remove it, as shown below.
5. Remove the one screw securing the Thermistor and
release it, as shown below.
2
1
Holder
Fuser Ass'y
Link1 Harness
Thermostat
Link1 Harness
Thermistor
To Next Page
