Xerox Phaser 6110 Service Documentation

Disassembly and Reassembly

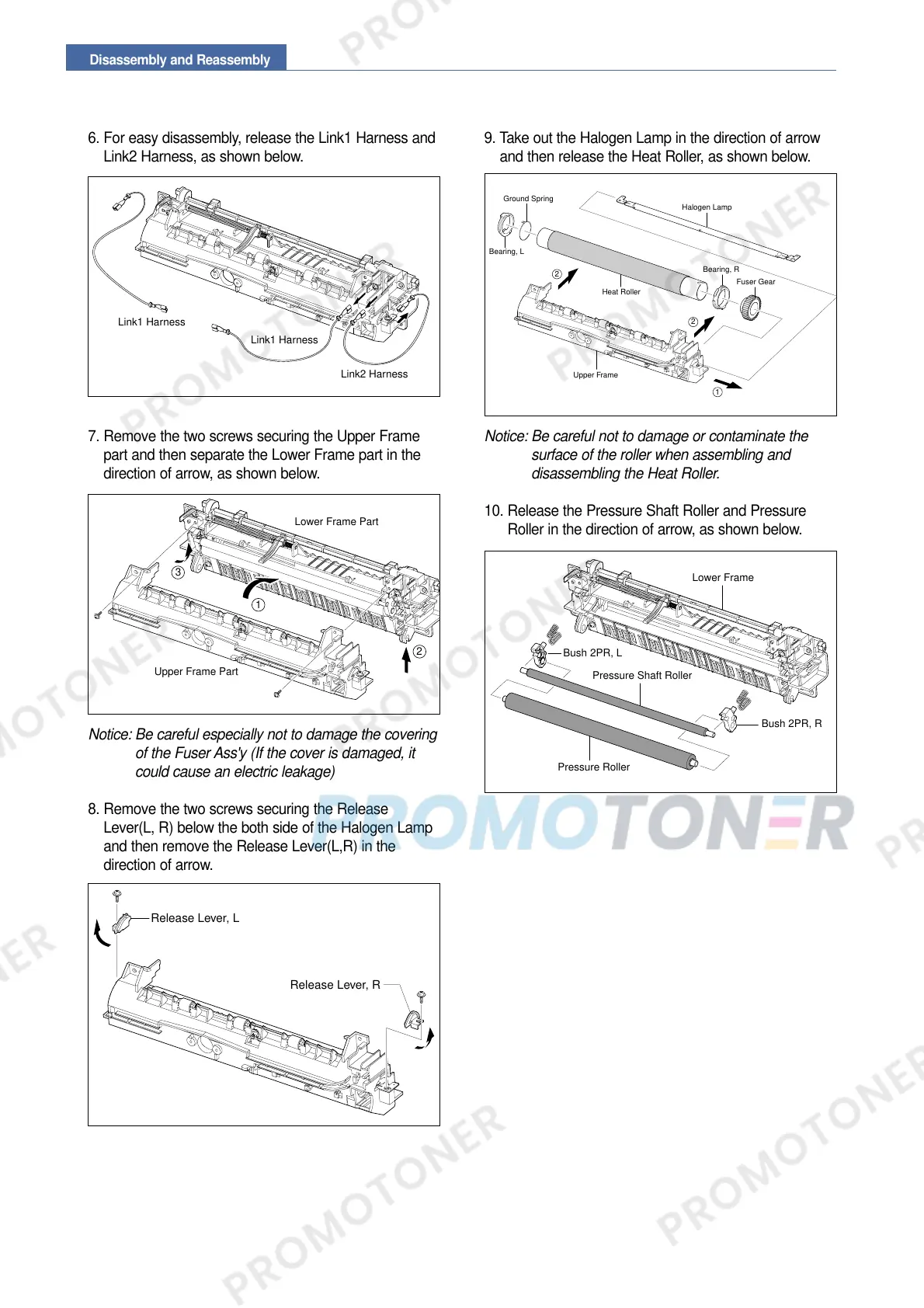

6. For easy disassembly, release the Link1 Harness and
Link2 Harness, as shown below.
7. Remove the two screws securing the Upper Frame
part and then separate the Lower Frame part in the
direction of arrow, as shown below.
Notice: Be careful especially not to damage the covering
of the Fuser Ass'y (If the cover is damaged, it
could cause an electric leakage)
8. Remove the two screws securing the Release
Lever(L, R) below the both side of the Halogen Lamp
and then remove the Release Lever(L,R) in the
direction of arrow.
9. Take out the Halogen Lamp in the direction of arrow
and then release the Heat Roller, as shown below.
Notice: Be careful not to damage or contaminate the
surface of the roller when assembling and
disassembling the Heat Roller.
10. Release the Pressure Shaft Roller and Pressure
Roller in the direction of arrow, as shown below.
Link1 Harness
Link1 Harness
Link2 Harness
1
2
3
Upper Frame Part
Lower Frame Part
Release Lever, R
Release Lever, L
Heat Roller
2
2
1
Halogen Lamp
Upper Frame
Fuser Gear
Bearing, R
Bearing, L
Ground Spring
Pressure Roller
Pressure Shaft Roller
Lower Frame
Bush 2PR, L
Bush 2PR, R

Xerox Phaser 6110 Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	2400 x 600 DPI
Time to first page (black, normal)	14 s
Time to first page (color, normal)	26 s
Print speed (black, normal quality, A4/US Letter)	17 ppm
Print speed (color, normal quality, A4/US Letter)	4 ppm
Internal memory	32 MB
Maximum internal memory	- MB
Sound power level (standby)	26 dB
Sound pressure level (printing)	47 dB
Total input capacity	150 sheets
Total output capacity	100 sheets
Maximum duty cycle	24200 pages per month
Maximum print size	216 x 356 mm
Media weight (tray 1)	60 - 163 g/sm2
Paper tray media types	Card stock, Envelopes, Plain paper, Transparencies
Non-ISO print media sizes	Folio (media size), Letter (media size)
ISO A-series sizes (A0...A9)	A4, A5
Maximum ISO A-series paper size	A4
Network ready	No
Power requirements	110 - 220 V, 50/60 Hz
Compatible operating systems	Windows 2000/XP/Vista Mac OS 10.3 - 10.4 Linux: Redhat 7.1 Mandrake 8.0 SuSE 7.1 Caldera Open Linux 3.1 Turbo Linux 7.0 Slackware 8.1
Acoustic power emissions (active, print, copy or scan)	34/56 dB
Sustainability certificates	ENERGY STAR
Power consumption (standby)	17 W
Power consumption (printing)	300 W
Display	-
Certification	FCC, CE, CB
Operating temperature (T-T)	10 - 32 °C
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Dimensions (WxDxH)	390 x 344 x 265 mm
