Xerox Phaser 6110 Service Documentation

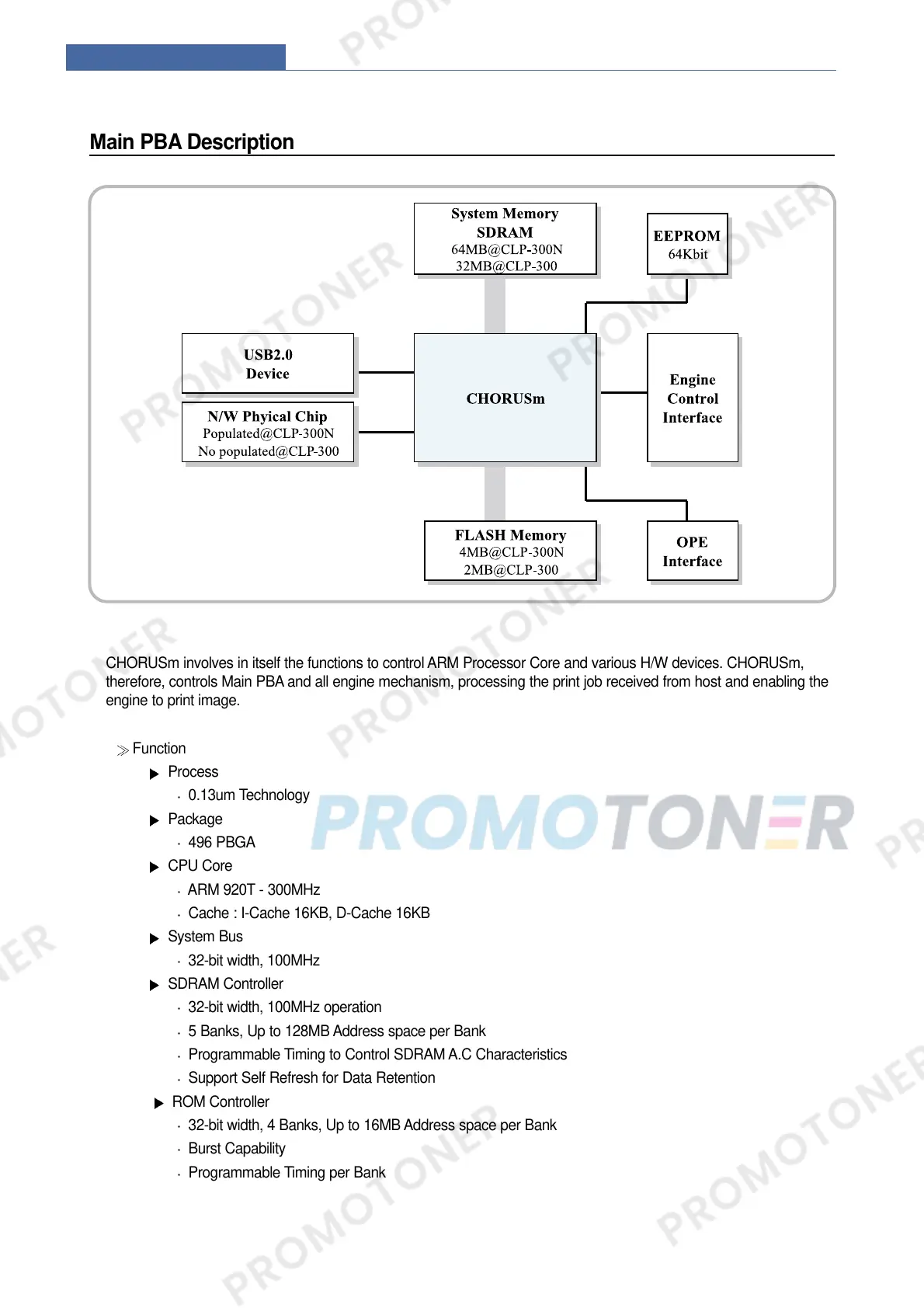

CHORUSm involves in itself the functions to control ARM Processor Core and various H/W devices. CHORUSm,
therefore, controls Main PBA and all engine mechanism, processing the print job received from host and enabling the
engine to print image.
Function
Process
0.13um Technology
Package
496 PBGA
CPU Core
ARM 920T - 300MHz
Cache : I-Cache 16KB, D-Cache 16KB
System Bus
32-bit width, 100MHz
SDRAM Controller
32-bit width, 100MHz operation
5 Banks, Up to 128MB Address space per Bank
Programmable Timing to Control SDRAM A.C Characteristics
Support Self Refresh for Data Retention
ROM Controller
32-bit width, 4 Banks, Up to 16MB Address space per Bank
Burst Capability
Programmable Timing per Bank
Main PBA Description

Xerox Phaser 6110 Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	2400 x 600 DPI
Time to first page (black, normal)	14 s
Time to first page (color, normal)	26 s
Print speed (black, normal quality, A4/US Letter)	17 ppm
Print speed (color, normal quality, A4/US Letter)	4 ppm
Internal memory	32 MB
Maximum internal memory	- MB
Sound power level (standby)	26 dB
Sound pressure level (printing)	47 dB
Total input capacity	150 sheets
Total output capacity	100 sheets
Maximum duty cycle	24200 pages per month
Maximum print size	216 x 356 mm
Media weight (tray 1)	60 - 163 g/sm2
Paper tray media types	Card stock, Envelopes, Plain paper, Transparencies
Non-ISO print media sizes	Folio (media size), Letter (media size)
ISO A-series sizes (A0...A9)	A4, A5
Maximum ISO A-series paper size	A4
Network ready	No
Power requirements	110 - 220 V, 50/60 Hz
Compatible operating systems	Windows 2000/XP/Vista Mac OS 10.3 - 10.4 Linux: Redhat 7.1 Mandrake 8.0 SuSE 7.1 Caldera Open Linux 3.1 Turbo Linux 7.0 Slackware 8.1
Acoustic power emissions (active, print, copy or scan)	34/56 dB
Sustainability certificates	ENERGY STAR
Power consumption (standby)	17 W
Power consumption (printing)	300 W
Display	-
Certification	FCC, CE, CB
Operating temperature (T-T)	10 - 32 °C
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Dimensions (WxDxH)	390 x 344 x 265 mm
